Farr KT5500 - Cage Plate Assembly

KT5500 5-
1
/
2
” Tong & CLInCHER® BaCKup
SECTIon ConTEnTS
5.17
TECHnICaL ManuaL

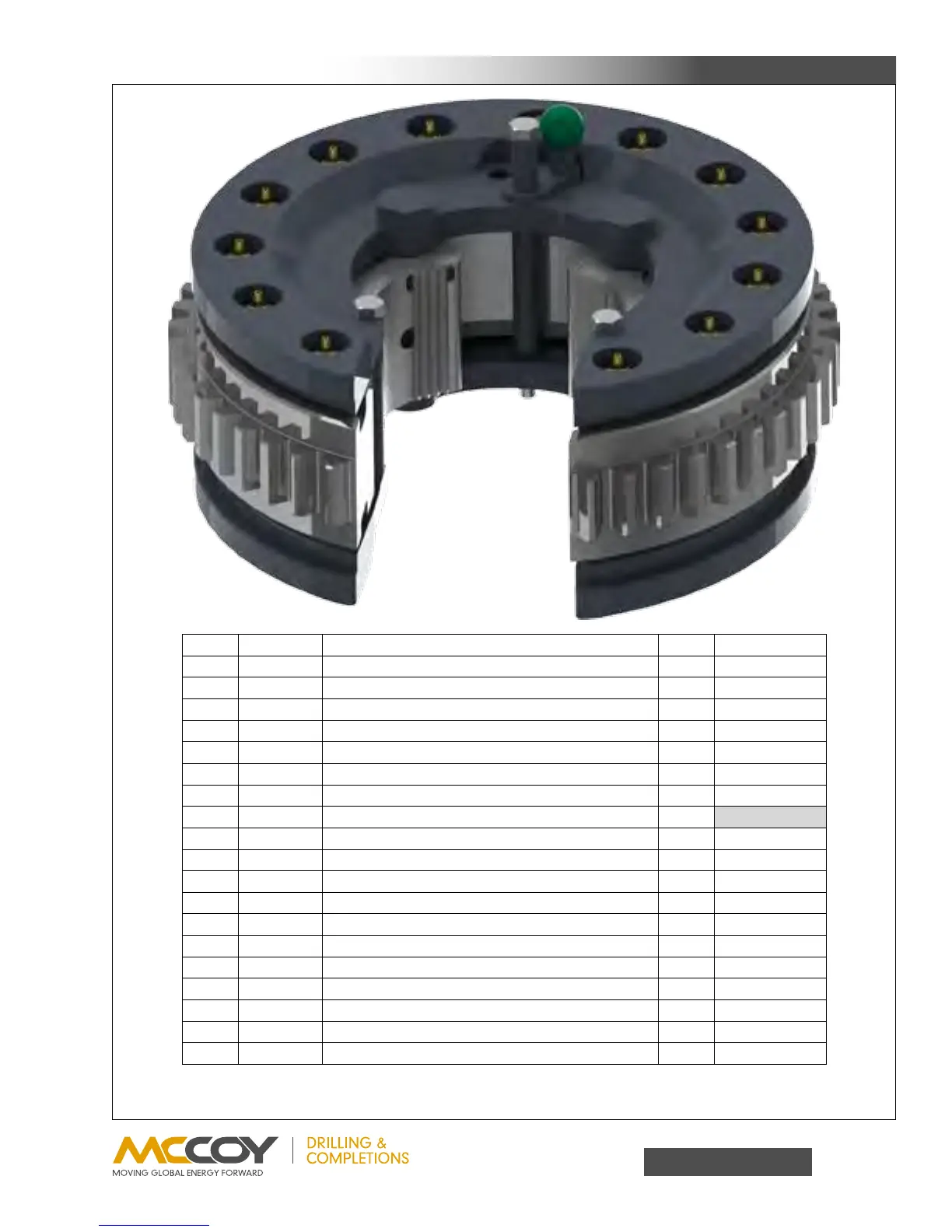

CagEpLaTE aSSEMBLy
Item Type Description Qty PartNumber
A Part 1/2”UNCx8”HexBolt 1 09-1198
B Part 1/2”NarrowFlatWasher 1 09-5119
C Part BackingPinSpacer 1 101-4093
D Part JawPivotBolt 2 1064-28
E Part 1/2”NCx6”HexBolt 2 09-1190
F Part TopCagePlate 1 1400-21
G Part CagePlateSpacer 3 1064-38
H Assembly JawAssembly(5-1/2”shown-seePp.2.12) 2
J Part RotaryGear 1 1064-D1
K Part BottomCagePlate 1 1400-22
L Part 1/2”UNCThinNylockNut 3 09-5610S
M Part BackingPinKnob 1 02-0017
N Part 3/8”UNCx1-1/2”ThreadedDowelPin 1 101-4097
P Part BackingPinSpacer 1 101-4096
Q Part BackingPinRetainer 1 101-4095
R Part BackingPin 1 101-4094
S Part 1/8”NPTGreaseFitting 26 02-0005
T Part 5/8”UNFThinNylockNut 26 09-5915
U Part CamFollower 26 02-0016
