Farr KT5500 - Assembly of Front Housing; Assembly of Motor; Assembly of Rotor;Stator Cartridge; Assembly of Wheel Motor Front Housing

KT5500 5-
1
/
2
” Tong & CLInCHER® BaCKup
SECTIon ConTEnTS
7.13
TECHnICaL ManuaL
HyDRauLIC MoToR InfoRMaTIon
WARNING: RINEER RECOMMENDS FOLLOWING ALL STANDARD SHOP SAFETY PRACTICES SPECIFICALLY INCLUDING WEARING OF EYE PROTECTION.
25
26
27
28
29
30
31
32
8
1) Reverse the procedures
in steps 17, 16, 15, and 14
2) NOTE: Make sure that
the radiused edge of each
stator vane points to the
rotor and the radiused
edge of each rotor vane
points to the stator.
3) NOTE: Make sure
springs are seated in the
bottom of the spring pocket
in both the rotor and stator.
1) Press bearing onto shaft.
2) Install snap ring.
Press shaft and bearing
assembly into front
housing by pressing on the
outer race of bearing.
1) Place seal in seal plate.
2) Place seal plate o-ring
into groove in the front
housing.
3) Press seal plate into
front housing.
4) Install snap ring.
5) Proceed to step 30.
1) Install main body o-ring
into front housing.
2) Install ball checks into
front housing.
3) Place a small amount of
grease over ball checks
and o-ring.
4) Wipe off excess grease.
1) Place rot
or/stator
cartridge onto rear housing.
2) NOTE: Make sure
assembly marks from step 3
are lined up.
1) Install dowel pins into
rear housing.
2) Install ballchecks into
rear housings.
3) Install main body o-ring.
1) Reverse the procedures in
steps 8 thru 3.
2) Screw lock nut onto shaft
until all threads are engaged.
3) Tighten clamp screw until
lock nut turns with a slight
drag.
4) Tighten lock nut until
desired rolling drag of bearing
i
s obtained - see procedure
Page 9.
5) Tighten clamp screw
6) Tighten all seal plate bolts.

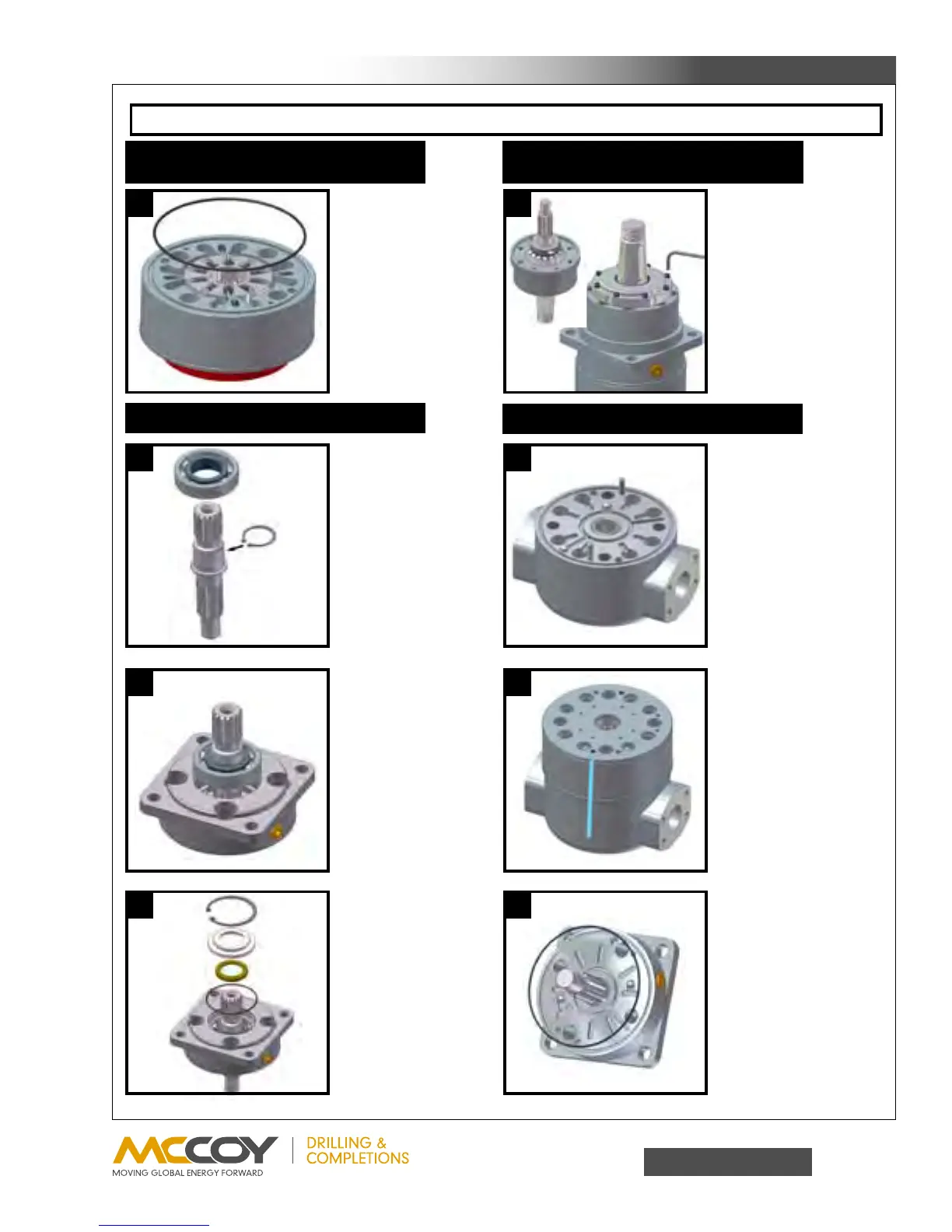

ASSEMBLY OF ROTOR/STATOR
CARTRIDGE
ASSEMBLY OF FRONT HOUSING
ASSEMBLY OF WHEEL MOTOR
FRONT HOUSING
ASSEMBLY OF MOTOR
