Farr KT5500 - Clutch Assembly

KT5500 5-
1
/
2
” Tong & CLInCHER® BaCKup
SECTIon ConTEnTS
5.13
TECHnICaL ManuaL
CLuTCH aSSEMBLy

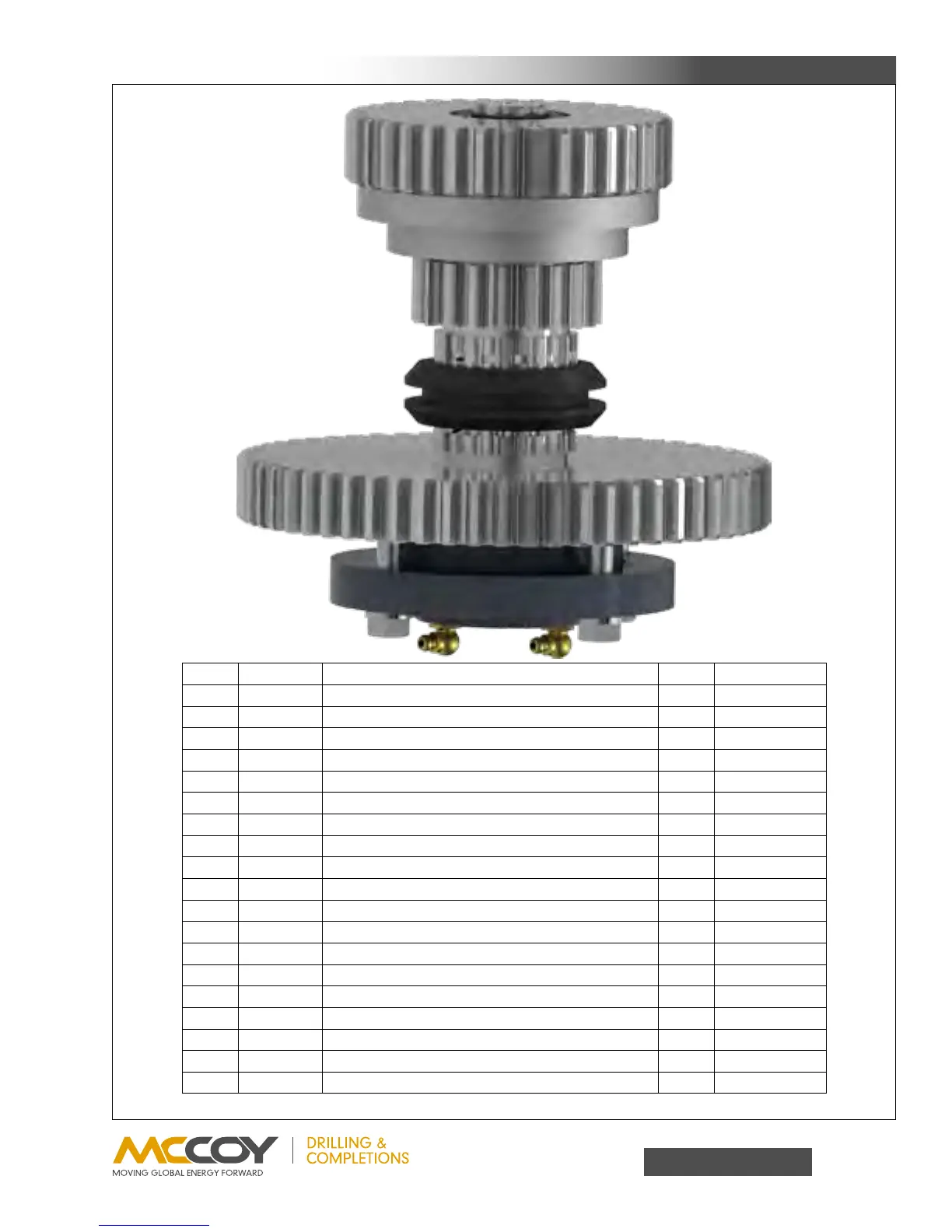

Item Type Description Qty PartNumber
A Part OutsideSnapRing 1 02-0001
B Part DriveShaft/ClutchGear 1 997-A3-61
C Part #10-24x3/4”HexSocketHeadCapScrew 2 09-0001
D Part TopClutchBearingRetainer 1 997-D11-59
E Part TopClutchBearingRetainerSpacer 1 1400-59A
F Part ClutchBearingBushing 1 997-60
G Part TopClutchBearing 1 02-0002
H Part LowClutchGear 1 997-A1-52
J Part NeedleBearing 4 02-0003
K Part ClutchShaft 1 997-A8-50
L Part ShiftingCollar 1 997-A9-62
M Part HighClutchGear 1 997-A1-51
N Part BottomClutchBearing 1 02-0004
P Part ClutchBearingCapSpacer 1 1400-54A
Q Part ClutchBearingCap 1 997-D11-54
R Part 3/8”CarbonSteelLockWasher 4 09-5106
S Part 3/8”UNCx1-1/4”HexBolt 4 09-1048
T Part GreaseFitting,1/8”NPT 1 02-0005
U Part GreaseFitting,1/8”NPTx90Degree 2 02-0093
