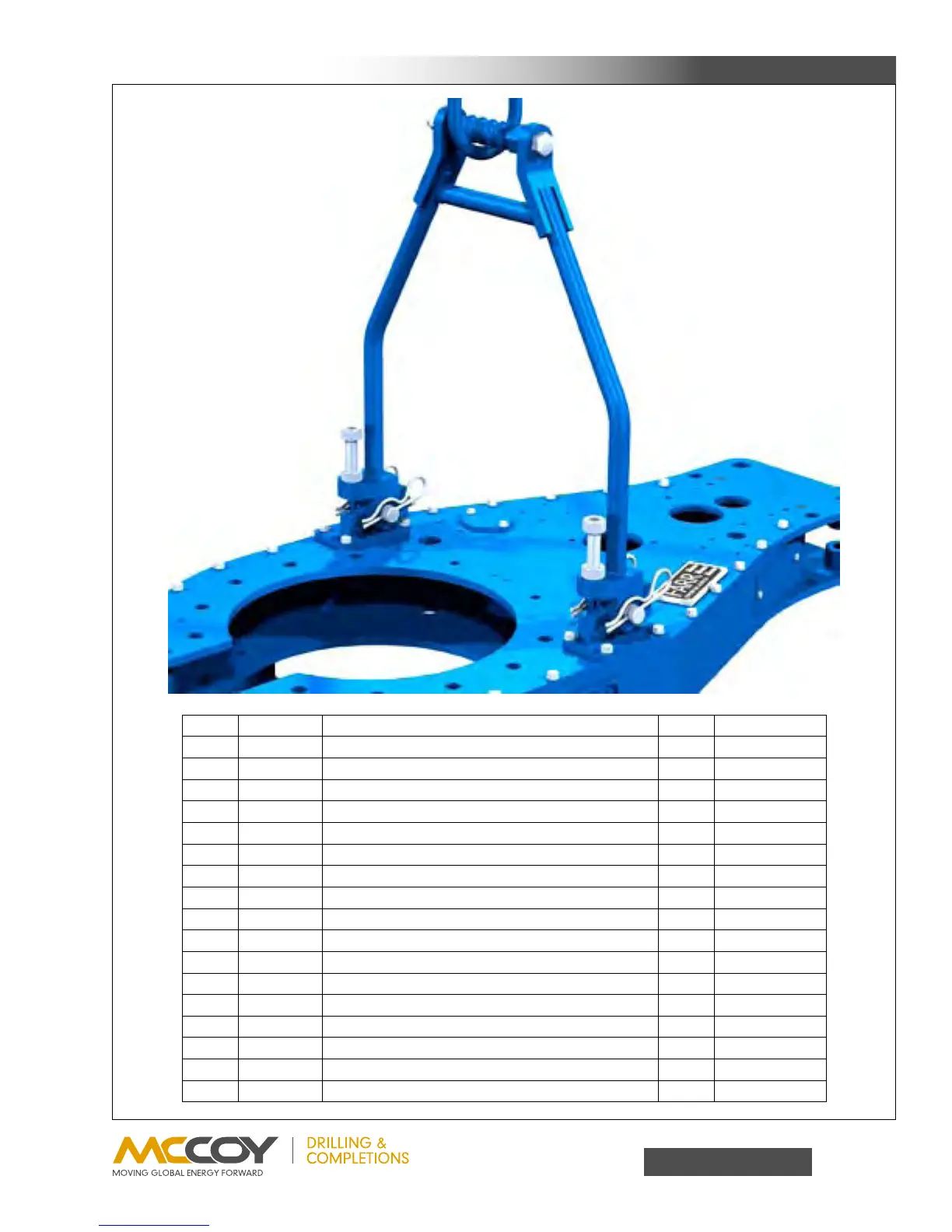

Farr KT5500 - Rigid Sling Assembly

KT5500 5-
1
/
2
” Tong & CLInCHER® BaCKup
SECTIon ConTEnTS
5.43
TECHnICaL ManuaL
RIgID SLIng aSSEMBLy
Item Type Description Qty Part Number
Assembly ChainSlingAssembly 1 101-2211
A Part 3/4”NCHexNut 3 09-5818
B Part LiftLink 1 02-0516
C Part AdjustingHelix 1 1053-1-H
D Part 3/4”NCx9”HexBolt 1 09-1322
E Weldment RigidSlingWeldment 1 101-0656
F Weldment LevelingBolt 2 1053-C-1L
G Part RigidSlingPin 2 1053-C-1C
H Part 3/8”NCx1”HexBolt 4 09-1170
J Part 3/8”CarbonSteelLockwasher 8 09-5106
K Weldment LHRigidSlingBracket 1 101-0150
Weldment RHRigidSlingBracket 1 101-0151
L Part HitchPin,1/4”x5” 4 09-9075
M Part 1/2”NCx1-1/4”HexBolt 2 09-1168
N Part 1/2”NCHexJamNut 2 09-5810
P Part RigidSlingAdjustmentBlock 2 101-0846
Q Part 3/8”NCx1-3/4”HexBolt 4 09-1557
