Farr KT5500 - Turn Counter Encoder Mount Exploded

KT5500 5-
1
/
2
” Tong & CLInCHER® BaCKup
SECTIon ConTEnTS
6.5
TECHnICaL ManuaL
ToRquE MEaSuREMEnT
Item Type Description Qty Part Number
Assembly StandardTurnCounterEncoderMount 1 60-0001
A Part 6-32x3/8”HexSocketHeadSetScrew 4
B Part HelicalFlexibleEncoderShaftCoupling 1 60-0130N
C Part InternalRetainerRing 2 1376 -13
D Part Bearing 2 1376-05
E Part EncoderHousing 1 1392-104A
F Part InternalRetainerRing 1 02-0436
G Part EncoderShaft 1 1392-103A-01
H Part EncoderGear 1 01-0320A-M
J Part 10-24x1-1/4”HexSocketHeadSetScrew 1

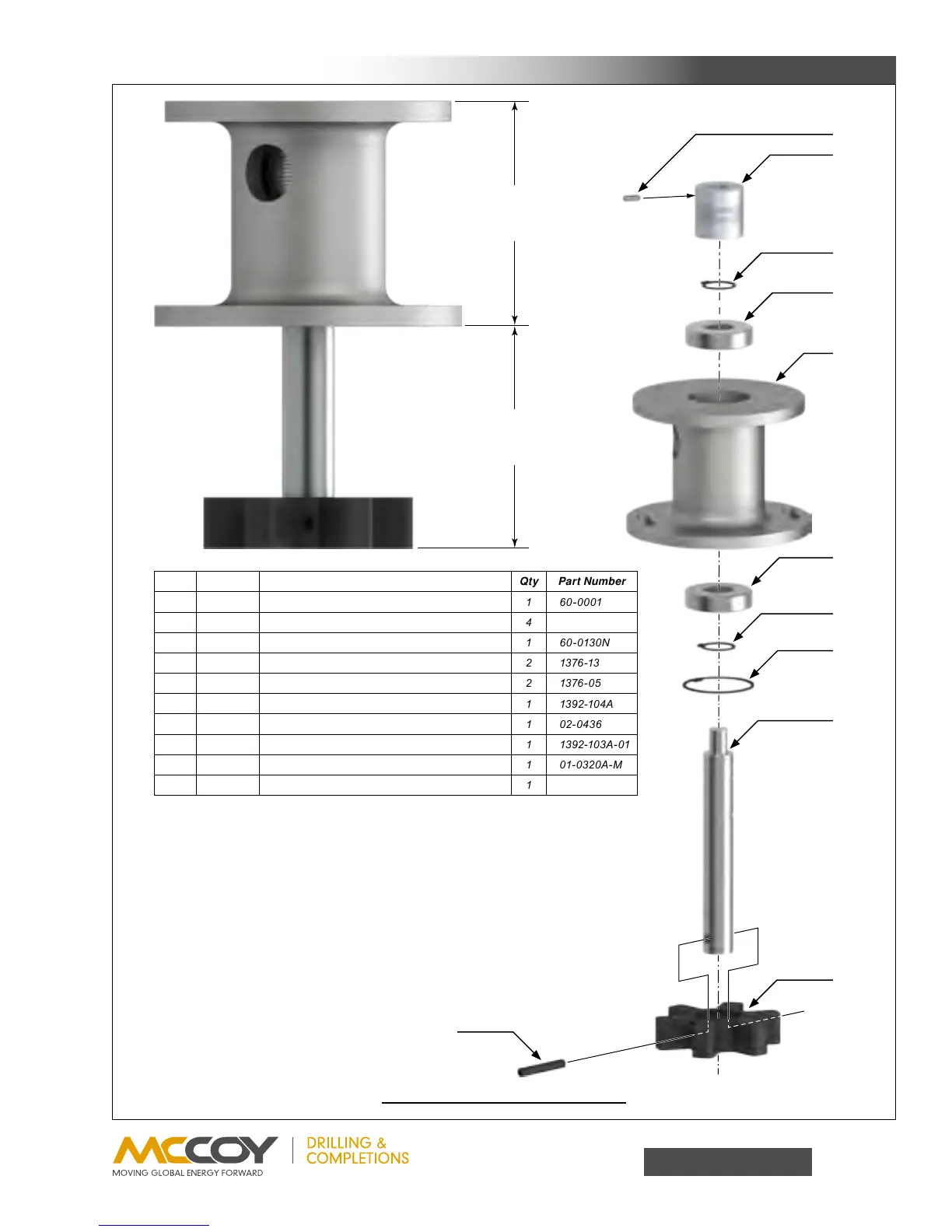

turn counter encoDer mount exploDeD
2.74”
2.75”
A
B
C
D
E
D
C
F
G
H
J
