Farr KT5500 - Compression Load Cell Exploded

KT5500 5-
1
/
2
” Tong & CLInCHER® BaCKup
SECTIon ConTEnTS
6.4
TECHnICaL ManuaL
ToRquE MEaSuREMEnT
Item Type Description Qty Part Number
Assembly CompressionLoadCell,8in
2
1 10-0008C
A Part 5/16”UNCx1”HexSocketHeadCapScrew 1 09-2026
B Part LoadPlate 1 E360-A
C Part 5/16”UNCx3/4”HexSocketHeadCapScrew 6 09-2024
D Part RetainerRing 1 E360-8
E Part Diaphragm 1 E358-2
F Part DiaphragmCasing 1 E360-C
G Part StreetElbow 1
H Part 1/4”NPTBrassPlug 1
This is the standard hydraulic com-
pression load cell supplied by McCoy
Drilling & Completions | Farr. Contact
our sales department for information
about optional application-specific
compression load cells.
Electronic compression load cells are
used for some WinCatt
™ applications.

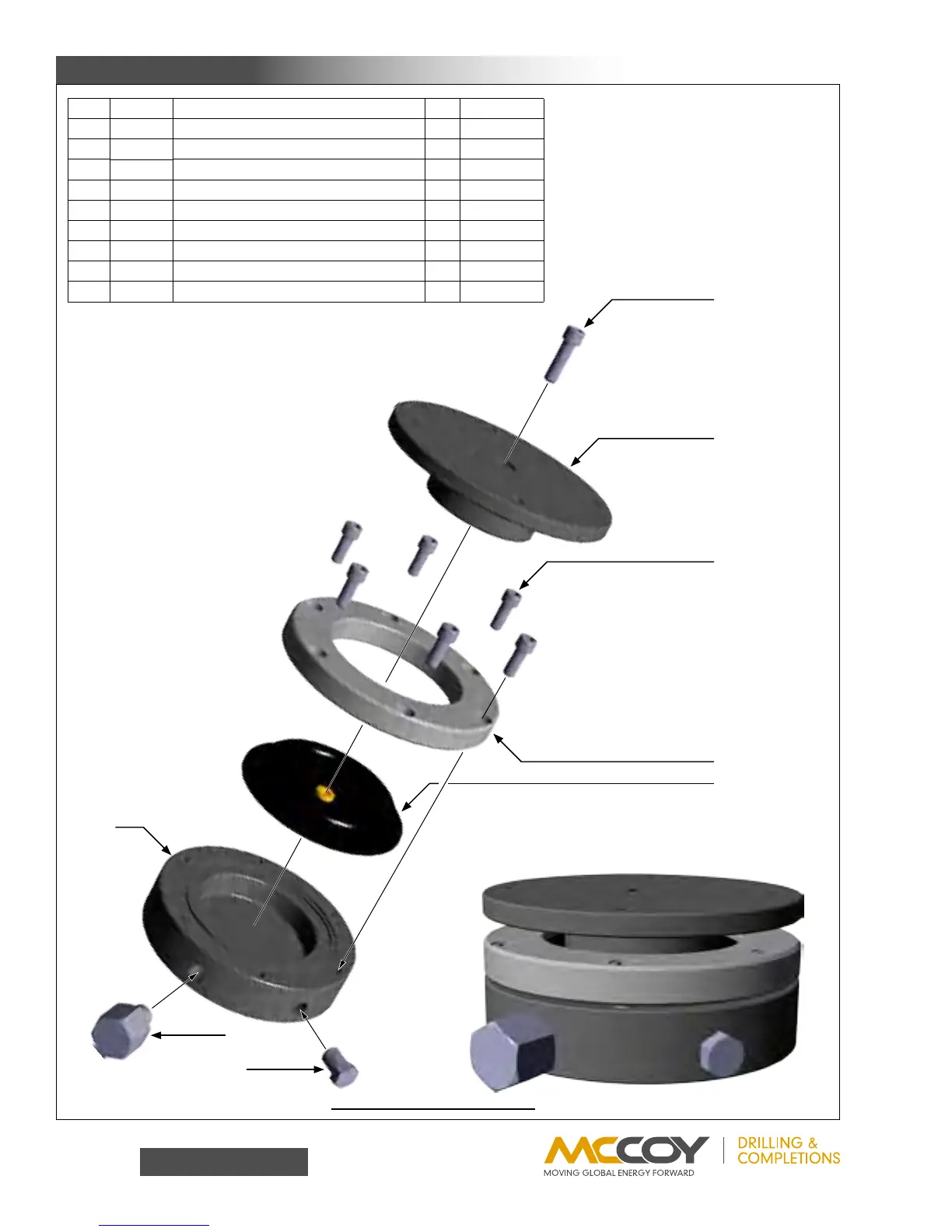

compression loAD cell exploDeD
A
B
C
D
E
F
G
H
