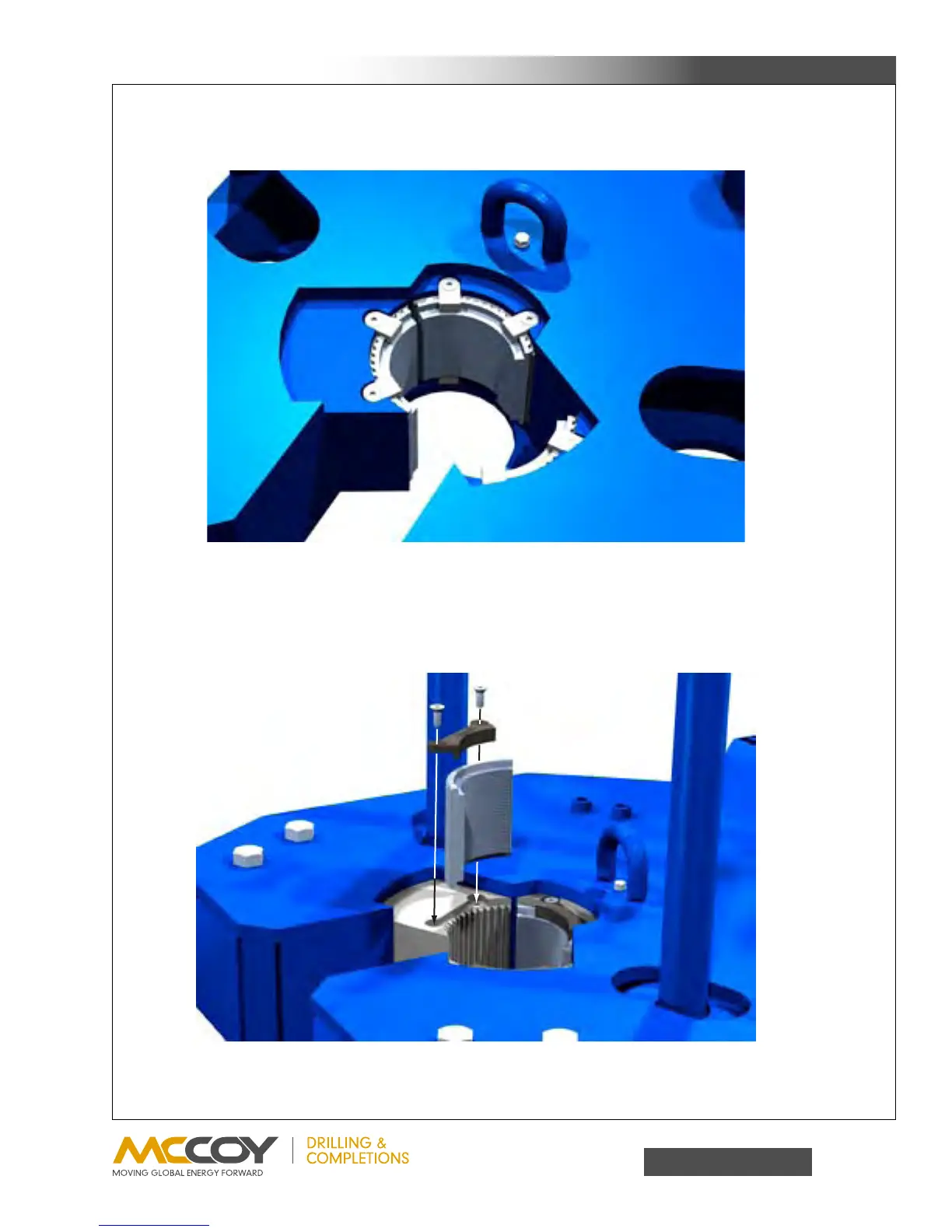

4. CLINCHER® Backup Jaw Removal/Installation
i. Extend CLINCHER® cylinders enough so that the hex flat-head cap screws securing the die retainer tabs are well
exposed.Turnoffhydraulicpower.
ii. Removethetwohexflat-headcapscrewssecuringthedieretainertabonthetopoftheCLINCHER®die.
iii. Removethetopdieretainertabs.
iv. Slidethediestraightup,andremove.
