Farr KT5500 - Page 105

KT5500 5-
1
/
2
” Tong & CLInCHER® BaCKup
SECTIon ConTEnTS
5.29
TECHnICaL ManuaL

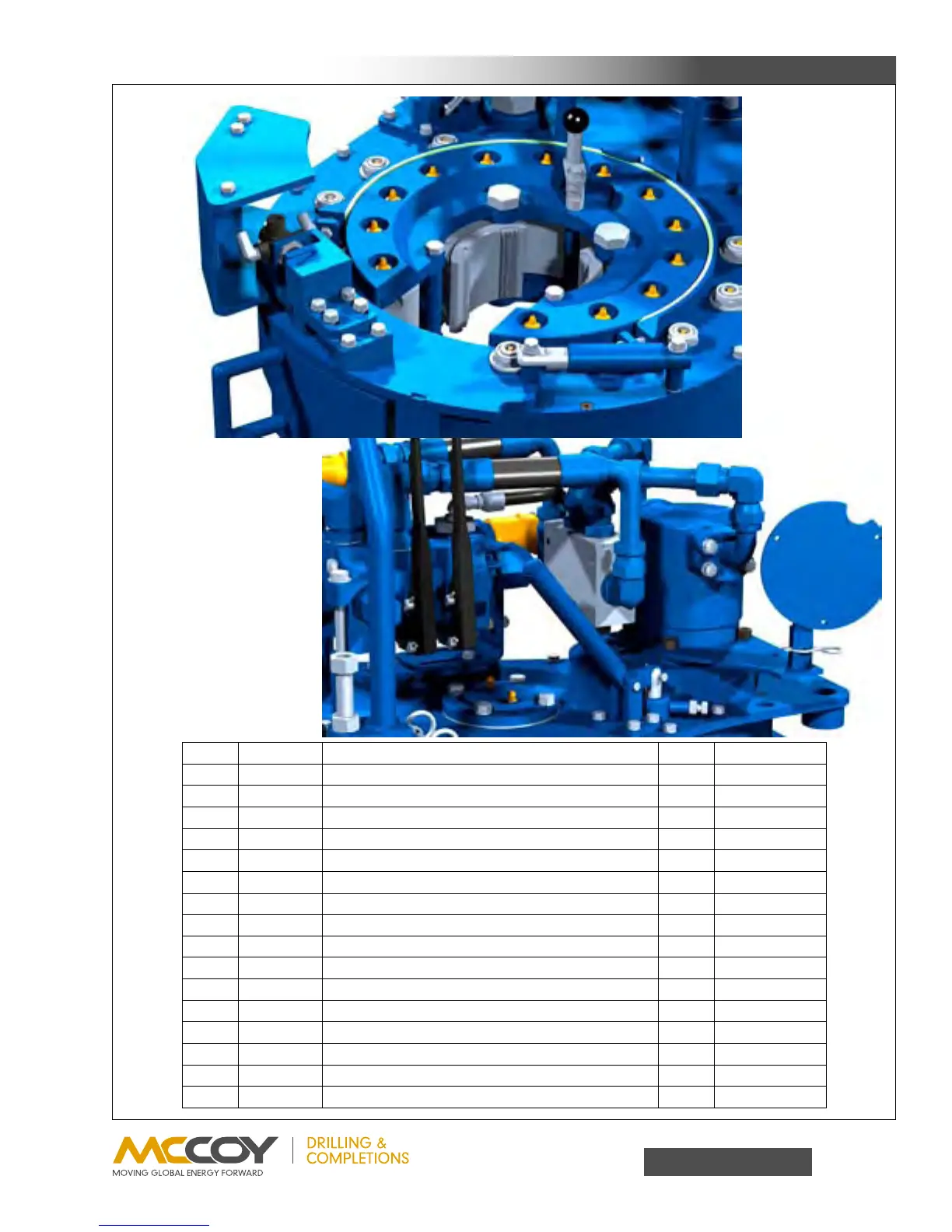

SafETy DooR aSSEMBLy
Item Type Description Qty PartNumber
A Part 3/8”NCx3/4”HexBolt 4 09-1044
B Part SwitchGuardTopPlate 1 101-1480
C Part 3/8”NCx2-1/4”HexBolt 3 09-1055
D Part 3/8”CarbonSteelLockWasher 9 09-5106
E Part SafetyDoorLatchBlock 1 101-1104
F Part 15/16”ValveLockNut 1 09-0278
G Part SafetyDoorLatchBlock 1 101-1103
H Part SafetyDoorLatchPlate 1 101-1105
J Part 3/8”NCx1-1/2”HexBolt 2 09-1553
K Part 3/8”NCx1-1/2”FlatHeadCountersunkCapScrew 2 09-4050
L Part SafetyDoorLatchBlock 1 101-0914
M Part LoadPlunger 1 AE12-306
N Part 1/4inchNPT-JIC90degreeelbow 3 08-0284
P Part DeltrolGaugeIsolatorValveG121S 1 08-0337M
Q Weldment SafetyDoorSwitchGuardWeldment 1 101-1481
R Part 3/8”NCx7/8”FlatHeadCountersunkCapScrew 3
