Farr KT5500 - Page 111

KT5500 5-
1
/
2
” Tong & CLInCHER® BaCKup
SECTIon ConTEnTS
5.35
TECHnICaL ManuaL
Item Type Description Qty Part Number
A Part RearBodyPlate 1 1391-7-3
B Part 1-1/4”UNCHexNut 3 09-5832
C Part 1-1/4”UNCx8”ThreadedRod 1 101-1993
D Part SuspensionSpringV-Bracket 1 1483-500-00-04
E Part SuspensionSpringRetainer 2 1483-500-00-4B
F Part 3/8”UNCx1-1/2”HexBolt 1 09-1050
G Part 3/8”CarbonSteelLockWasher 21 09-5106
H Part 1”UNCx8-1/2”HexBolt 4 09-0287
J Weldment BackupBodyWeldment 1 1483-500-00
K Part RearJaw 1 1403-08
L Part Rear-SideCoverPlate 2 1483-500-00-02
M Part 3/8”UNCx3/4”HexBolt 20 09-1044
N Part SideCoverPlate 2 1483-500-00-01
P Assembly CLINCHER®CylinderAssembly 2 1403-00-00B
Q Part 1”UNCNylockNut 4 09-5725
R Weldment GaugeProtectorWeldment 1 1483-500 -18
Part ReliefValveBody 1 08 -1180
Part ReliefValveCartridge 1 08-0481

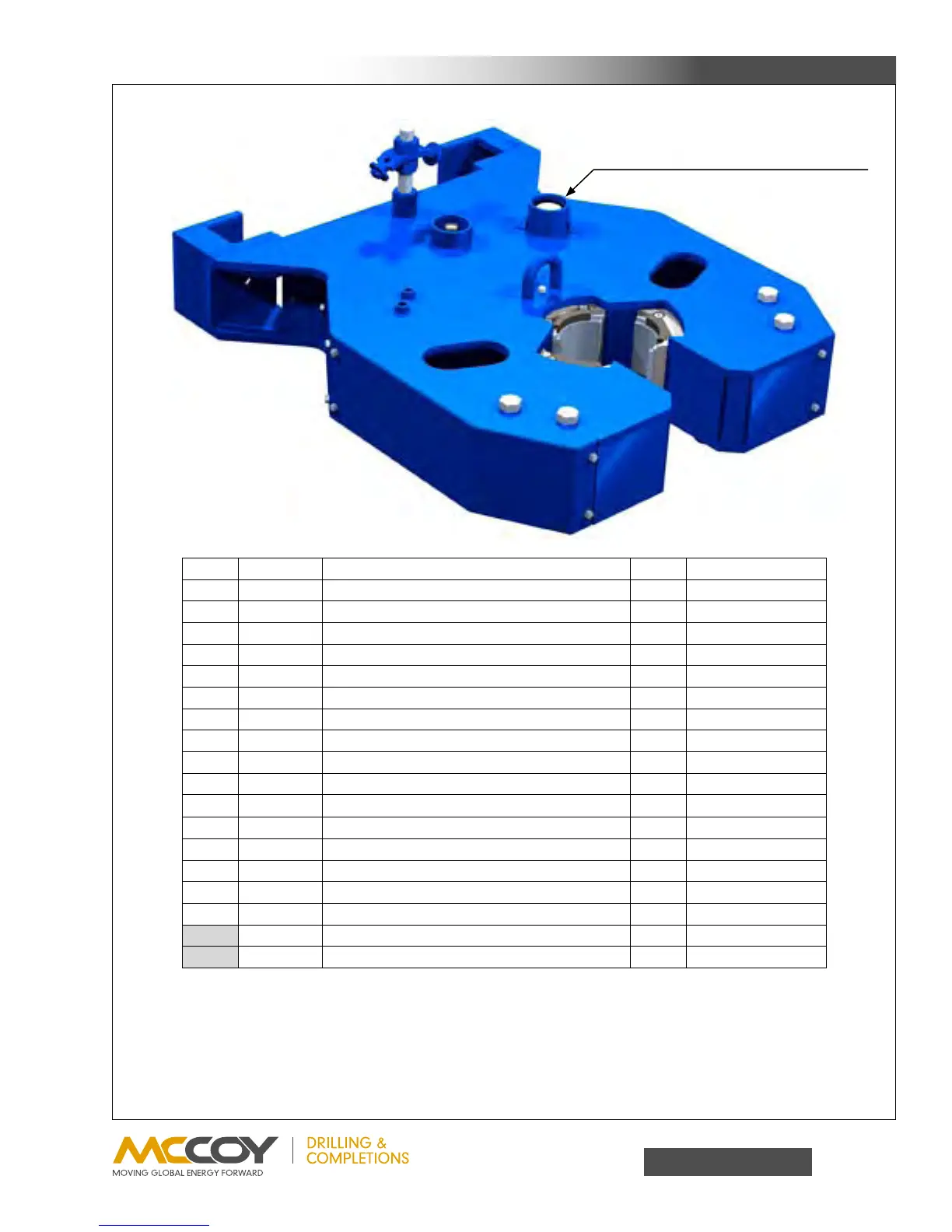

BaCKup BoDy aSSEMBLy - TEnSIon LC ConfIg
R
