Farr KT5500 - Page 113

KT5500 5-
1
/
2
” Tong & CLInCHER® BaCKup
SECTIon ConTEnTS
5.37
TECHnICaL ManuaL

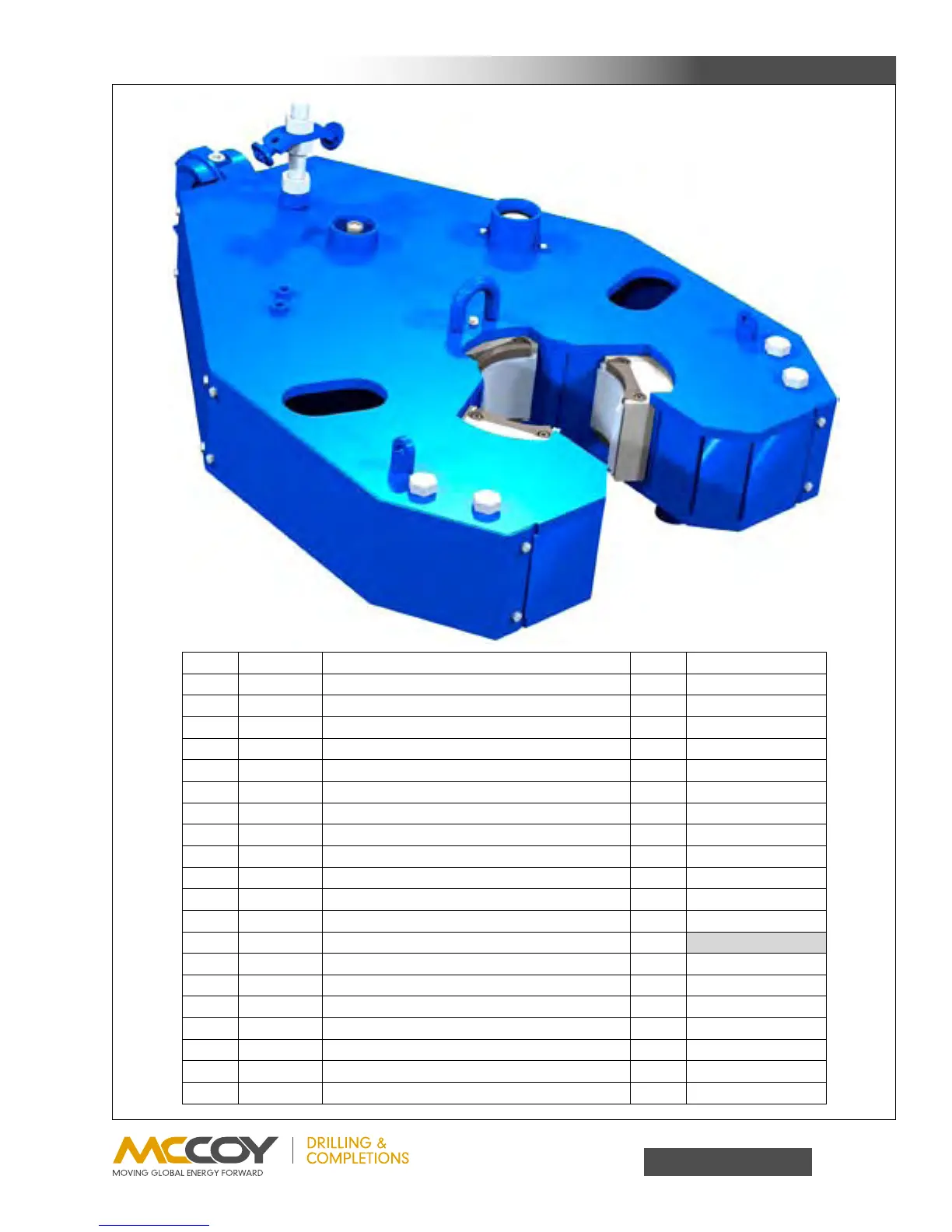

BaCKup BoDy aSSEMBLy - CoMpRESSIon LC ConfIg
Item Type Description Qty Part Number
A Weldment LoadCellHolderWeldment 1 01- 9116 D
B Part 3/8”RegularFlatWasher 1 09-5006
C Part 3/8”NCx1-1/4”HexBolt 1 09-1048
D Part 1-1/4”NCHexNut 3 09-5832
E Part SuspensionSpringV-Bracket 1 1483-500-00-04
F Part SuspensionSpringRetainer 2 1483-500-00-4B
G Part 1-1/4”NCx8”ThreadedRod 1 101-1993
H Part 1/4”NCx3/4”HexBolt 2 09-1005
J Part 2-1/2”Face0-3000PSI1/4”NPTGauge 1 02-0246
K Weldment GaugeProtectorWeldment 1 1483-500-18
L Part 3/8”NCx1-1/2”HexBolt 1 09-1050
M Part 3/8”CarbonSteelLockwasher 17 09-5106
N Part 1”NCx8-1/2”HexBolt 4
P Part RearJaw 1 1403- 08
Q Part Rear-SideCoverPlate 2 1421-500 -11B
R Part 3/8”NCx3/4”HexBolt 16 09-1044
S Part SideCoverPlate 2 1421- 500 -11
T Assembly CLINCHER®CylinderAssembly 2 1403-00-00B
U Part 1”NCNylockNut 4 09-5725
V Weldment BackupBodyWeldment 1 1421-500
