use counterbalance valves. cavities, same flow path for a given
frame size). However, cartridge
extension dimensions from the
mounting surface may vary.
Stainless steel cartridge options P or W
are intended for use within corrosive
environments with all external
components manufactured in stainless
steel or titanium. Internal working
components remain the same as the
standard valves.
Incorporates the Sun floating style
construction to eliminate the effects of
internal parts binding due to excessive
installation torque and/or
cavity/cartridge machining variations.

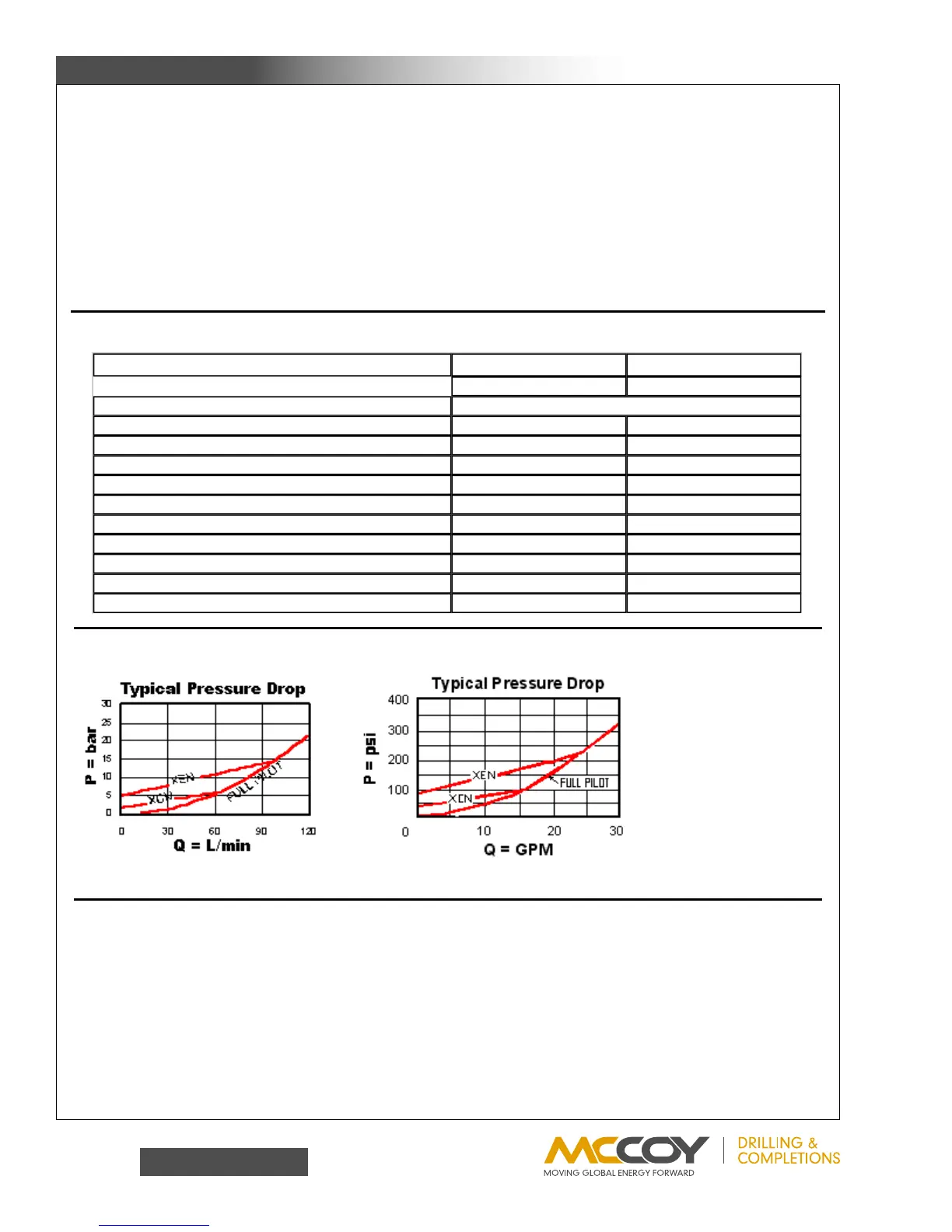

Technical Data
U.S. Units Metric Units
Cavity
T-2A
Capacity
30 gpm 120 L/min.
Pilot Ratio
3:1 3:1
Maximum Operating Pressure
5000 psi 350 bar
Maximum Valve Leakage at 110 SUS (24 cSt)
1 drops/min. 0,07 cc/min.
Series (from Cavity)
2
Valve Hex Size
1 1/8 in. 28,6 mm
Valve Installation Torque
45 - 50 lbf ft 60 - 70 Nm
Model Weight
.50 lb 0,25 kg
Seal Kits
Buna: 990-202-007
Seal Kits
Viton: 990-202-006
Option Selection
CKEB-X C N
Preferred Options
Control Cracking Pressure
External
Material/Seal
Material
X Standard Pilot C 30 psi (2 bar) N Buna-N
