” Tong & CLInCHER® BaCKup
SECTIon ConTEnTS
5.3
TECHnICaL ManuaL

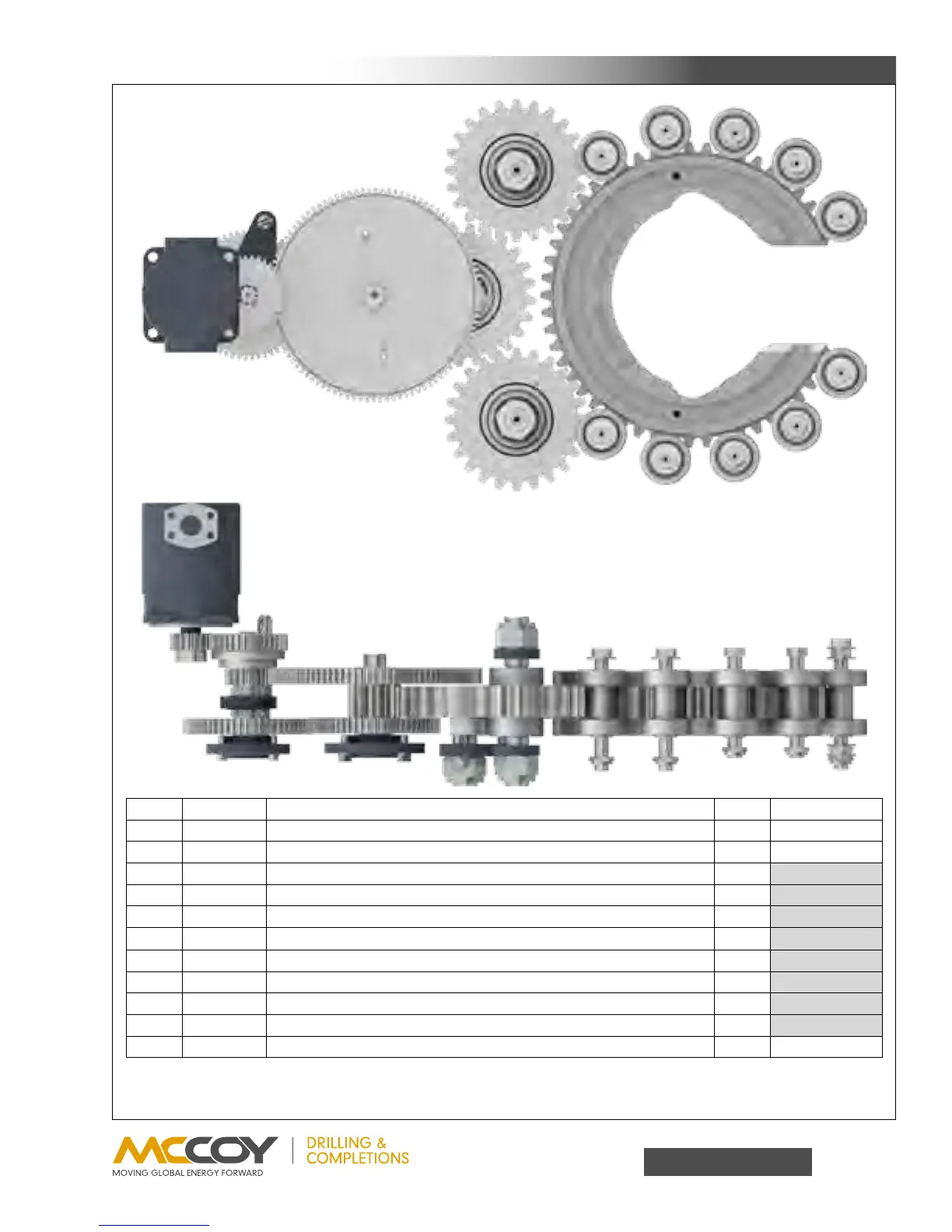

gEaR TRaIn LayouT
Item Type Description Qty PartNumber
A Part HydraulicMotor 1 87-0110
B Part MotorGear 1 997-A10-149
C Assembly ClutchAssembly(Pp.5.14-5.15) 1
D Assembly RotaryIdlerAssembly(Pp.5.8-5.9) 2
E Assembly SupportRoller,ExtendedShaftForFrontLegMount(Pp.5.4-5.5) 4
F Assembly SupportRoller,ExtendedShaftForFrontLegMount(Pp.5.4-5.5) 5
G Assembly ShifterShaftAssembly(Pp.5.16-5.17) 1
H Assembly PinionAssembly(Pp.5.12-5.13) 1
J Assembly PinionIdlerAssembly(Pp.5.10-5.11) 1
K Assembly DoorPivotSupportRoller(Pp.5.6-5.7) 1
L Part RotaryGear 1 1064-D1
