Farr KT5500 - Page 85

KT5500 5-
1
/
2
” Tong & CLInCHER® BaCKup
SECTIon ConTEnTS
5.9
TECHnICaL ManuaL
pInIon IDLER aSSEMBLy

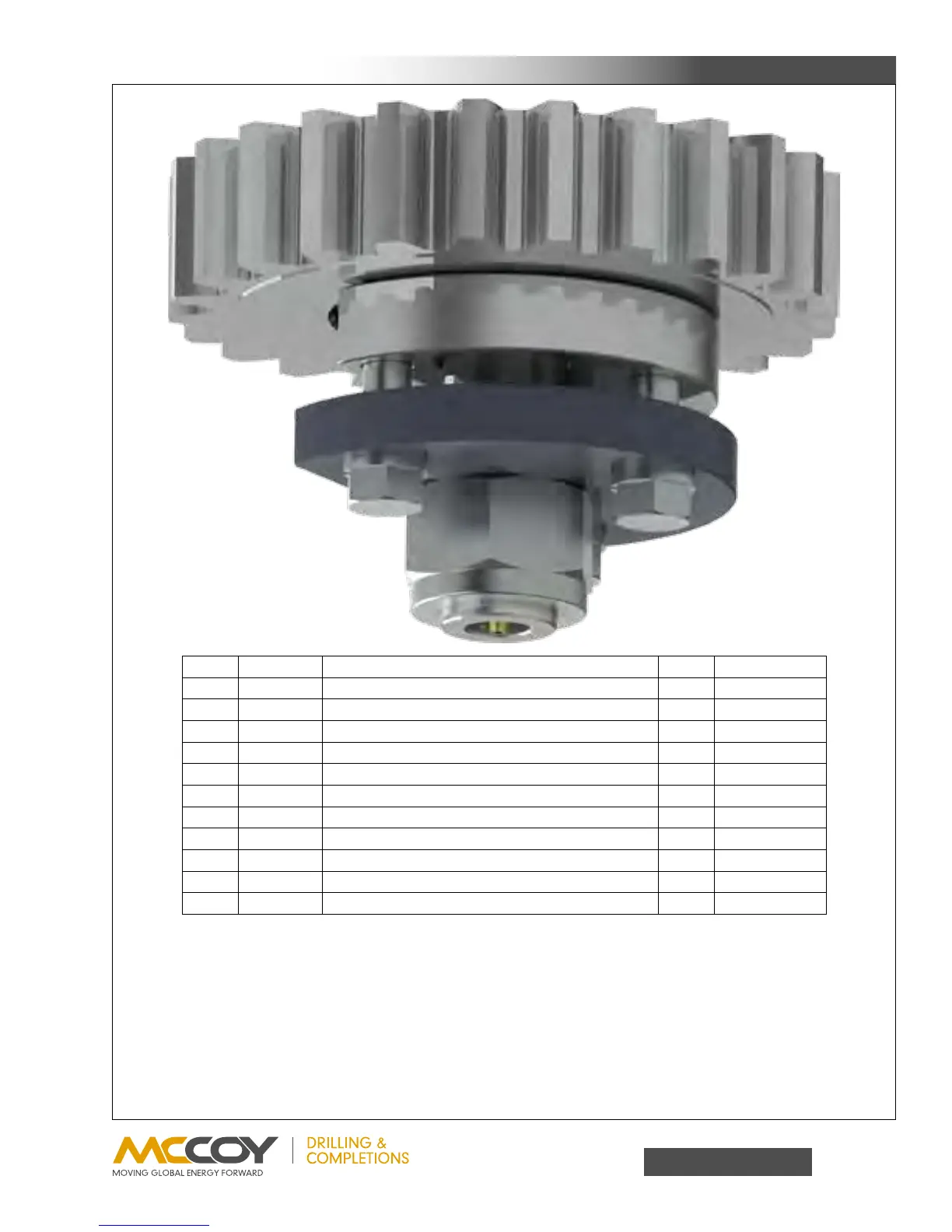

Item Type Description Qty Part Number
A Part IdlerBearingRetainer 1 02-0008
B Part BearingSeal 1 02-0010
C Part RetainerRing 2 02-0009
D Part IdlerGear 1 997-A2-119
E Part IdlerBearing 1 02-0011
F Part IdlerHalfShaft 1 997-D17-105
G Part PinionIdlerPad 1 1400-109
H Part 5/8”CarbonSteelLockWasher 3 09-5114
J Part 5/8”UNCx2-1/4”HexBolt 3 09-1235
K Part 1-1/2”UNFNylockNut 1 09-5740
L Part GreaseFitting,1/8”NPT 1 02-0005
