Leveling blade (Optional)
The leveling blade should only be used to push, spread or level
the material. This blade rests upon the sliding pads to avoid
excavation of the compacted layer.
NOTE: The blade equipped on the roller is not the dozer kind.
Leveling blade operation (Optional)
The leveling blade control lever – joystick (1) has four stages:
LIFT: move the lever backwards
RETAIN: release the lever in any stage
LOWER: move the lever forward
FLUCTUATE: move the lever completely
forward
If the lever is released on the stage “Lift” or “Lower” it will always
return to the stage “Retain”.
If the lever is released in the “Fluctuate” stage, it will not return
to the “Retain” stage.

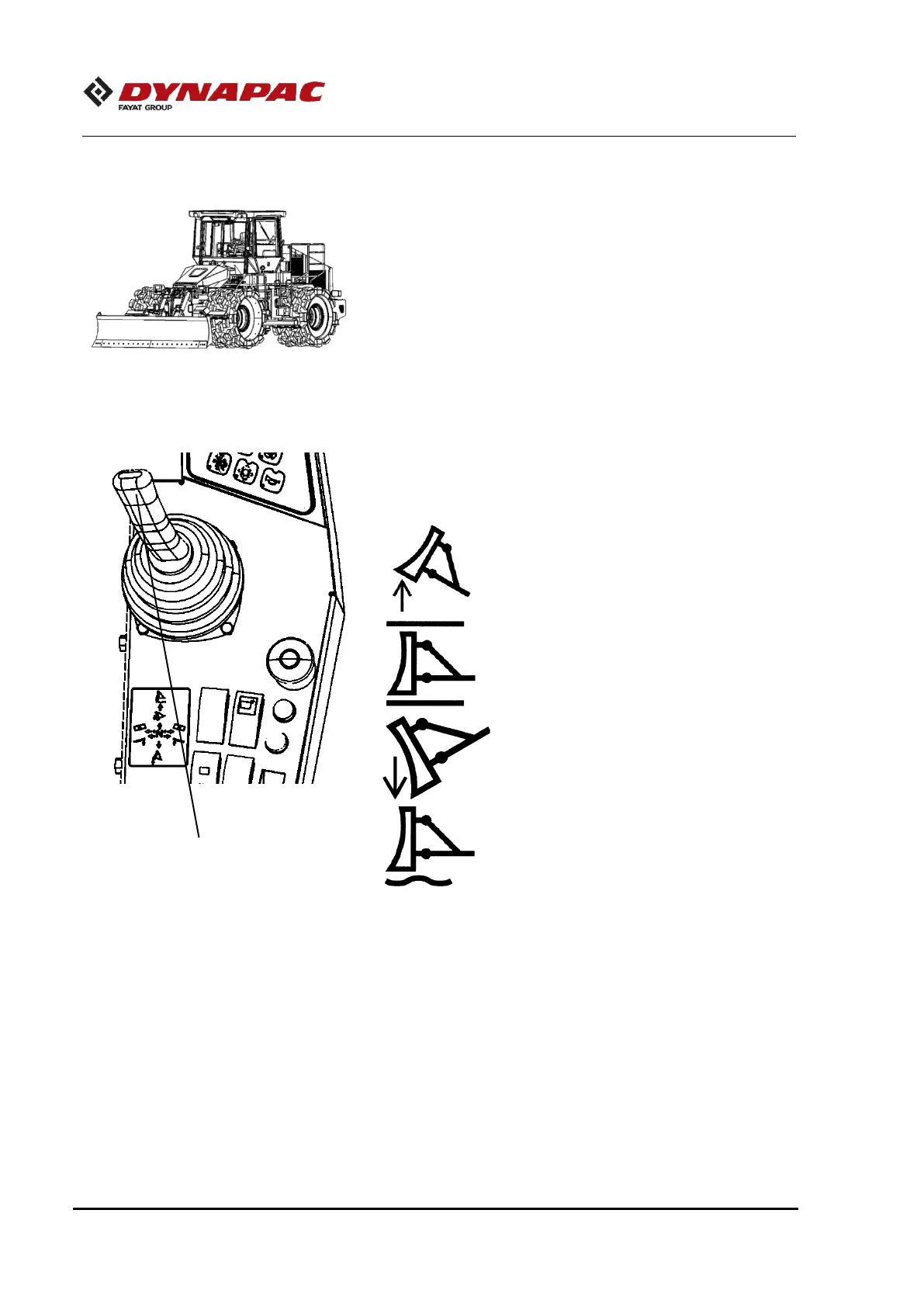

Fig. - Tamping roller with leveling blade
Fig. – Leveling blade control lever
