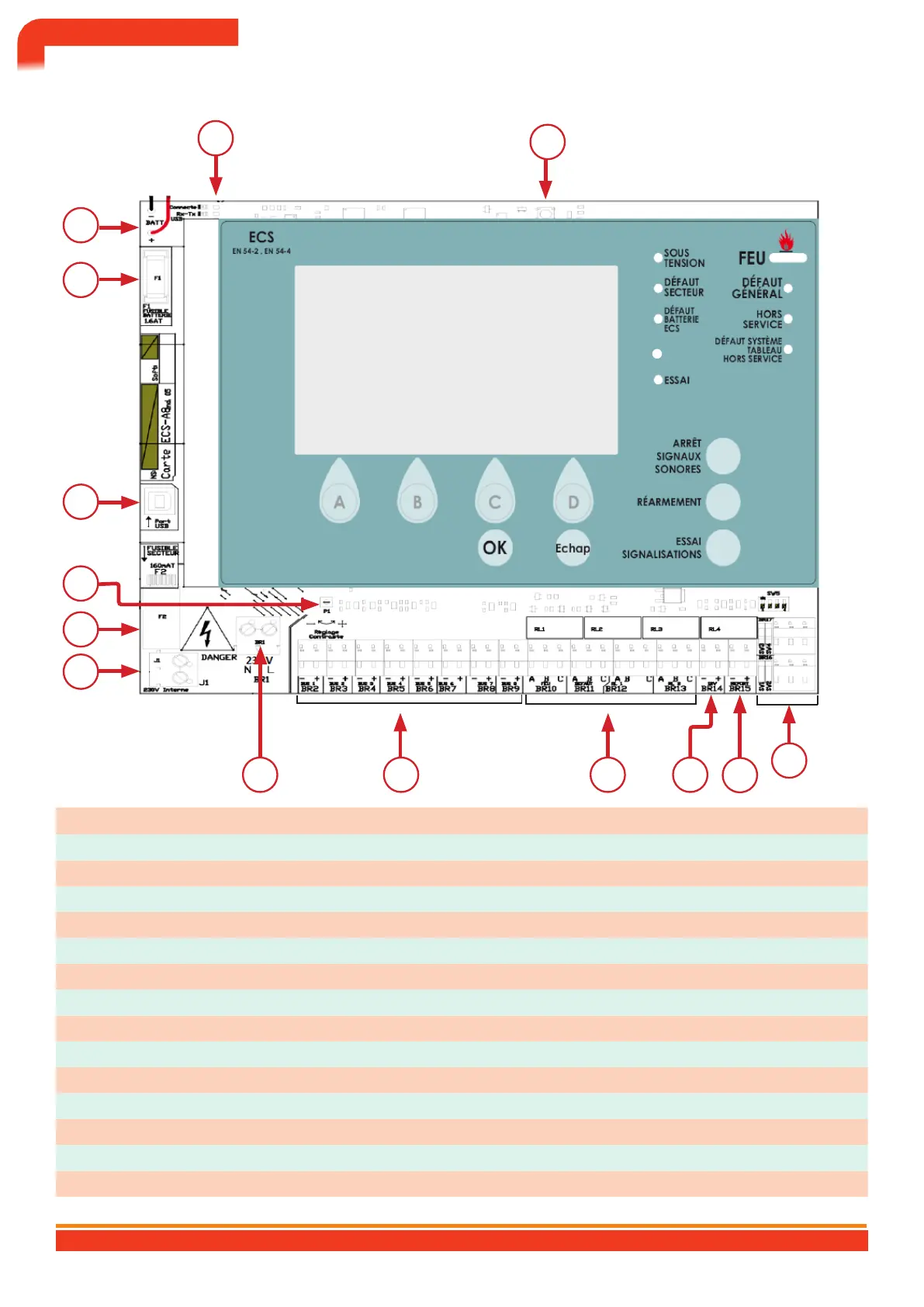

Inside
view
13
14
12
11
DEFAULT
BATTERY
GISC
10
9
8
7
6
1 2 3 4
5
No. Designation
1 Main
power wiring terminal block
2 Fire Detection
Bus Wiring Terminal Blocks
3 FIRE,
Fault, Programmable1 & Programmable2 Relay Output Terminal Blocks
4 User 12V output terminal
block
5 Report
output terminal block
6 RS232,
RS485 communication & panel programming terminal block
7 Mains
output terminal block for UGA main power board (TR-UP)
8 Main
power protection fuse (160 mA slow)
9 LCD
Display Contrast Adjustment
10 USB
connector for board programming
11 Secondary
power (battery) protection fuse (1.6 AT)
12 DHW
secondary power supply Battery wires
13 USB
communications LED
14 RESET
button
CONTROL
AND SIGNALING EQUIPMENT 512 POINTS BALTIC 512 TYPE A WALL OR RACK BOX
