Finsecur Baltic 512 TYPE A - Aviso-LCD ECS;CMSI TRE Wiring Diagram

01-ECMSI-NT002.Rev B40
AVISO-LCD ECS/CMSI report wiring
Features
BELOW
TENSION
FIRE
→ 32 reports (ref: AVISO-LCD) maximum
→ Length: 1000m max
→ Cable type: 1 pair 8/10thmin (without screen)
→ Category (cable): C2
ALARM
LOCAL AREA
NEIGHBORING AREA
U
G
AT
EVACUATION
DEFAULT
GENERAL
RESTRICTED WATCH
ESSAY
SECURITY
DEFAULT
OUT OF ORDER
VS
M
S
ERR FAULT
DEFAULT
FEED
I
Functioning
STOP
SIGNALS
SOUND
→ Return to the LCD display information such as
• Zone fire alarm, points
• Faults
• Decommissioning
• Identification of addresses by label
AT B VS D
OK
Esc
ESSAY
SIGNALS
→ Individual programming of each AVISO-LCD
ECS/CMSI using the Baltic PC configurator.
ICannot be combined with the Aviso -E ECS/CMSI on
the same line.

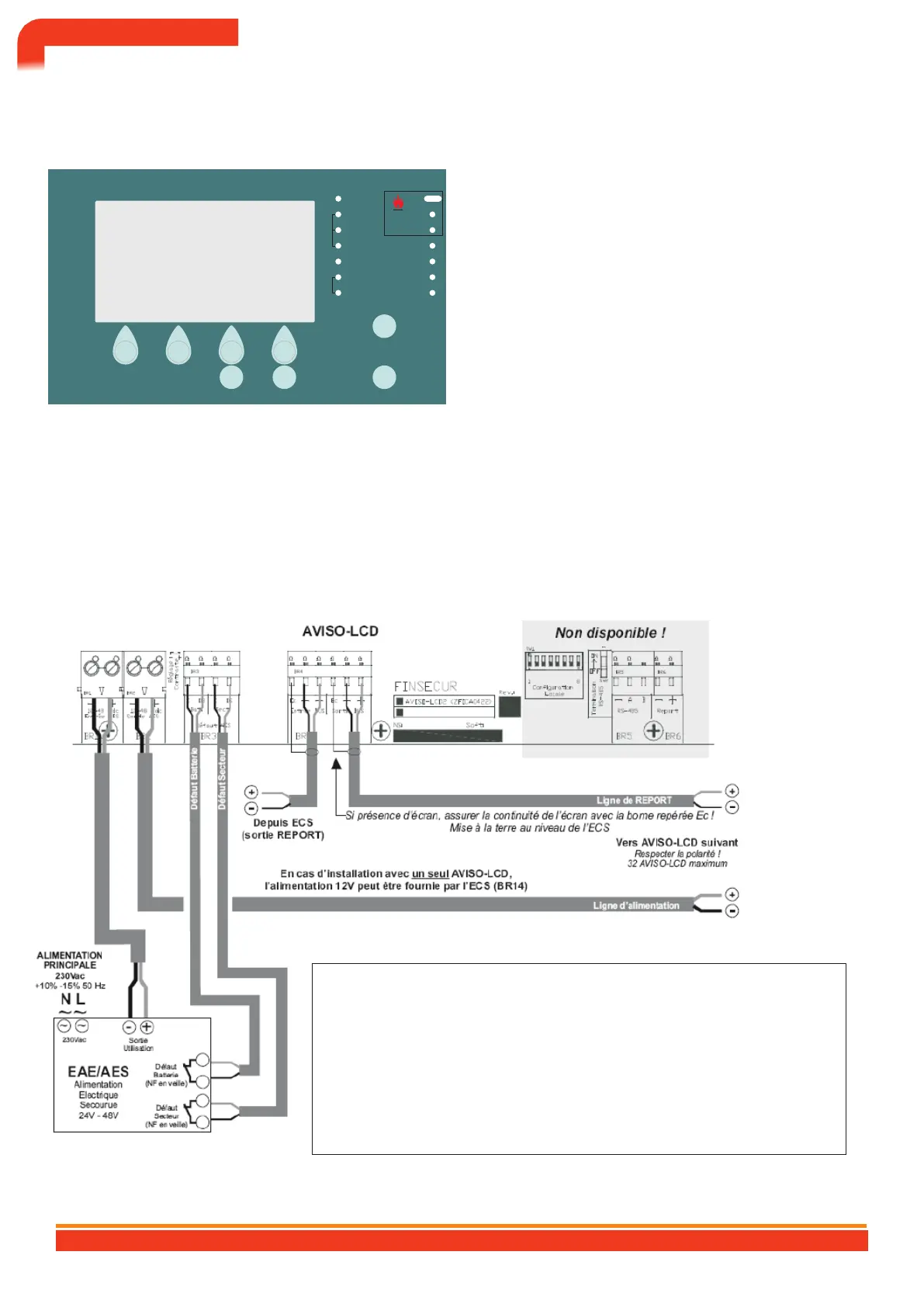

Aviso-LCD ECS/CMSI TRE Wiring Diagram
The installation rules are defined by the NF C 48-150 and NF C 15-100 standards.
ITake care to separate the SELV circuits from the mains cables.
In the event of the presence of a disturbing electrical source (industrial environment,
variable speed drive, welding station, electrical machine using an electrical source with
switching conversion, etc.), separate the mains cables from the communication or
control cables as much as possible, with a minimum distance of 50 cm.
CONTROL AND SIGNALING EQUIPMENT 512 POINTS BALTIC 512 TYPE A WALL OR RACK BOX
