Finsecur Baltic 512 TYPE A - Aspirating Smoke Detectors Ref: Mistral Nano

01-ECMSI-NT002.Rev B40

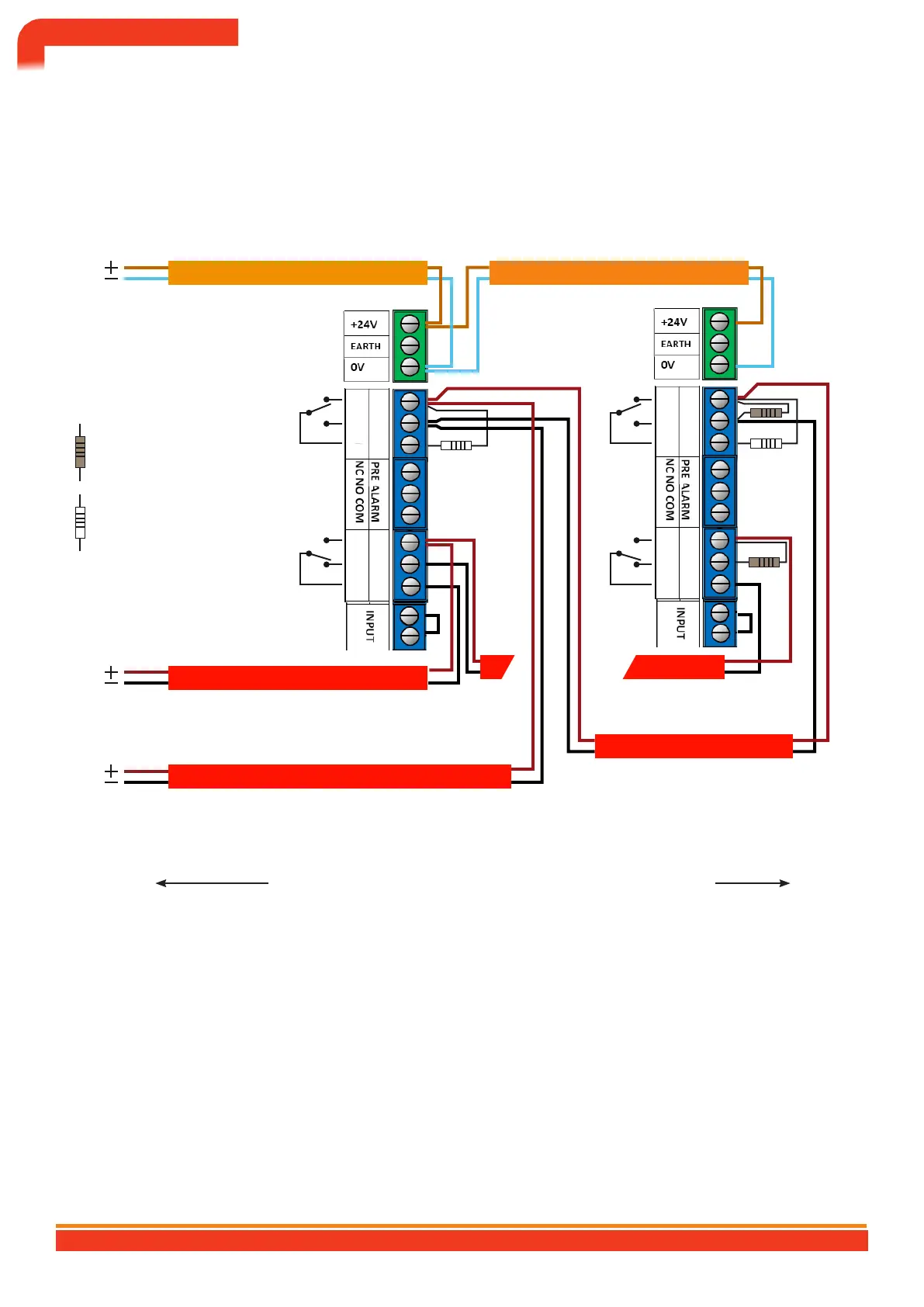

Aspirating smoke detectors ref: Mistral Nano
Power cable: type CR1, 1.5mm²
EAE/AES
24V
(NFS 61940)
(EN54-4)
RAL-NANO
intermediate)
NANO
th line)
RFL: 10 kOhms 1/4W 5%
Footnote 1 Footnote 1
RA: 1 kOhm 1/4W 5%
MANDATORY shunting on the
INPUT terminals
Footnote 1
Footnote 1
Fault Entry
on FIAT212
or FIAT412
Detector fault line: type C2
(SYS1, without screen)
Alarm Input
on FIAT212
or FIAT412
FIRE detector alarm line: type C2
(SYS1, without screen), 8/10mm
Note 1: Representation of relay contacts in standby state
Maximum distance 1000 meters, 32 detectors maximum per loop
CONTROL AND SIGNALING EQUIPMENT 512 POINTS BALTIC 512 TYPE A WALL OR RACK BOX
27
FIRE
FAULT
NC NO COM
NC NO COM
FIRE
FAULT
NCNOCOM
NC NO COM
