Finsecur Baltic 512 TYPE A - Wiring of the Axendis 10150 (White) and 10151 (Red) Light Diffusers; Wiring of Light Diffusers, Ceiling and Wall, Axendis 10181, 10185, 10191, 10195 (White) and 10182, 10186, 10192, 10196 (Red)

01-
ECMSI-NT002.Rev B40

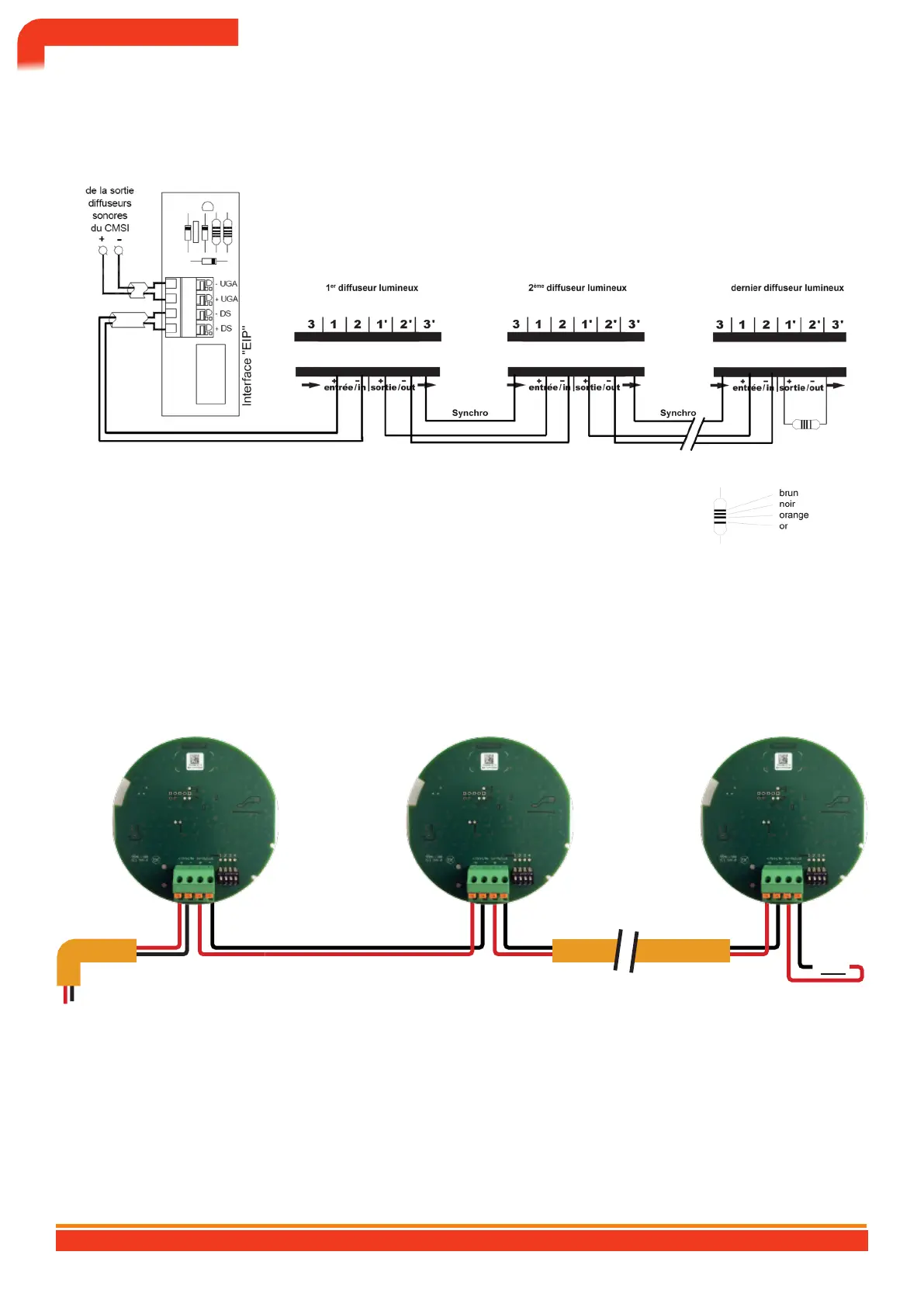

Wiring
of Axendis 10150 (white) and 10151 (red) light diffusers
Electrical
characteristics of
light
diffusers
Cable to be used for wiring light
diffusers
Voltage:
9 to 60 Vdc
→ Section (min.): 2 x 1.5 mm²;
→ type:
CR1 (fire resistant).
Cons. : 4.5 to 46 mA
(depending on the
configuration of the switches)
RFL:
10 KΩs
Wiring
of light diffusers, ceiling and wall, Axendis 10181, 10185, 10191, 10195 (white) and 10182,
10186, 10192, 10196 (red)
FIRST
DVAF NEXT DVAF LAST DVAF
EFL
+ -
SOUND
DIFFUSERS OUTPUT
1.5mm²
cable. Maximum distance between the control unit and the flashes: see the manual for the associated control unit
Maximum number of flashes: see the manual for the associated control unit
EFL (end of line element): see the instructions for the associated control unit
CONTROL
AND SIGNALING EQUIPMENT 512 POINTS BALTIC 512 TYPE A WALL OR RACK BOX
61
