Finsecur Baltic 512 TYPE A - Breaking das Wiring with Position Control; Breakaway das Wiring Without Position Control (Standard IT247 Wiring Terminal Block)

01-ECMSI-NT002.Rev B40
CMSI CARD WIRING

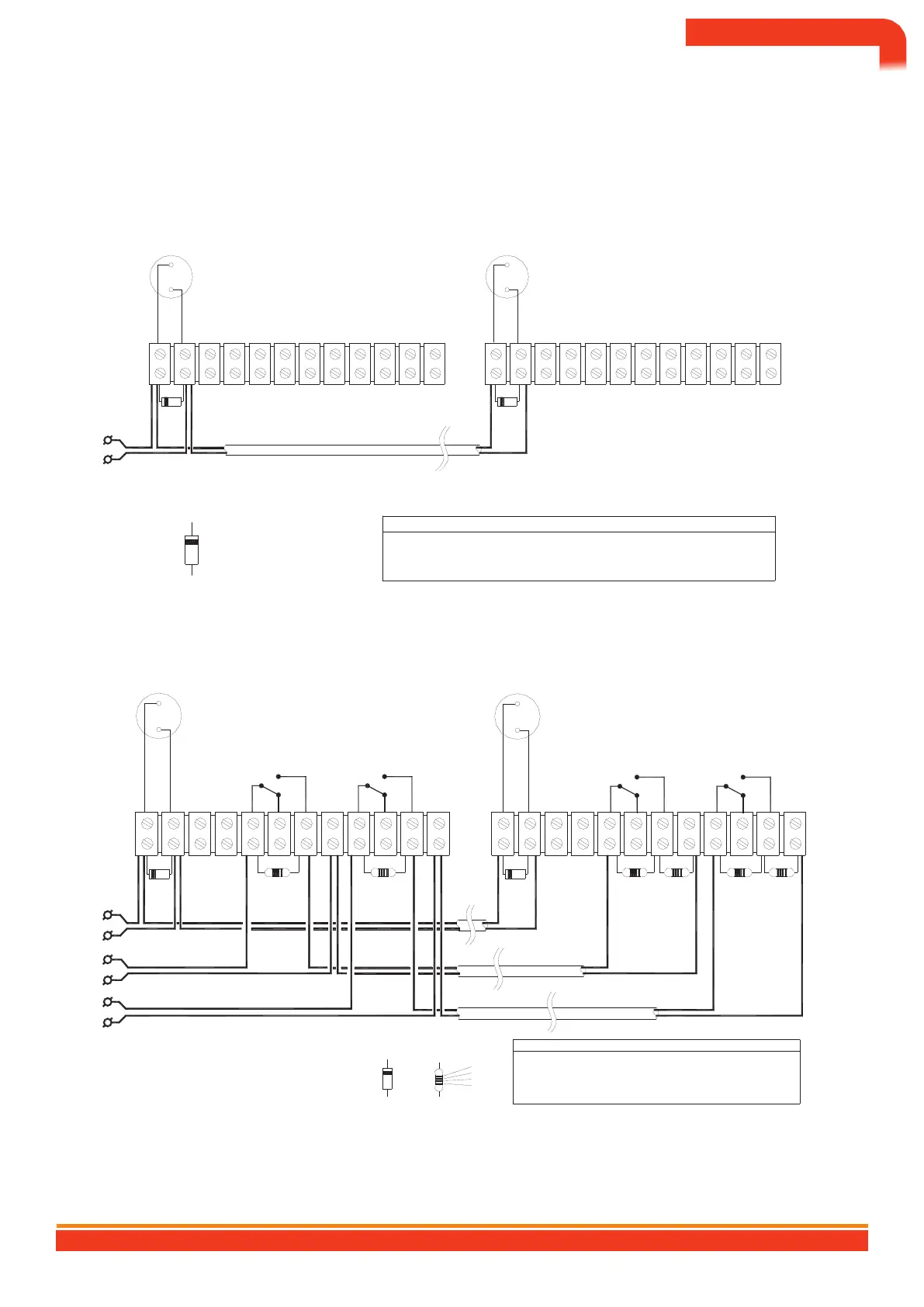

Breakaway DAS wiring without position control (standard IT247 wiring terminal block)
† It is essential to connect the "freewheel" diode on each automatic control system (solenoid, coil, etc.) of the DAS (carry
out the wiring as close as possible to the DAS).
automatic control system n°1 automatic control system n°n
1+ 2- 3 4 5 6 7 8 9 10 11 12 1+ 2- 3 4 5 6 7 8 9 10 11 12
exit
of
diode diode
telecom.
+
-
Cable to be used for the connection of the smoke extraction hatches
Section
Kind
2 x 1.5mm² min.
C2 (flame retardant)
Diode type 1N4004
“Break” DAS wiring with position control (standard IT247 wiring terminal
block)
SAR No. 1
DAS n° n
automatic control system
automatic control system
contact
beginning of
race (DC)
contact
end of
race (HR)
contact
beginning of
race (DC)
contact
end of
race (HR)
1+ 2- 3 4 5 6 7 8 10 11 12 1+ 2- 3 4 5 6 7 8 9 10 11 12
Cable to be used for the connection of the smoke extraction hatches
Note :
Diode type 1N4004 Rc = 10 kOhms
Section 2 x 1.5mm² min. (telecom.) 2 x
1 pair 8/10th (contacts)
brown
black
orange
gold
Before any connection, check the conformity of the DAS
terminal block with technical instruction 247
Kind C2 flame retardant (telecomm.) C2 flame
retardant (contacts)
† VSwiring of all types of DAS compliant with standard NF S 61-937.
