Finsecur Baltic 512 TYPE A - Page 47

01-ECMSI-NT002.Rev B40

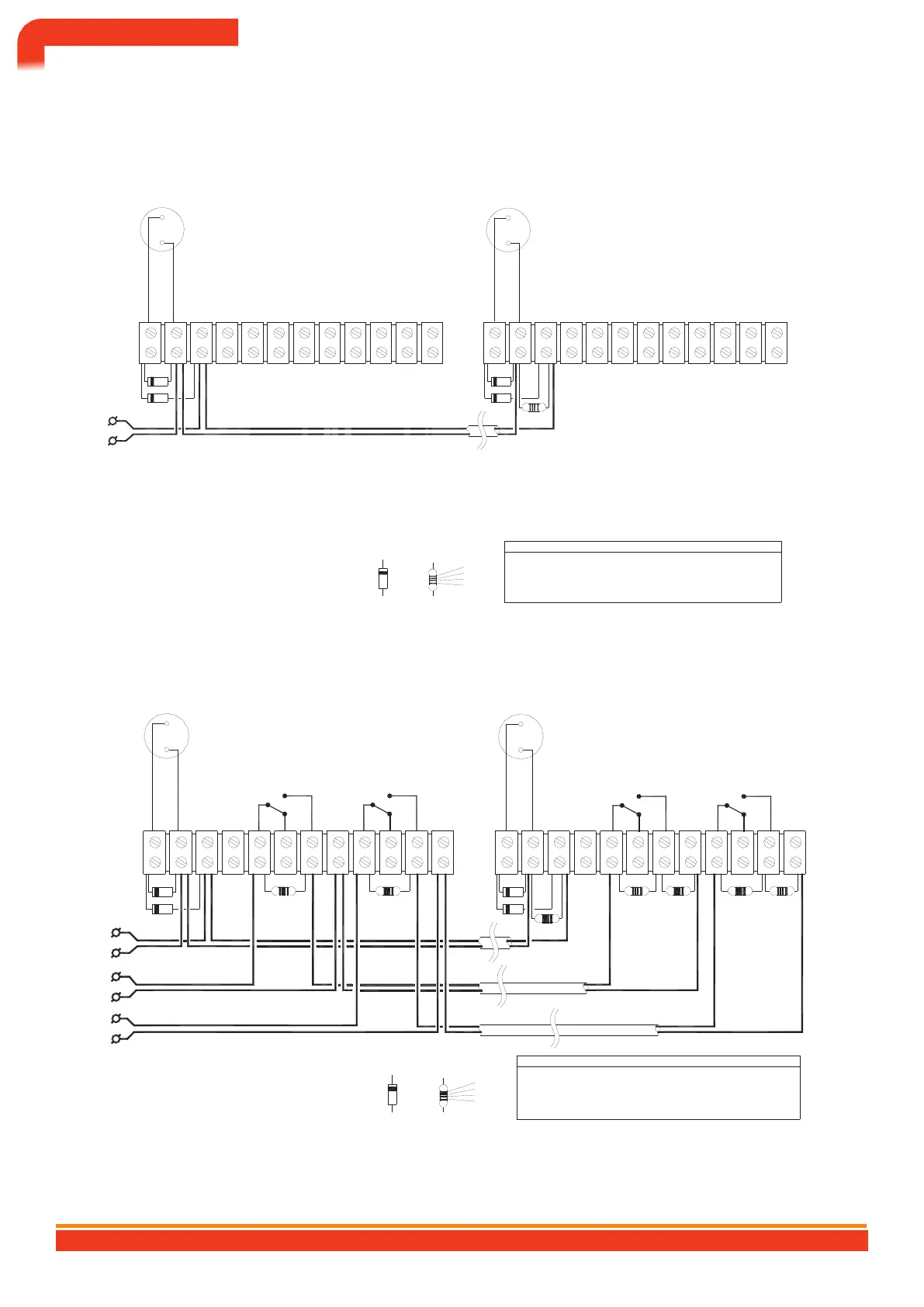

DAS "transmission" wiring without position control (standard IT247 wiring
terminal block)
SAR No. 1
DAS n° n
automatic control system
automatic control system
1+ 2- 3 4 5 6 7 8 10 11 12 1+ 2- 3 4 5 6 7 8 9 10 11 12
Cable to be used for the connection of the smoke extraction hatches
Note :
Diode type 1N4004 RFL = Rc = 10 kOhms
Section 2 x 1.5mm² min. (telecom.) 2 x
1 pair 8/10th (contacts)
brown
black
orange
gold
Before any connection, check the conformity of the DAS
terminal block with technical instruction 247
Kind CR1 fire resistant (telecom.)
C2 flame retardant (contacts)
DAS “transmission” wiring with position control (standard IT247 wiring
terminal block)
SAR No. 1
DAS n° n
automatic control system
automatic control system
contact
beginning of
race (DC)
contact
end of
race (HR)
contact
beginning of
race (DC)
contact
end of
race (HR)
1+ 2- 3 4 5 6 7 8 10 11 12 1+ 2- 3 4 5 6 7 8 9 10 11 12
Cable to be used for the connection of the smoke extraction hatches
Note :
Diode type 1N4004 RFL = Rc = 10 kOhms
Section 2 x 1.5mm² min. (telecom.) 2 x
1 pair 8/10th (contacts)
brown
black
orange
gold
Before any connection, check the conformity of the DAS
terminal block with technical instruction 247
Kind CR1 fire resistant (telecom.)
C2 flame retardant (contacts)
† VSwiring of all types of DAS compliant with standard NF S 61-937
CONTROL AND SIGNALING EQUIPMENT 512 POINTS BALTIC 512 TYPE A WALL OR RACK BOX
47
Line
SPC CPA
SPC
line
VS
You
Pla
ecom. of
Line
line
Telecom. of
Telecom.
Telecom.
