Finsecur Baltic 512 TYPE A - Wiring of DSAF Rolp;C;B;T;L;Cls B;24+48 V with DVAF Rolp LX Wall Base

01-ECMSI-NT002.Rev B40

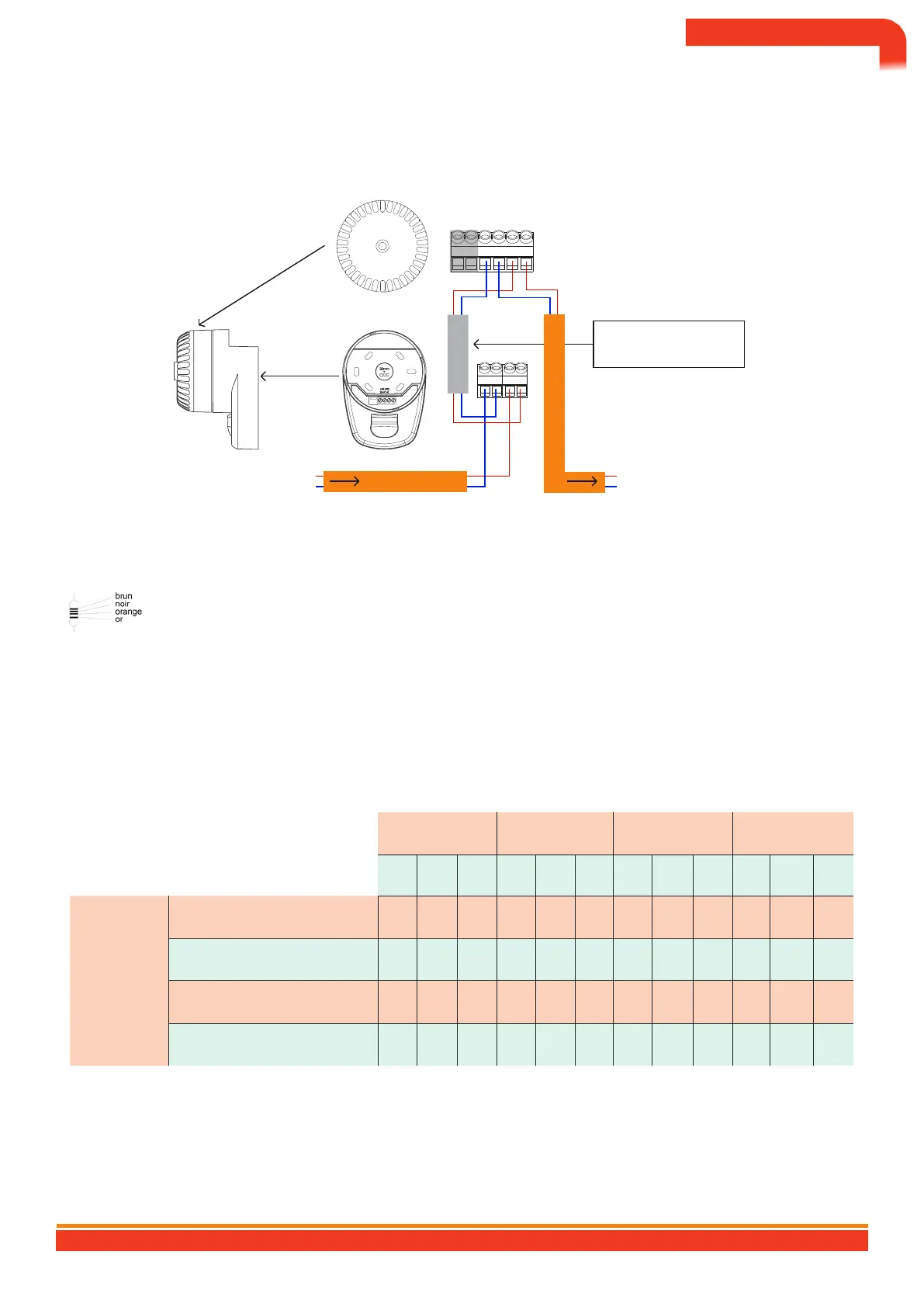

Wiring of DSAF Rolp/C/B/T/L/Cls B/24+48V with DVAF Rolp LX Wall Base
- -
+ +
ATTENTION !
Link between flash (base) and
sound di user to be created.
- -
+ +
Line input
Di users
sound and light
Line Out
-
Di users
sound and light
+
+
-
Cable to be used for the wiring of audible
and visual fire alarm devices
Electrical characteristics of devices
fire alarm signals and visualssound
Section (min.): 1.5 mm² min.
• see product instructions
RFL 10 KΩs
Number of audible and visual firearm devices'To
Configuration
Foryoupower Weak power
1Hz 0.5Hz 1Hz 0.5Hz
Distance (m) 100 300 600 100 300 600 100 300 600 100 300 600
24 V with E/IP interface 4 4 4 4 4 4 4 4 4 4 4 4
48 V with E/IP interface 18 18 18 18 18 18 18 18 18 18 18 18
External AES
24 V with E/I2P interface 5 5 5 5 5 5 5 5 5 5 5 5
48V with E/I2P interface 32 32 32 32 32 32 32 32 32 32 32 32
BALTIC 512 TYPE A WALL OR RACK BOX CONTROL AND SIGNALING EQUIPMENT 512 POINTS
60
