Finsecur Baltic 512 TYPE A - Page 59

01-ECMSI-NT002.Rev B40

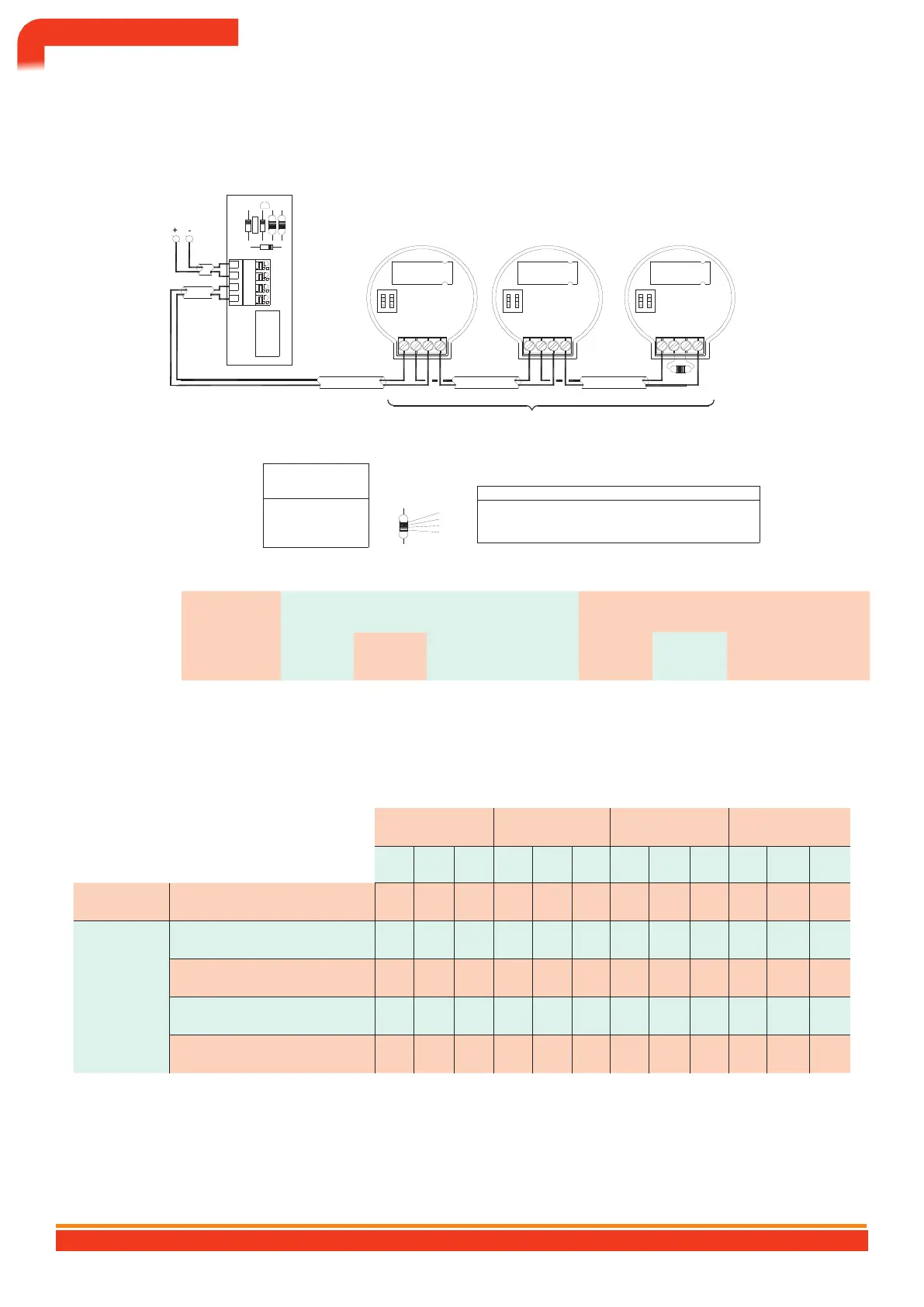

Solista MAXI / Solista LX Ceiling / Solista LX Wall flashing beacon wiring
of the exit
diffusers
sound
of the CMSI
-UGA
+ UGA
- DS
+ DS
1 2 1 2 1 2
OPEN OPEN OPEN
+ + -
-
+ + -
-
+ + - -
RFL
Number3e2defeduixffuàseéucrlsatsom noare
xs. pvaorirltig
abnleau below
Features
electric lights
flash Solista
RFL= 10 kOhms
Cable to be used for connecting flashing lights
6mA
6mA
- 12Vdc
- 24Vdc
chestnut
black
orange
gold
Section(min.)
Kind
2 x 1.5mm²
CR1(fire resistant)
Number of Solista Maxi flashing lights
Characteristic
maximum
Internal AES
12V
External 24 V AES
(E/IP interface)
External EAES 48V
(E/IP interface)
External AES 24V
(E/I2P interface)
External 48V AES
(E/I2P interface)
Distance (m)
Quantity
100 500 1000 1000 500 1000 1000
8 32 24 32 32 24 32
Number of DVAF Solista LX Wall / Solista LX Ceiling
Configuration
strong power Weak power
1Hz 0.5Hz 1Hz 0.5Hz
Distance (m) 100 300 600 100 300 600 100 300 600 100 300 600
Internal AES 12V 5 2 - 9 5 1 10 3 1 13 7 3
24 V with E/IP interface 11 11 11 11 11 11 11 11 11 11 11 11
48 V with E/IP interface 29 29 29 29 29 29 29 29 29 29 29 29
External AES
24 V with E/I2P interface 13 13 13 13 13 13 13 13 13 13 13 13
48V with E/I2P interface 32 32 32 32 32 32 32 32 32 32 32 32
CONTROL AND SIGNALING EQUIPMENT 512 POINTS BALTIC 512 TYPE A WALL OR RACK BOX
59
