Configuring port 2 terminations
† Pas configuring terminations on port 1.

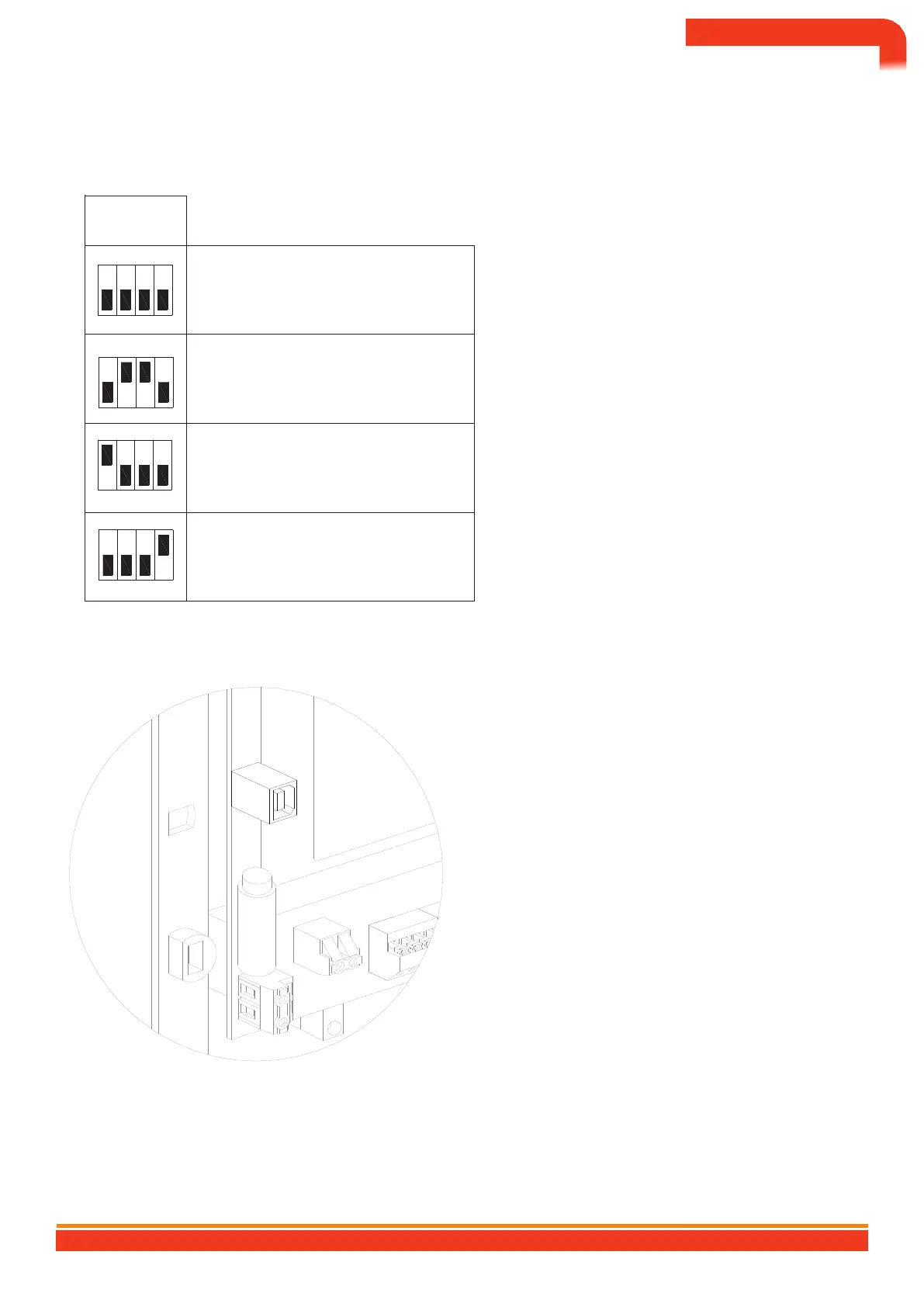

SW5
No Termination (default).
Position for tables
intermediate slaves of the RS
485 communication line.
Polarization of the RS485
communication line for the
master panel.
RC termination for slave board
in last position of RS485
communication line.
Termination R for slave panel in
last position of the RS485
communication line.
USB communication port
Features
→ USB2.0;
→ length: 3 meters maximum;
→ cable type: A/B.
Functioning
Allows you to configure the board in USB.
