Finsecur Baltic 512 TYPE A - Communication Ports Port 1 & Port 2

01-
ECMSI-NT002.Rev B40
Communication
ports port 1 & port 2
Features
→ “Serial”
link on 3 wires;
SW5
→ length: 15
meters maximum in RS232; 1000 meters ma
maximum x in RS485;
→ cable type: 2 pairs 8/10thC2;
→ transmission:
19200 bauds, 8 bits, 1 stop bit, no
parity.
Functioning

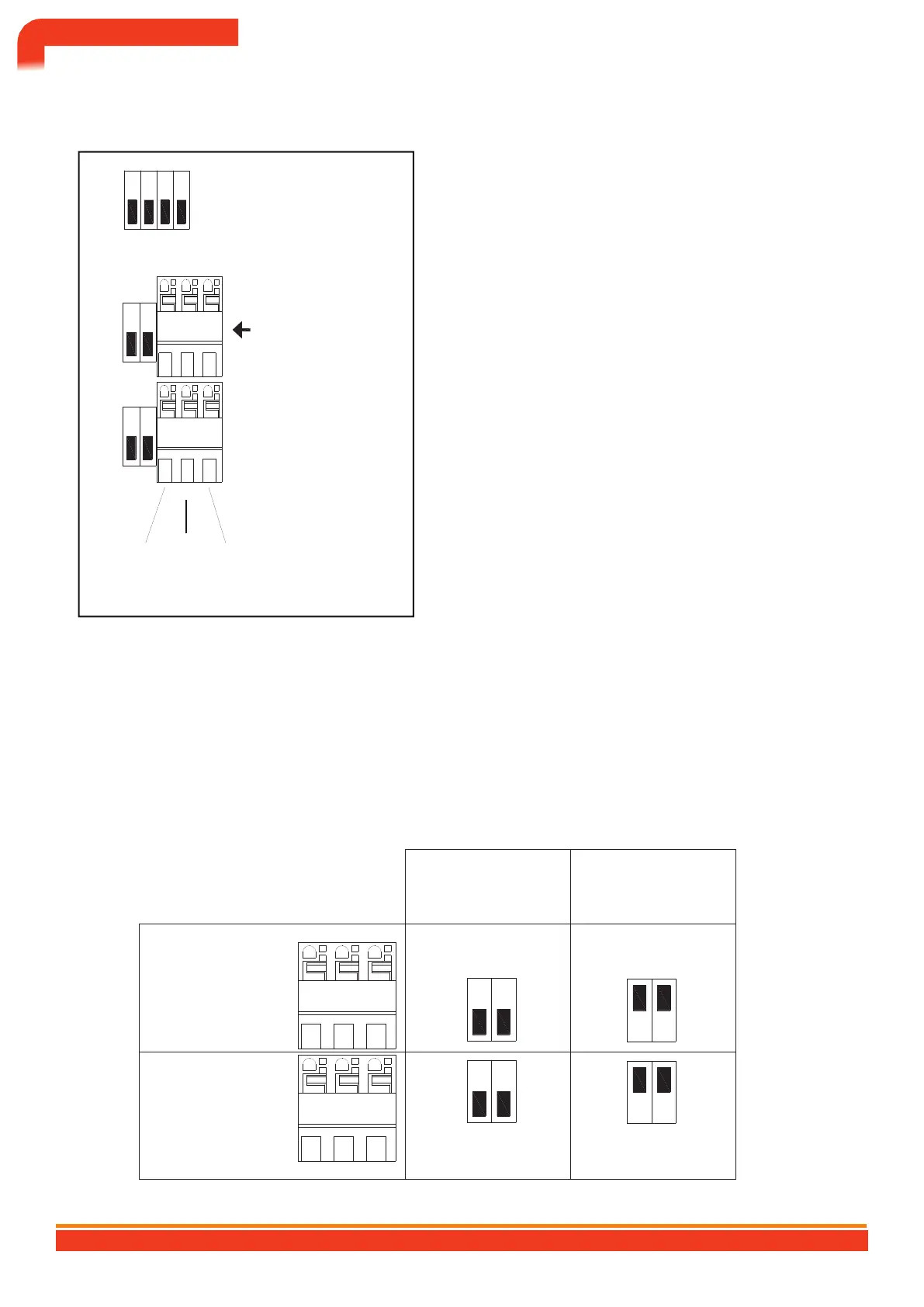

Serial port 2
BR17
→ Allows connection to a printer, a CMSI,
a report, a
remote facade, a MODBUS supervision or a PC;
→ allows the panel to be configured via RS232
Serial port 1
BR16
0v
Rx Tx
(valid
for both ports)
Configuring
Communication Ports
†
When communicating in RS485, it is preferable to use port 2.
Settings
in
RS232
Settings
in
RS485
Serial Port
#2
BR17
Serial Port #1
BR16
CONTROL
AND SIGNALING EQUIPMENT 512 POINTS BALTIC 512 TYPE A WALL OR RACK BOX
