Finsecur Baltic 512 TYPE A - Wiring FI-AC to Kara-8 EXT

01-ECMSI-NT002.Rev B40

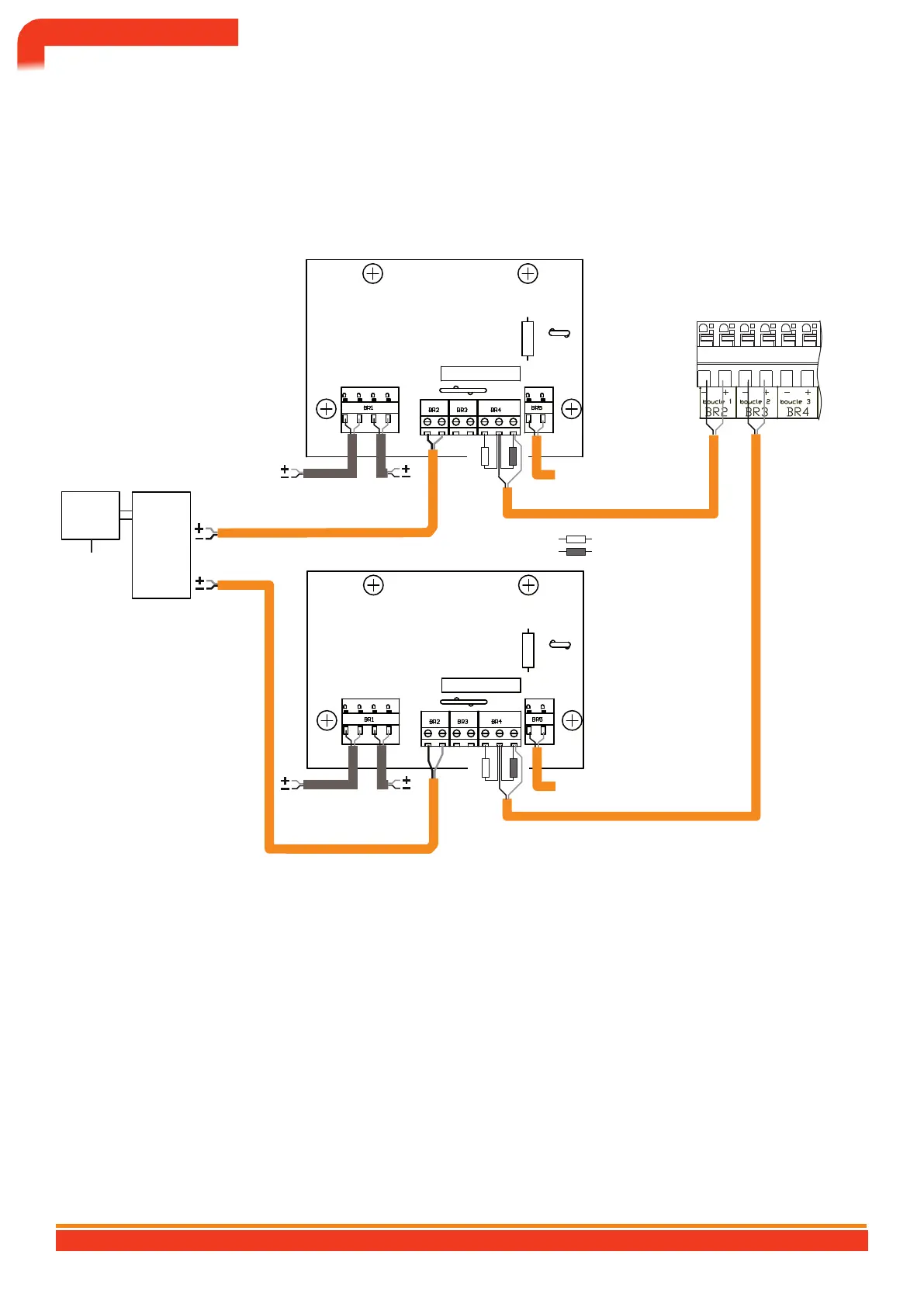

Wiring FI-AC to Kara-8EXT
KARA-8 EXT
Automatic Detection Loop
Fi-AC
VS
CN NO
Loop
detection
Conventional
CIRCUIT input
DETECTION
CIRCUIT output
DETECTION
Refer to the FI-AC manual
EAE/AES
24V
TRCA
(from BALTIC or
former address)
(to following address
or return Sense Circuit)
Table of
distribution
circuit
feeding
Or
Outgoing Fuse
EN54-4
NFS 61-940
Alarm Resistor (470R 2W) End of
Line Element (P6KE15CA)
Line Input EAE Power Supply - 24Vdc
Feed
main
230Vac
Fi-AC
VS
CN NO
Loop
detection
Conventional
CIRCUIT input
DETECTION
CIRCUIT output
DETECTION
Refer to the FI-AC manual
(from BALTIC or
former address)
(to following address
or return Sense Circuit)
Line Input EAE Power Supply - 24Vdc
This wiring applies to take up the detectors via ECS Baltic 512, Baltic 1024 or Baltic 512 ECS/ CMSI to the Kara-8EXT
extinguishing panel at the level of the alarm loops.
It simplifies the wiring by limiting the information recovery distance.
CONTROL AND SIGNALING EQUIPMENT 512 POINTS BALTIC 512 TYPE A WALL OR RACK BOX
