Finsecur Baltic 512 TYPE A - Page 24

01-ECMSI-NT002.Rev B40
FI-AC Wiring
Recommended cables:
1 pair SYS1 C2 or CR1, without
screen, section 8/10th mm
Fi-AC
1 pair CR1, without screen, section 1.5mm²
EN 54-18: 2005 Entry/exit device EN 54-17:
2005 Short-circuit isolator
Internal view of the relay contact:
Position represented
in the waking state
Be careful, the relay does not activate
automatically on the Fi-AC
detection line alarm.
By configuration of the ECS, a
point alarm of the same bus
activates the relay
until reset.
VS
CN NO
Example of use :
action indicator, technical alarm,
report for remote transmitter
VS
CN NO
Do not use to make automatic controls of the
compartmentation or smoke extraction type!
+ E
BUS input
BUS output
+S
+ E
+S
Detector
conventional
24V
Detector
conventional
24V
(from BALTIC or
former address)
(to following address
or bus return)
ORANGE
ORANGE
RED
GOLDEN
Line Input EAE Power
Supply - 24Vdc
Line Out
Feed
AI AI
(or Fused Outgoing Output,
or previous address)
(to next address)
Automatic detection line(32 detectors maximum)
Connection: Refer to the detector manual.
End of Line Element
Example: Line for action indicator
3300 Ohm 1/4W 5%
Don't forget to make a STRAP!
BR3: local power output protected by polyswitch
Sextant-IA
Fi-AI
Fi-IA-E

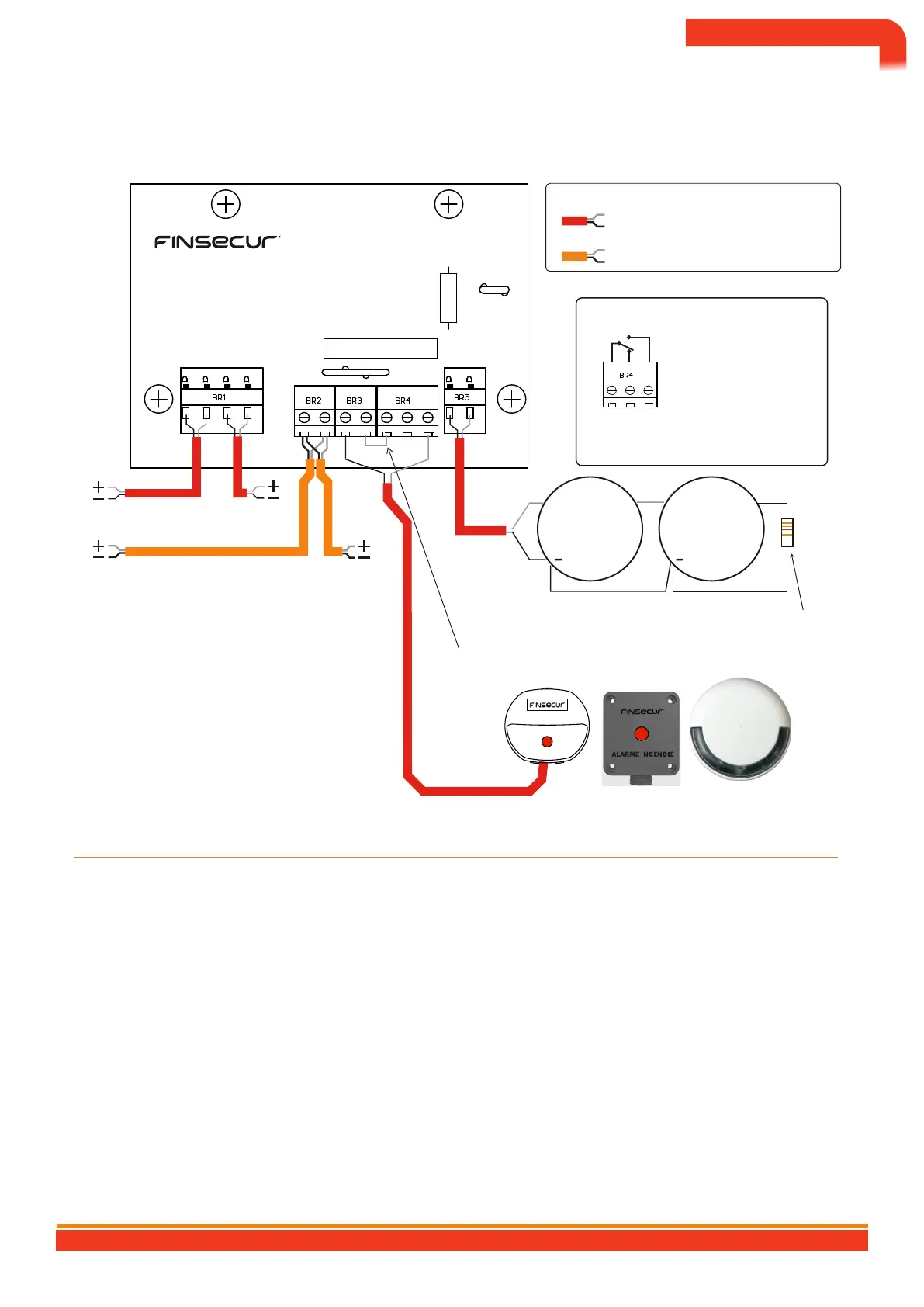

CONNECTING THE Fi-AC:
BR1: 12v addressable bus, input/output
BR2: Power supply input BR3: Local
power supply output for
control via relay, protected by polyswitch BR4: Relay
output, potential-free dry contacts (1A/30V max)
BR5: Automatic detection loop, monitoring by end of line resistor
Connection: Refer to the action indicator manual.
Prohibition
No compartmentalization or smoke extraction functions can be performed using the Fi-AC relay.
Only action indicators or technical reporting equipment can be connected to the relay.
Maximum number of FI-AC (looped bus): 128
Maximum number of FI-AC (open bus): 32
This wiring applies for the following detectors:
→ Finsecur detectors: CAP100, CAP200;
→ maximum number of detectors: 32;
→ maximum loop length: 1000 meters.
BALTIC 512 TYPE A WALL OR RACK BOX CONTROL AND SIGNALING EQUIPMENT 512 POINTS
24
COMMMON
REST
WORK
