01-ECMSI-NT002.Rev B40
Remote facade Baltic-Mirror
Features
→ 1 offset front (ref: Baltic/mirror) max.
→ Length: 1000m max.
→ Cable type: 2 pairs 8/10th(without screen)
→ Category (cable): C2
Functioning
→ Complete report of the front facade of the ECS.

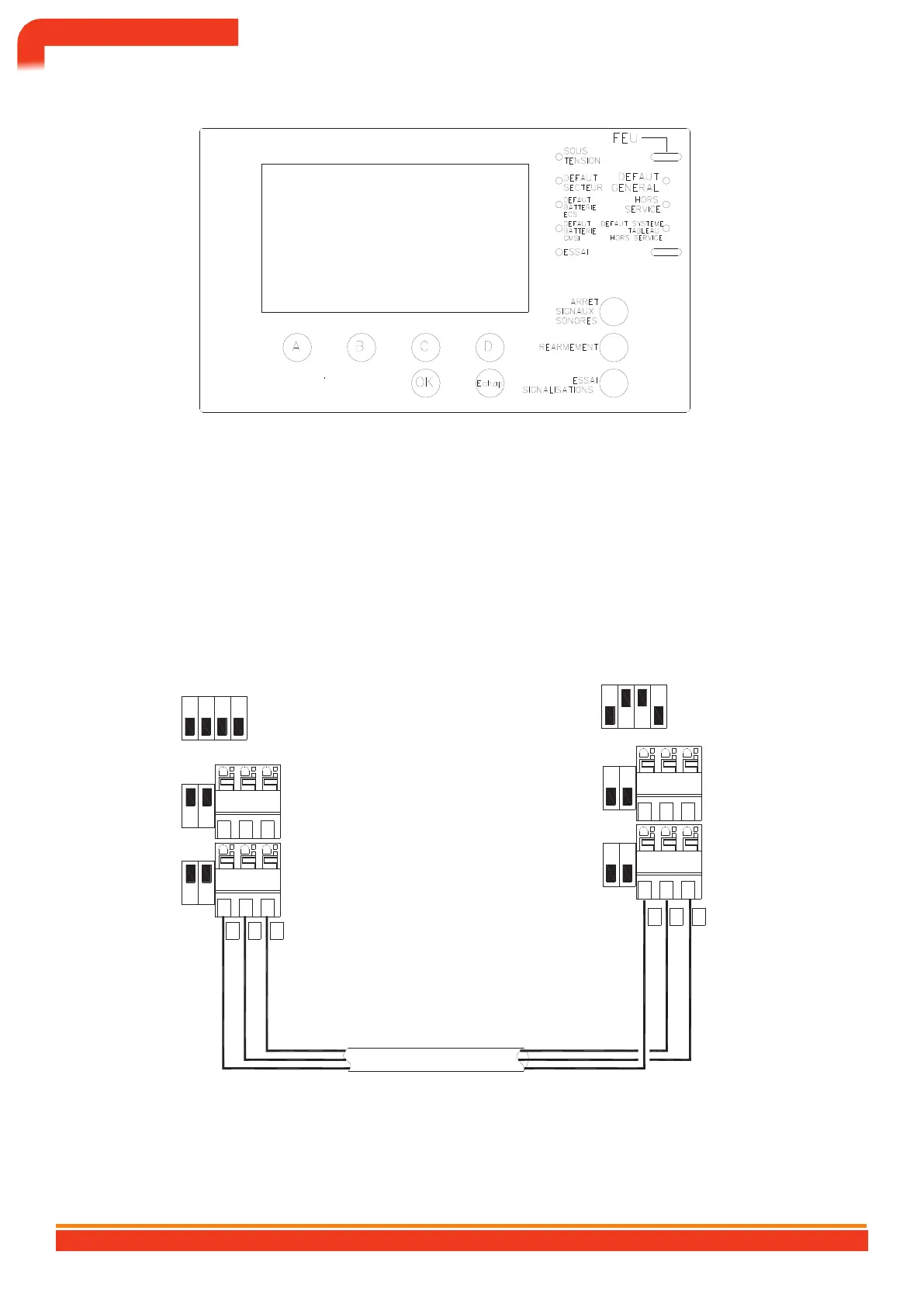

Desc ription of the ECS/Baltic "mirror" link cable (port no. 2)
SW5
SW5
DHW
port #1 or #2 can
be used
for this connection
PORT2
(BR17)
BALTIC
MIRROR
ABC
ABC
IThe remote front panel is master of RS485 communication in this configuration. Respect the position of the
configuration switches (details: configuration table on page 14 & 15).
The representation corresponds to recent products, for older versions refer to the previous instructions.
CONTROL AND SIGNALING EQUIPMENT 512 POINTS BALTIC 512 TYPE A WALL OR RACK BOX
35
