01-
ECMSI-NT002.Rev B40

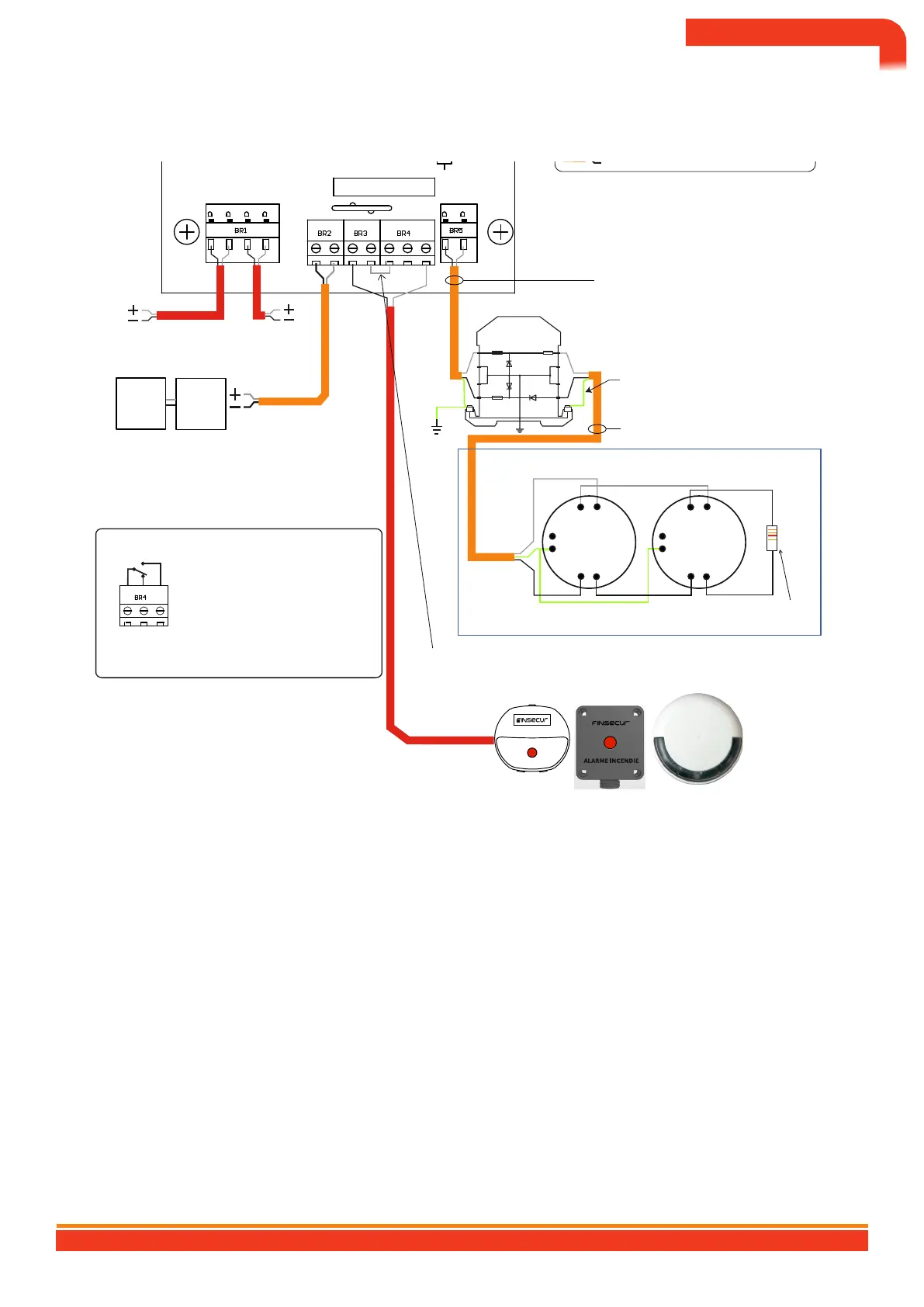

Wiring the FI-
AC-ATX
1
pair CR1, without screen, section 1.5mm²
VS
CN NO
CR1 8/10e cable with screen
Length: 100 meters max.
Associated
Zener Barrier
CIRCUIT
input
DETECTION
Respect
the connection opposite.
For more details, refer to the barrier manual
CIRCUIT output
DETECTION
(from
BALTIC or
former
address)
(to
following address
or
return Sense Circuit)
ATTENTION !
Earthing of screens imperative
EAE
24V
Finsecur
TRCAL
Line
Input EAE Power
Supply
- 24V
(MTL7787VS
+To)cable CR1 8/10e with screen
Length: 200 meters max.
TRCAL to be installed next to the EAE
DANGEROUS ZONE
1 3
2 4
1
2
1
2
ORANGE
ORANGE
RED
GOLDEN
Internal
view of the relay contact:
4
Basement
HOCHIKI
4
Basement
HOCHIKI
Position
represented
in the waking state
3 3
Be
careful, the relay does not activate
automatically
on the Fi-AC
detection
line alarm.
6
5
6
5
By
configuration of the ECS,
a
point alarm of the same detection circuit
activates
the relay
until
reset.
Example
of use :
action indicator, technical
alarm,
report for
remote transmitter
Automatic detection circuit
(15 detectors maximum)
End of Line
Element
3300
Ohm 1/4W 5%
VS
CN NO
Connection and installation: Refer to the detector manual.
Do not use to make
automatic controls of the
compartmentation
or smoke extraction type!
Example: Line for action indicator
Don't
forget to make a STRAP!
BR3: local power output protected by polyswitch
Sextant-IA
Fi-AI
Fi-
IA-E
Connection: 1 single action indicator. Refer to the action indicator package insert.
CONNECTING
THE Fi-AC-ATX:
BR1: 12v Addressable Sense Circuit, Input/Output BR2:
Power
Supply Input
BR3:
Local power supply output for servoing via the relay, protected by polyswitch BR4:
Relay
output, potential-free dry contacts (1A/30V max)
BR5:
Automatic detection loop, monitoring by end of line resistor
If FI-
AC-ATX is used: 32 FI-AC ATX maximum (looped back or open bus) 32 Atex
detectors maximum on the looped secondary lines (128 addresses)
This wiring applies for the following detectors:
→ DCD-1E-IS
and DCD-1E-IS(WHT) detector: Atex class A1 thermal detector;
→ SLR-
E-IS and SLR-E-IS(WHT) detector: Atex optical smoke detector.
Use only the associated Zener Barrier: MTL
brand reference MTL7787+
Do not forget the TRCAL to be installed at the EAE output to protect the FI-AC-ATX and its detection loop.
BALTIC 512
TYPE A WALL OR RACK BOX CONTROL AND SIGNALING EQUIPMENT 512 POINTS
26
COMMMON
REST
WORK
