Finsecur Baltic 512 TYPE A - External B512-16 R Board; Description of the External B512-16 R Board; Wiring Terminal Board B512-16 R Card

01-ECMSI-NT002.Rev B40

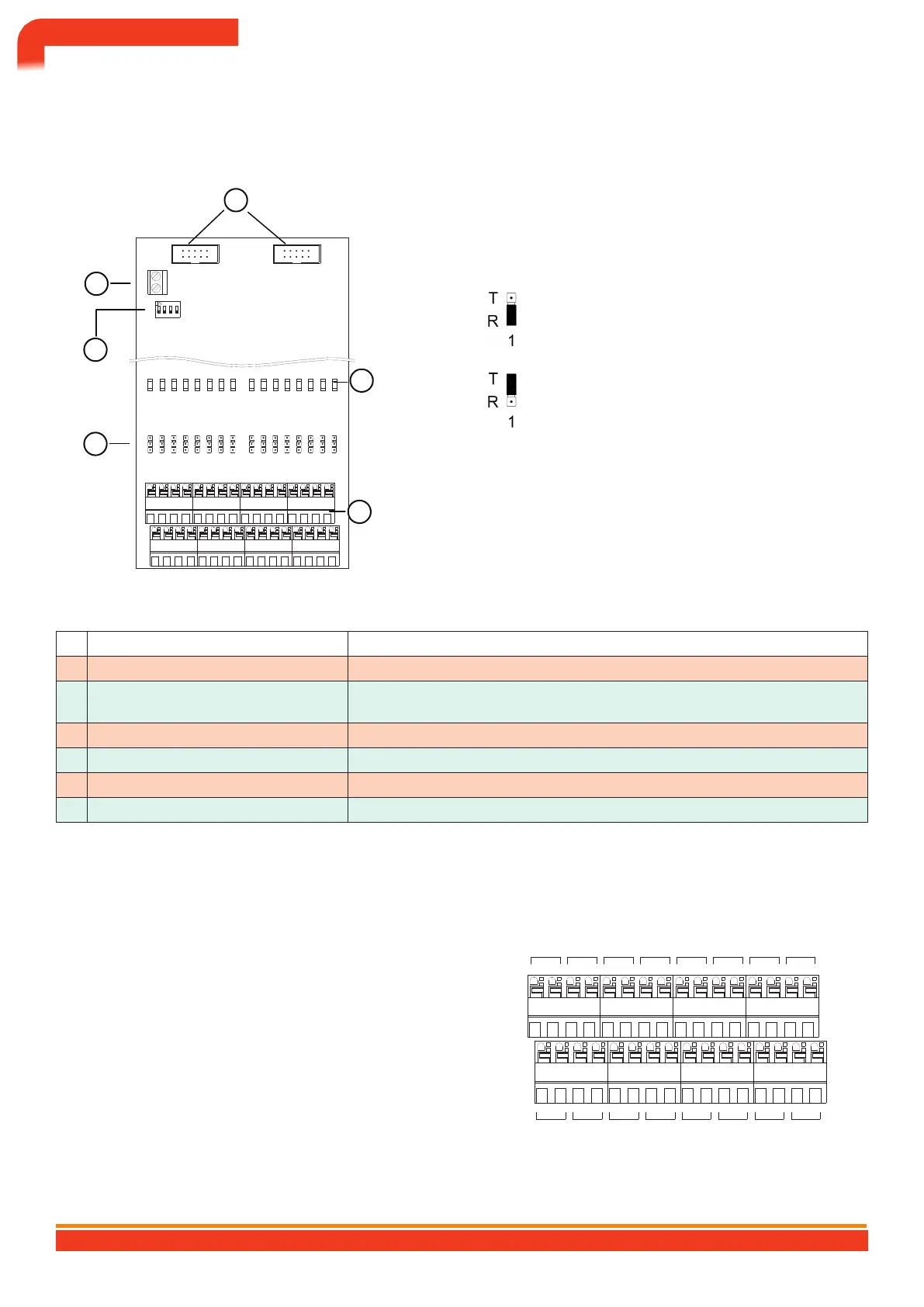

External B512-16R card
→ This optional card provides 16 potential-free
contacts that can be activated when a point or
detection zone goes into fire alarm.
6
→ Each of these contacts can be set to the "normally
open" or "normally closed" position using the
jumpers‚.
24 VDC
_
Example (contact no. 1):
5
+
Address
0 to 7
Normally closed contact
1
3
Normally open contact
2
T
R
T
R
Rating #1: 8 cards max. B512-16R ext can be connected
(128 relays max.).
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Note 2: an external power supply is necessary for the
operation of these boards, with an autonomy at least equal
to that of the ECS.
4
Note 3: they must be configured in the configuration
softwareBaltic PC.
Description of the external B512-16R card
No. Designation Explanation
1 Addressing microswitch allows to address the relay board (n°1 to 8)
2 Selection jumper allows the corresponding relay output to be configured as a normally
closed (R) or normally open (T) potential-free contact
3 Red light signals when on the active state of the corresponding relay
4 Wiring terminal block allows wiring to the potential-free contact of the corresponding relay
5 External power terminal block 24 V input from external power supply
6 Ribbon cable connector allows wiring of the inter-board ribbon cable
Wiring terminal board B512-16R board
CONTROL AND SIGNALING EQUIPMENT 512 POINTS BALTIC 512 TYPE A WALL OR RACK BOX
65
1
2
1
2
Relay no. 2
Relay n°1
Relay No. 4
Relay No. 3
15
16
Relay No. 6
Relay No. 5
Relay No. 8
Relay No. 7
1
2
Relay No. 10
Relay No. 9
Relay No. 12
Relay No. 11
Relay No. 14
Relay No. 13
1
Relay No. 16
Relay no. 2
2
Relay No. 15
Relay n°1
15
16
Relay No. 4
Relay No. 3
15
16
Relay No. 6
Relay No. 5
Relay No. 8
Relay No. 7
Relay No. 10
Relay No. 9
Relay No. 12
Relay No. 11
Relay No. 14
Relay No. 13
Relay No. 16
Relay No. 15
15
16
