Finsecur Baltic 512 TYPE A - Remote Control Line to Transmit (with Position Control); Characteristics of the Remote Control Line; Characteristics of Position Control Lines

01 -ECMSI-NT002.Rev B40

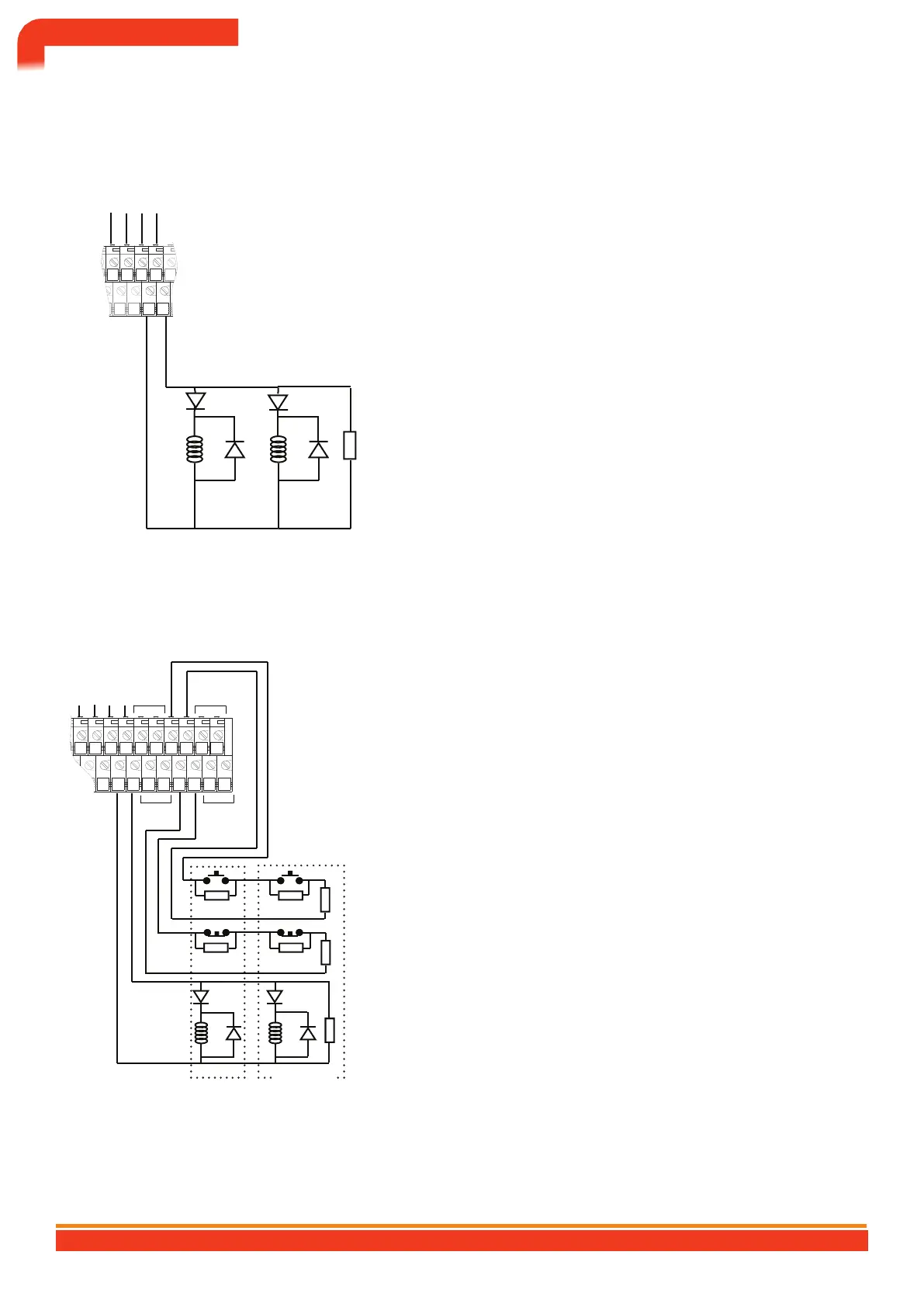

remote control line to "transmission" (without position control)
Exit
#1
Exit
#3
Characteristics of the remote control line
- + - +
→ Number of lines: 3 possibilities;
→ power: 55W/line maximum;
→ voltage: 24/48 V (AES. external);
→ current: 1 A/line (external AES);
→ fuse protection: 1 A slow;
→ number of SARs: 32;
→ length (voltage = 24 V);
• section 1.5 mm²: 100 m (max);
• 2.5 mm² section: 200 m (max);
→ length (voltage = 48 V);
• section 1.5 mm²: 250 m (max);
• section 2.5 mm²: 400 m (max);
→ type (cable): CR1;
→ end of line resistance (RFL*): 10 KΩ s - 1/4 W.
* Not provided
23 24 25 2627
7 8 9 10
Exit
no. 2
- +
* *
RFL
Remote control line to “transmit” (with position control)
Characteristics of the remote control line
→ Number of lines: 3 possibilities;
→ power: 55W/line maximum;
→ voltage: 24/48 V (AES. external);
→ current: 1 A/line (external AES);
→ fuse protection: 1 A slow;
→ number of DAS: 5 maximum;
→ length (voltage = 24 V);
• section 1.5 mm²: 100 m (max);
• 2.5 mm² section: 200 m (max);
→ length (voltage = 48 V);
• section 1.5 mm²: 250 m (max);
• section 2.5 mm²: 400 m (max);
→ type (cable): CR1.
Exit Exit
#3
#1
PC
S
SPC
#3
- + - +
- +
- +
23 24 25 26 27 28 29 30 31 32
8 9 10 11 12 13 14 15 16
- + - +
- +
Exit- +
#2
CPA
#1
CPA
#3
R
F
I
heart rate
heart rate
RC
CPS No.
RC
DC
DC
Characteristics of position control lines
R
F
I
→ Number of lines: 2 per function;
• CPA: standby position control;
• CPS: safety position control;
→ cable: 1 pair 8/10th/line ;
→ type (cable): C2;
→ resistance :
• end of line (RFL*): 10 KΩ s - 1/4 W;
• contact (Rc*): 10 KΩ s - 1/4 W.
* not provided
RC
CPA no.
RC
* *
R
F
I
SAR No. 1
SAR no....
CONTROL AND SIGNALING EQUIPMENT 512 POINTS BALTIC 512 TYPE A WALL OR RACK BOX
43
Representation with the D..A..S..
*
*
