Finsecur Baltic 512 TYPE A - Page 8

01-ECMSI-NT002.Rev B40

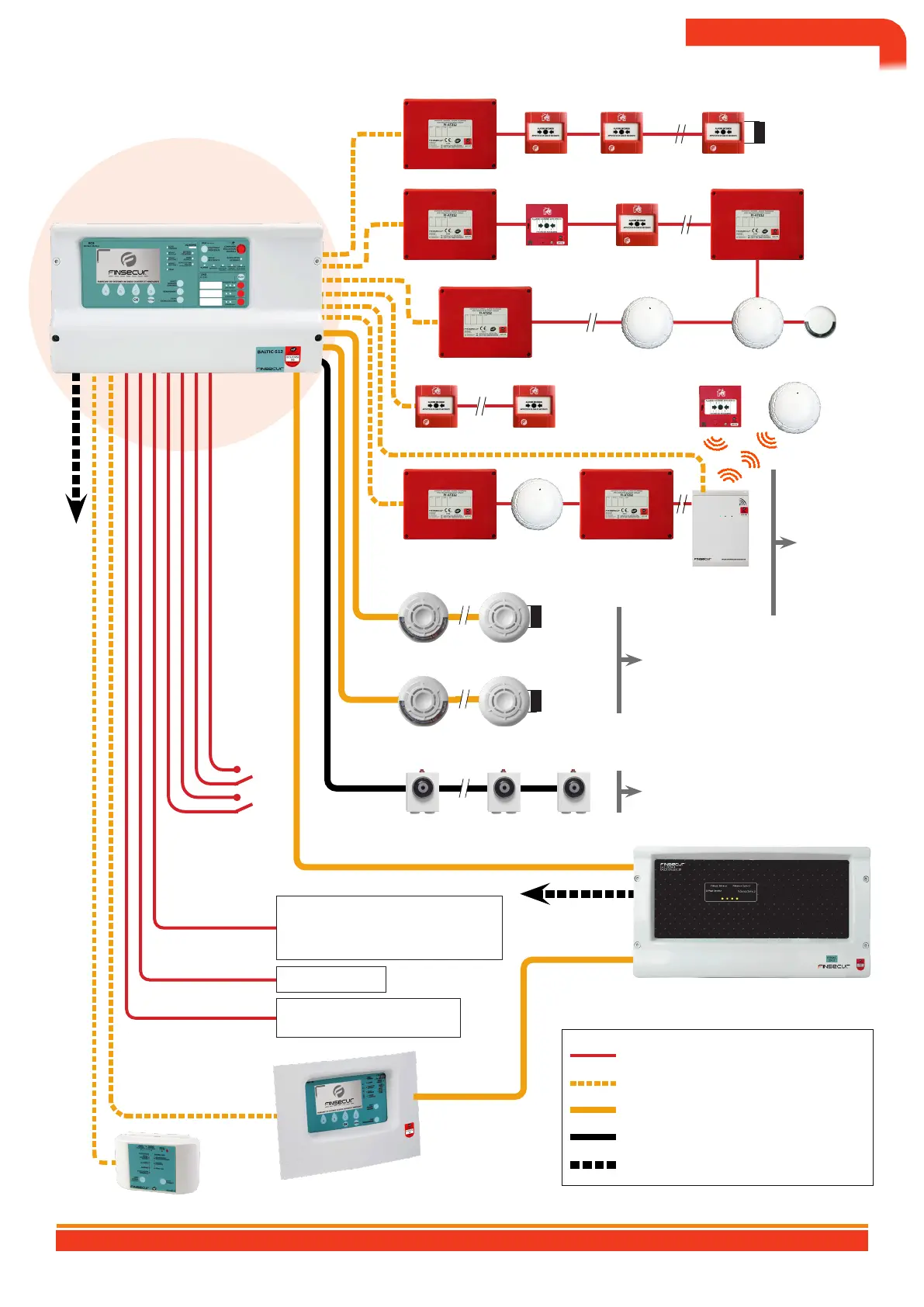

Synoptic of principle
FI-AT 212/FI-AT 412
EFL
Line(s) of Sextant-DMC conventional manual call points
FI-AT 212
Line(s) of Nemo 112A manual call points
Indicator
action
Sextant-IA
FI-AT 212
Line(s) of Sextant-DOA detextor
Sextant-DMR
Line(s) of Sextant-DMA manual call points
Sextant-DOR
4 buses from
128 dots
looped
or 8 buses
open
of 32 points.
FI-AT 212 FI-AT 212
organ
intermediate
Sextant-OIR
EFL
32 diffusers maximum per line.
2 lines of diffusers, power of 0.7 A
(internal supply) for the two outputs,
and 1 A per output (external AES or
external EAES)
Line(s) of sound and/or light diffusers Sextant-
DSVAF, DVAF, DSVAF-R, DVAF-R, DSAF
EFL
Cable type C2 U1000 RO2 V in "break" mode
or type CR1 in "emission" mode
3 configurable DAS command
lines "break" or "transmit" with
or without position control. 1A
per output
DC
heart rate
3 DC/FC lines
SAR SAR SAR
Reports for potential free contacts. 1 general
alarm, 1 general fault, 2 configurable relays, 1
UGA auxiliary contact, RS 485 or Finsécur bus
To mains (230 Vac)
Communication EAE
EAE/EAES
RS 232 link to printer or PC RD 485
link
1 pair 8/10etype C2
1 pair 8/10etype C2
2 x 1.5mm2type CR1
2 x 1.5mm2 type C2 U1000 RO2V
3 x 1.5mm2 type 3G U1000 RO2 V
Aviso-LCD
The synoptic of principle with informative value. It cannot replace the wiring diagrams in the user manual for working on the products concerned.
BALTIC 512 TYPE A WALL OR RACK BOX CONTROL AND SIGNALING EQUIPMENT 512 POINTS
8
To mains (230 Vac)
