4. Finish the calibration step Std 1: OK.
5. What would you like to do?
► Finish the calibration: 1 x
The measuring system is now calibrated to the base material (Zero) and the
part geometry as well as to a reference value (Std 1), the calibration is finished,
the calibration menu with the calibration list appears in the display
► Continue the calibration with the 2nd calibration standard: OK > repeat steps 1.
to 4. with the second calibration foil (Std 2)
The measuring system is now calibrated to the base material (Zero) and the
part geometry as well as to two reference values (Std 1 and Std 2), the calibra-
tion is finished, the calibration menu with the calibration list appears in the
display.

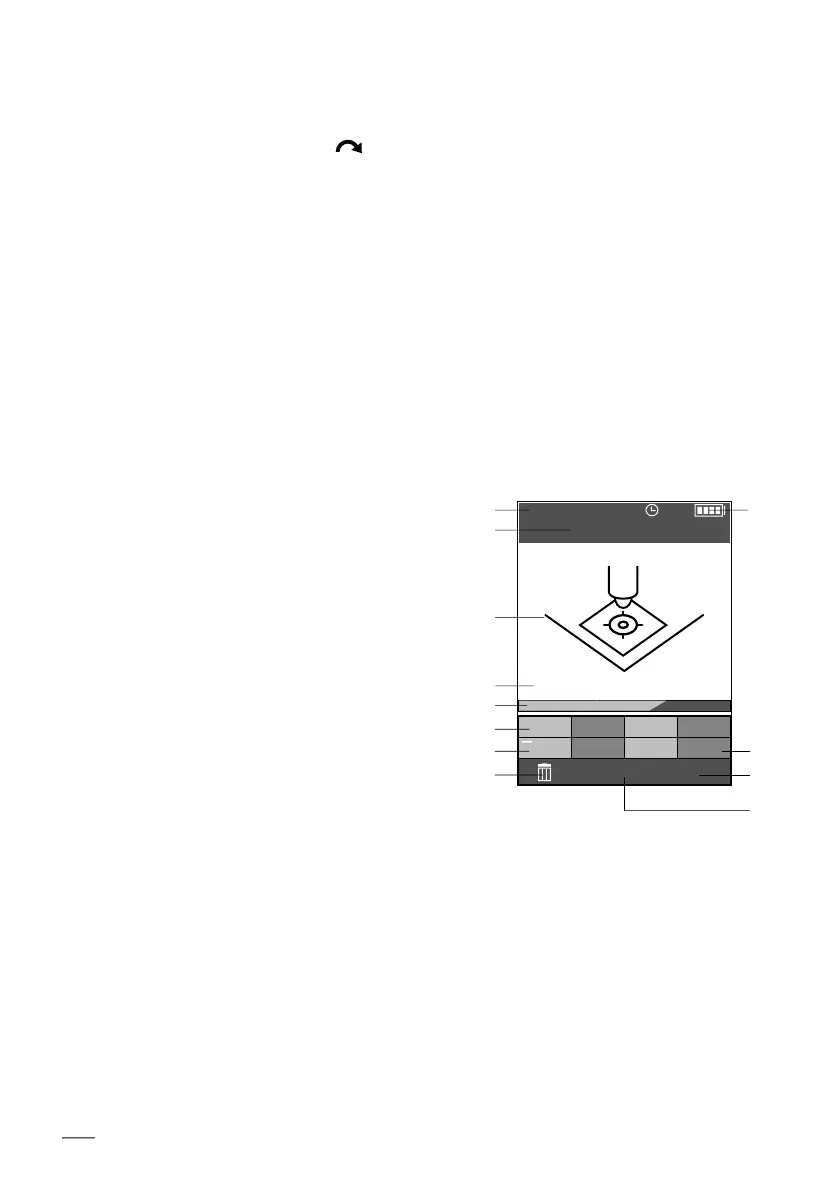

Display description – Std calibration step
1 Base material currently being measured
(example FE)
2 Name of calibration (example)
3 Schematic illustration of the current cali-
bration step
4 Current calibration step
5 Progress display of the calibration steps
(example: calibration step 2 current = cal-
ibration step Std 1)
6 Current measured reading (example)
7 Mean value of the measured readings re-
corded up to now in the current calibra-
tion step (example)
8 Deletes the last measured reading
9 Battery status display
10 Number of measurements in the current calibration step (example)
11 Continue to next calibration step / exit calibration
12 Opens the page for entering the nominal value of the foil
NF/FE
