Description DMP30 / DMP40
3.1 Scope of supply
Gauge
Li-ion battery
USB cable type C to type A, 1 m (39.4 ")
Safety information and quick guide
Gauge case
Fischer-Bluetooth stick

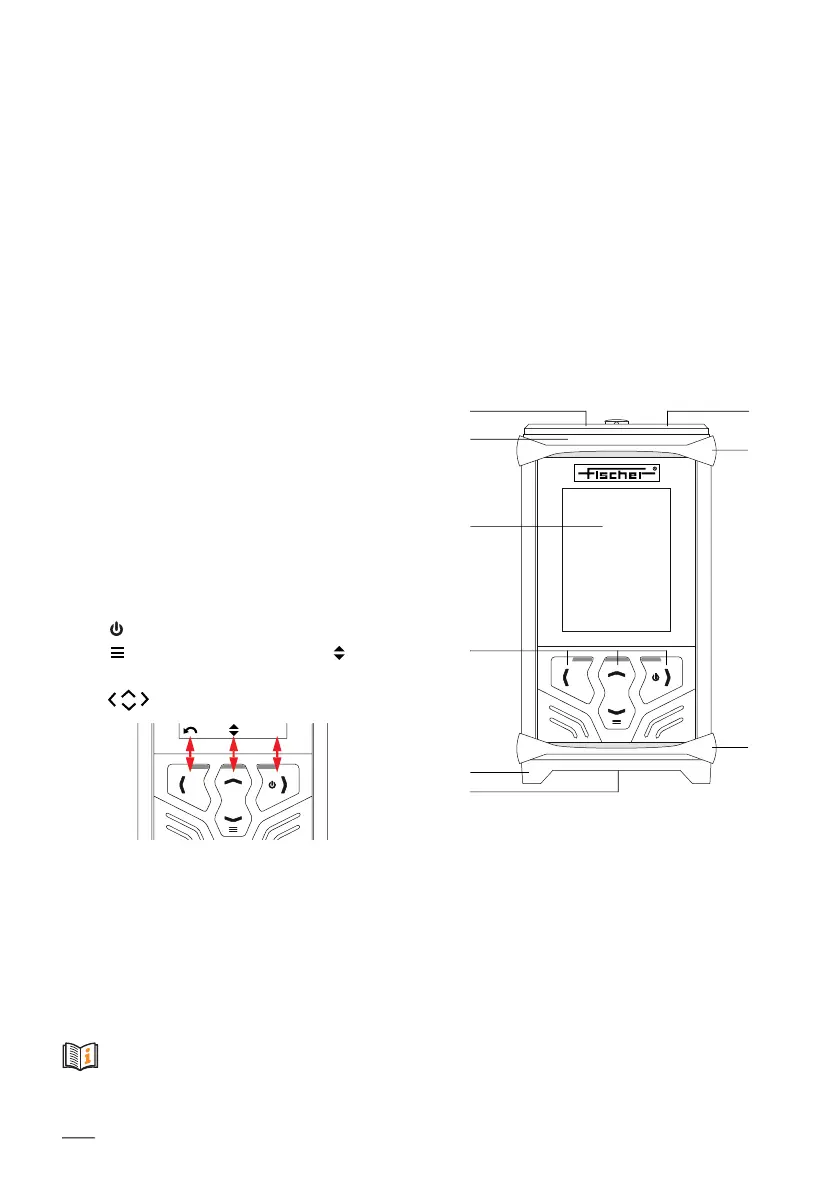

3.2 Gauge
1 Battery compartment lid, Bluetooth in-
terface
2 Light strip for displaying the mea-
sured reading acquisition, specifica-
tion limit violation, battery charge
status
3 Display
4 Operation keys,
: on/off (press for approx. 2 s)
: opens the menu when is not
shown in the bottom line of the display
: navigation and selection keys
The bottom line of the display always shows the function for the keys directly underneath.
The assignment depends on the open page view in the display (example).
5 Gauge foot
6 Probe connection and battery fast charging plug, USB type C
7 USB port, type C, under the sealing tab of the battery cover
8 Shock protection
Gauge dimensions and further properties, see data sheet, from page 17
1
2
3
4
5
6
7
8
8
[ ]
[ ]
