Vital Signs Simulator
Fetal Simulation
29
ProSim 8
Fetal Monitor
Intrauterine
Blood Pressure
Input
Fetal ECG
Input
Maternal Thigh
Reference Plate
Fetal Scalp
Electrode
Jumper
Wires
BP Cable
IBP Channel 1
glh058.eps

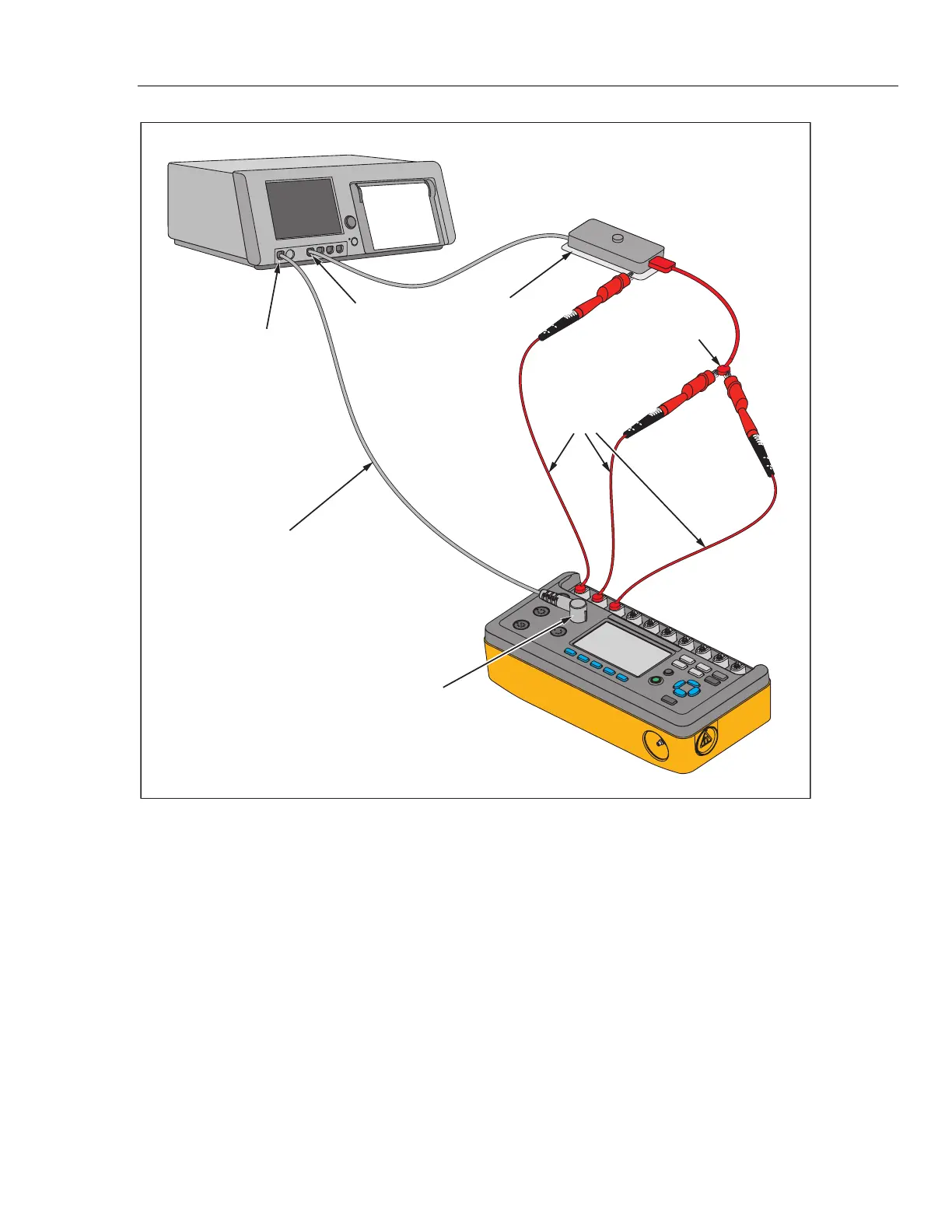

Figure 13. Fetal Monitor Connections for Intrauterine Pressure Simulation
Note
The maternal thigh reference plate is an accessory provided by fetal
monitor OEM, not by Fluke Biomedical, for internal FHR and FECG
recording. The 3-lead leg plate employs a single skin electrode as a
reference, positioned on the mother's thigh.
