To set the chamber:
1. Push or to highlight the Chamber value on Channel 1 or Channel 2.
2. Push .
3. Push or to highlight a value in the chamber list. Below is a list of
chamber values in the Product.
Static Right Ventricle
Arterial Pulmonary Artery
Radial Artery PA Wedge
Left Ventricle Right Atrium (CVP)
Left Atrium
4. Push to set the chamber and go back to the IBP screen.
You must first zero the patient monitor when you connect to a new IBP
transducer or patient simulator. To set a channel to 0 mmHg and Static chamber,
push the Zero Channel 1 or Zero Channel 2 softkey. After you zero the product,
do the zero function on the patient monitor.
To set the pressure:
1. Push or to highlight the Pressure value on Channel 1 or Channel 2.
2. Push .
Systolic and diastolic pressures are set separately.
Note
If the chamber is set to static, only one pressure is set.
3. Push or to highlight the systolic or diastolic pressure value.
4. Push or to increase or decrease the pressure value in 1 mmHg steps.
The range is -10 mmHg to +300 mmHg.
Note
When you hold down the direction key, the step size changes to
10 mmHg until the key is released.
5. Push to set the pressure and go back to the IBP screen.
When the Chamber parameter is set to a value other than Static, the Artifact
parameter is added to the display as shown in Figure 17.

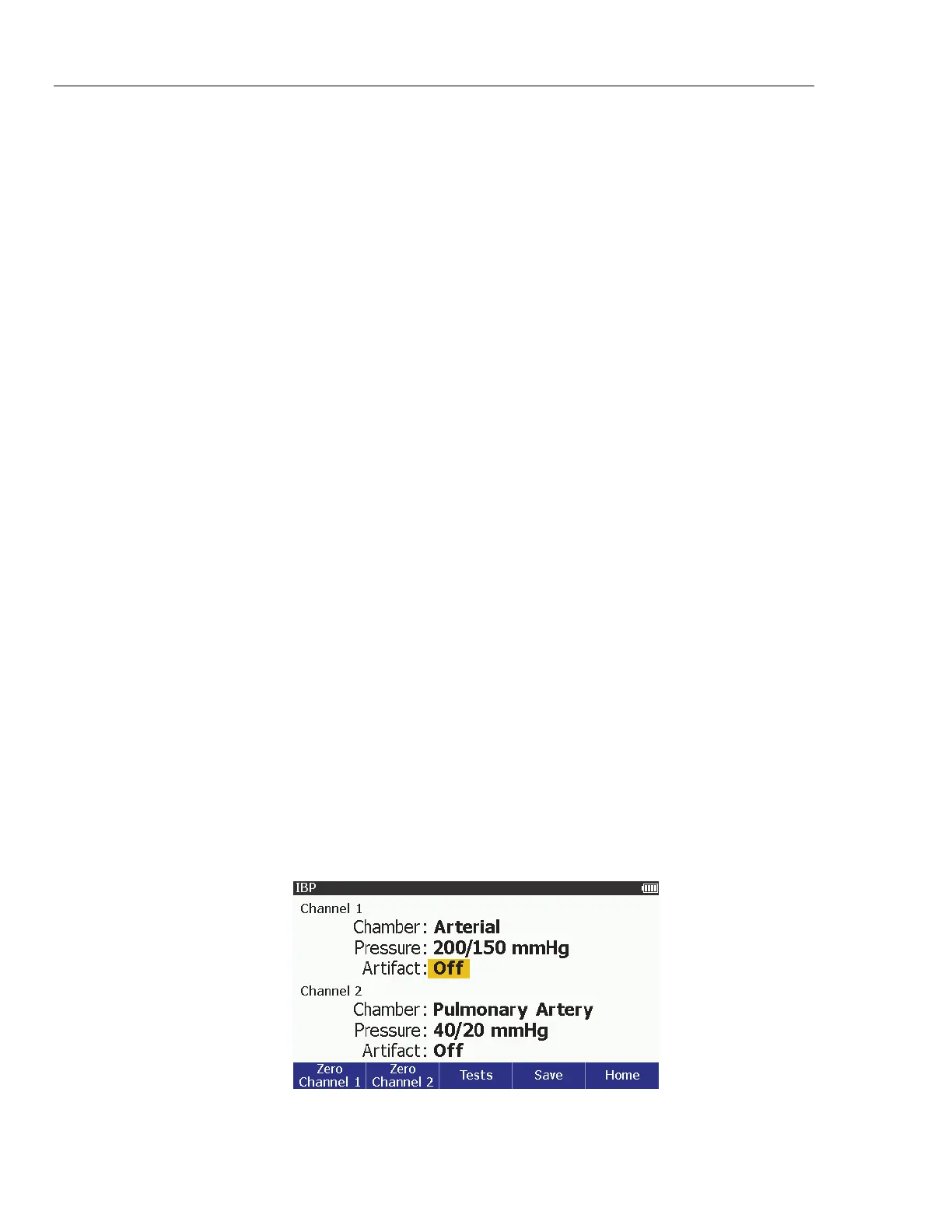

glh051.eps
Figure 17. IBP with Chambers Screen
