6

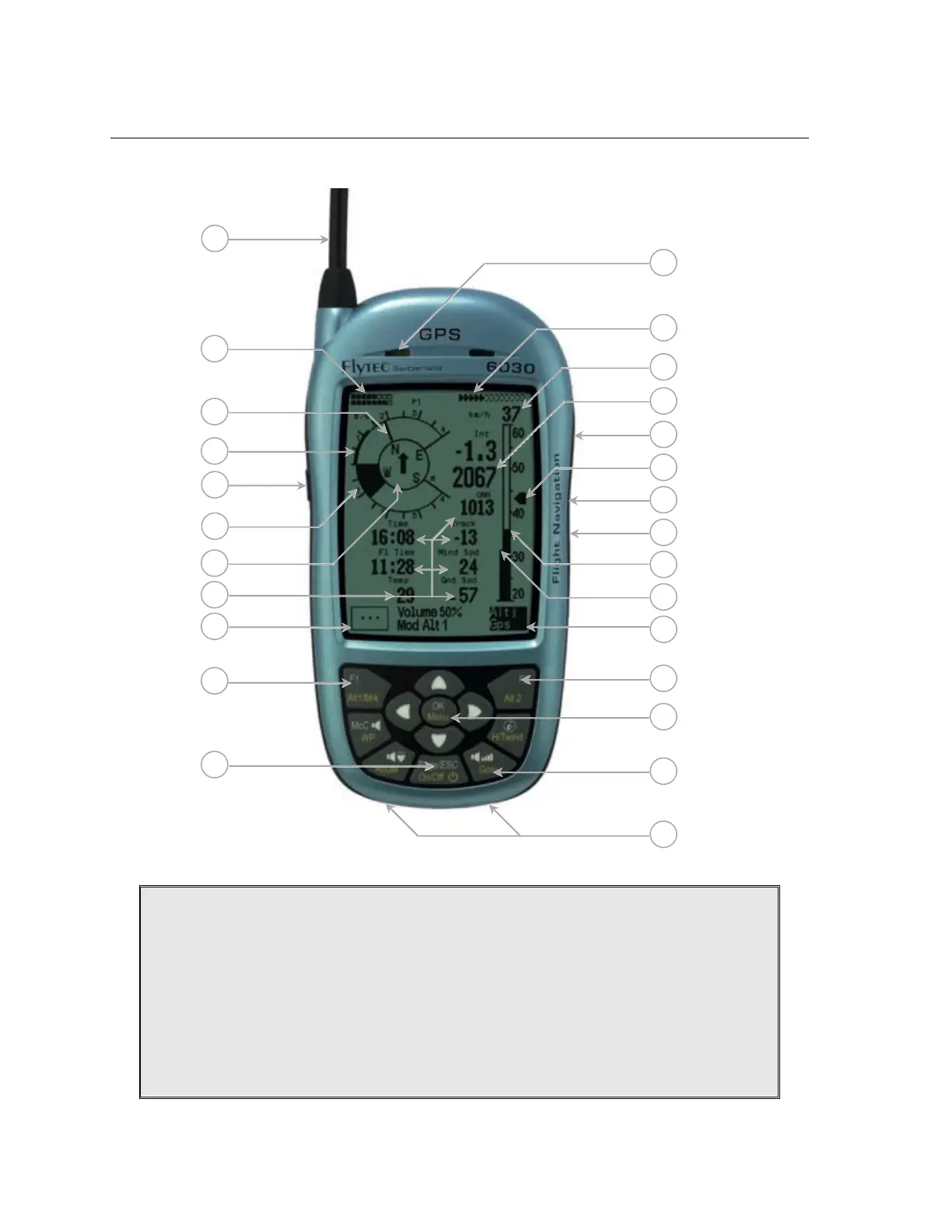

1 Instrument Layout
1
Speaker
14
Volume
2
GPS status
15
Charging status LEDs
3
Digital air speed
16
Power on/off
4
Altimeter 1 (MSL)
17
F1 Key
5
Charger cable jack (under flap)
18
F1 function identifier
6
Best Glide speed indicator
19
User-field
7
SD card slot (under flap)
20
Compass rose
8
USB Port (under flap)
21
Analog variometer
9
Analog air speed indicator
22
External air speed jack (under flap)
10
Stall speed indicator
23
Thermal Average indicator
11
F2 function identifier
24
Active McCready indicator
12
F2 Key
25
Battery status bank 1 and 2
13
OK (accept)/Menu key
26
Pitot tube
26
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
