FOR-A MFR Series User Manual

33

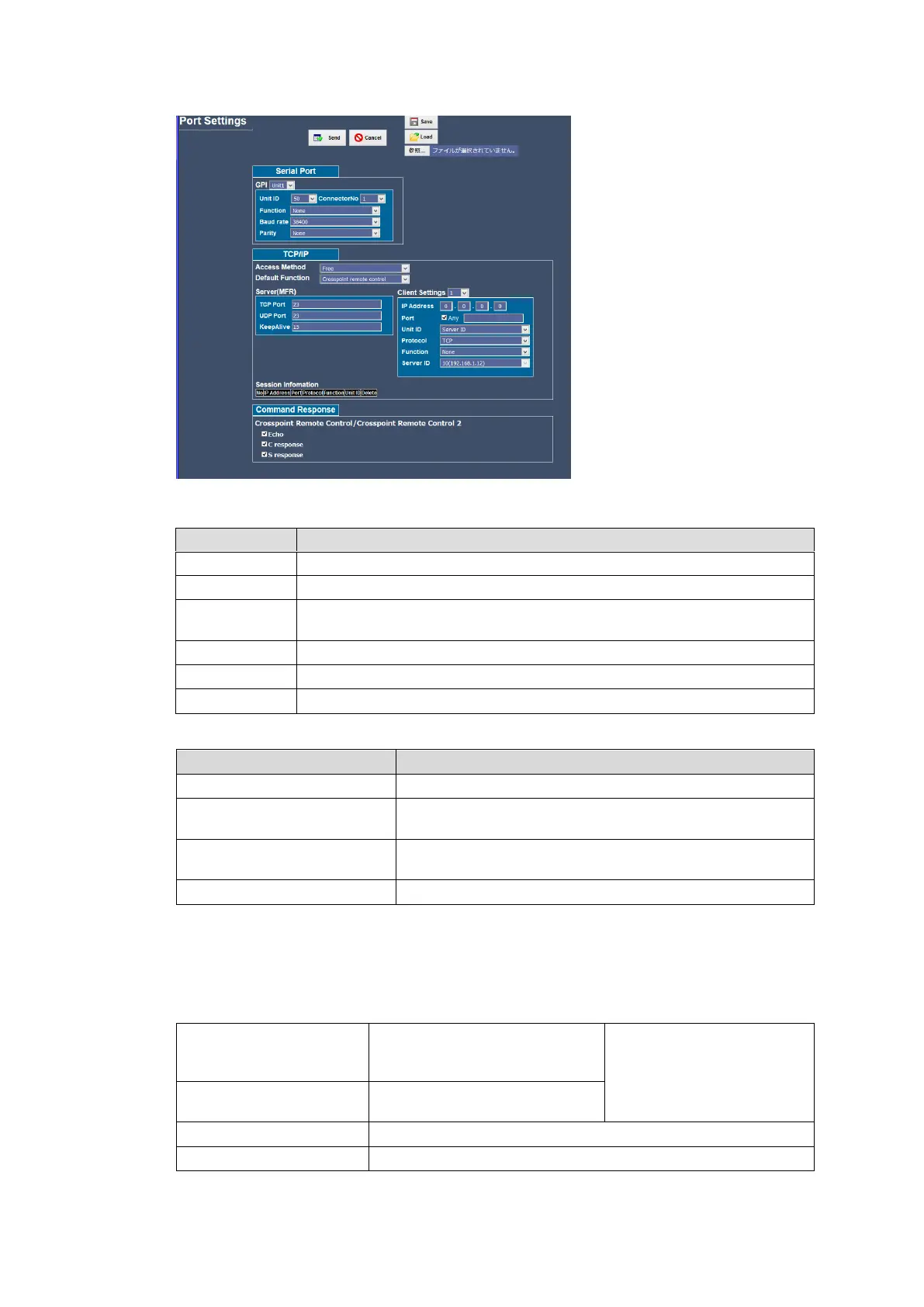

 MFR-1000
 Serial Port
Parameter
Description
CPU1 ID
Allows you to specify the CPU1 ID.
Unit ID
Allows you to specify the Unit ID.
Connector No.
Allows you to specify the connector number for the unit specified under
Unit ID.
Function
Allows you to select the communication protocol. (See the table below.)
Baud rate
Allows you to select the Baud rate.
Parity
Allows you to select the Parity.
Available Protocols
Protocol
Description
Crosspoint remote control
Serial / LAN command protocol via the specified port
* Crosspoint remote control 2
Crosspoint remote control with Channel Name and CPU
Status request commands
* MFR-RULINK connection
Used for MFR-RULINK connection. (Not supported by
MFR-1000.)
* Editor (HVS)
Switcher AUX control protocol (MFR-5000/8000/3000 only)
* Ethernet only
The following protocols are available for serial interfaces only when Tally Control Unit is
set to the Main unit in the MU Settings page. (Not supported by MFR-1000.)
If Main Units are operated in Main Unit Link mode, the following protocols cannot be
assigned to their serial ports.
Router / HVS connection
Used to connect Hanabi series
(except HVS-2000/4000)
switchers.
Either protocol can be
assigned to only one port
on the MU or a GPI unit.
Router / HVS connection
type2
Used to connect
HVS-2000/4000 switchers.
Tally out (TSL Ver. 3.1)
Used to transfer tally data using TSL protocol ver. 3.1.
Tally out (TSL Ver. 4.0)
Used to transfer tally data using TSL protocol ver. 4.0.
