R/L-check / align-
ment
Align the welding circuit resistance (R) and welding circuit inductivity (L) if one of the fol-
lowing components of the welding system is changed:
- Torch hosepacks
- Interconnecting hosepacks
- Grounding cables, welding power-leads
- Wirefeeders
- Welding torches, electrode holders
- PushPull units
Prerequisites for R/L alignment:
The welding system must be complete: closed welding circuit with welding torch and torch
hosepack, wirefeeders, grounding cable, interconnecting hosepacks.
Performing R/L alignment:

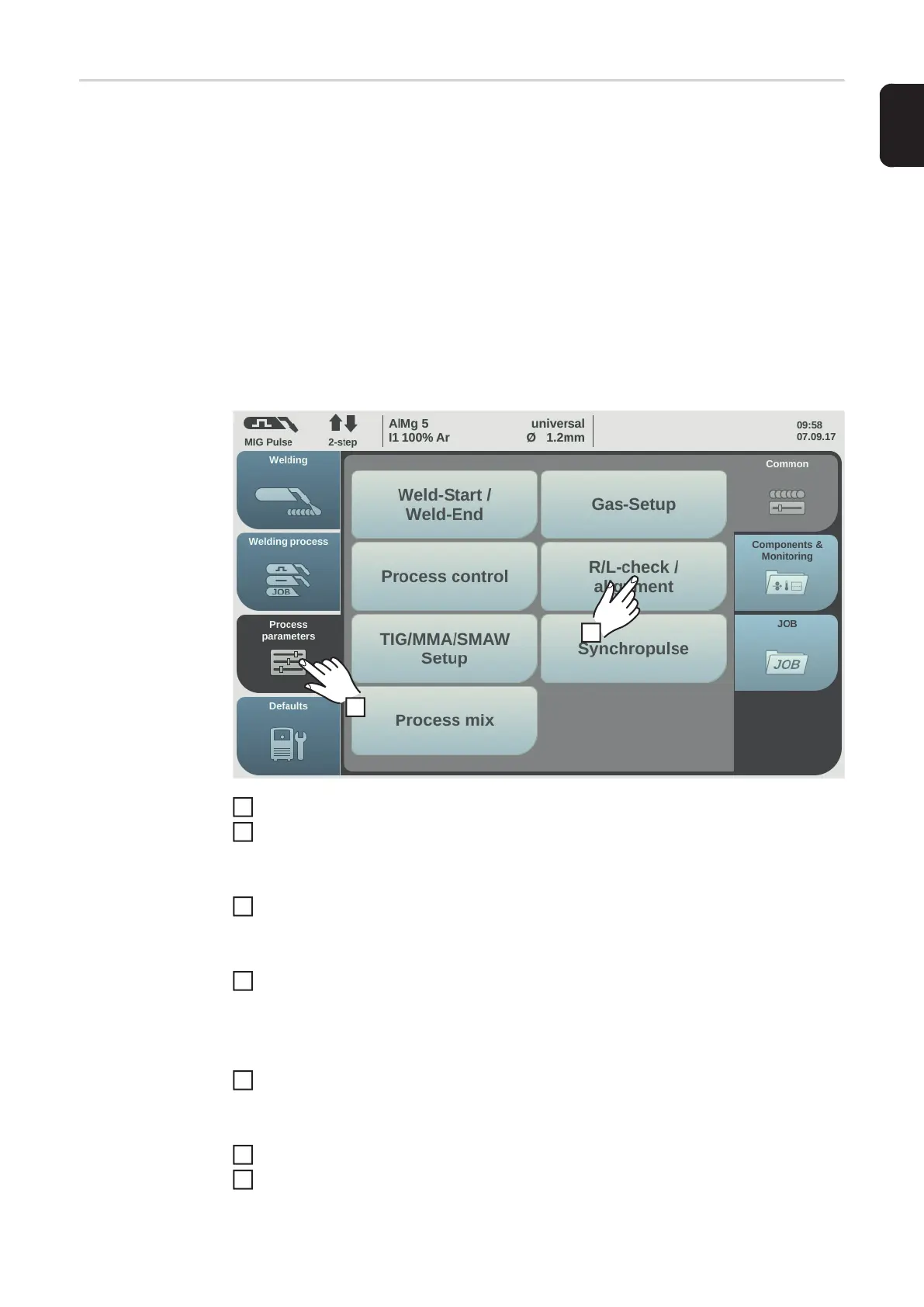

Select "Process parameters"
Select "R/L-check / alignment"
The current welding circuit inductivity and welding circuit resistance values are displayed.
Select "Next" / press the adjusting dial / press the torch trigger
The second step of the R/L alignment wizard appears.
Follow the displayed instructions
IMPORTANT! Contact between the earthing clamp and workpiece must be estab-
lished on a cleaned area of the workpiece.
Select "Next" / press the adjusting dial / press the torch trigger
The third step of the R/L alignment wizard appears.
Follow the displayed instructions
Select "Next" / press the adjusting dial / press the torch trigger
The fourth step of the R/L alignment wizard appears.
