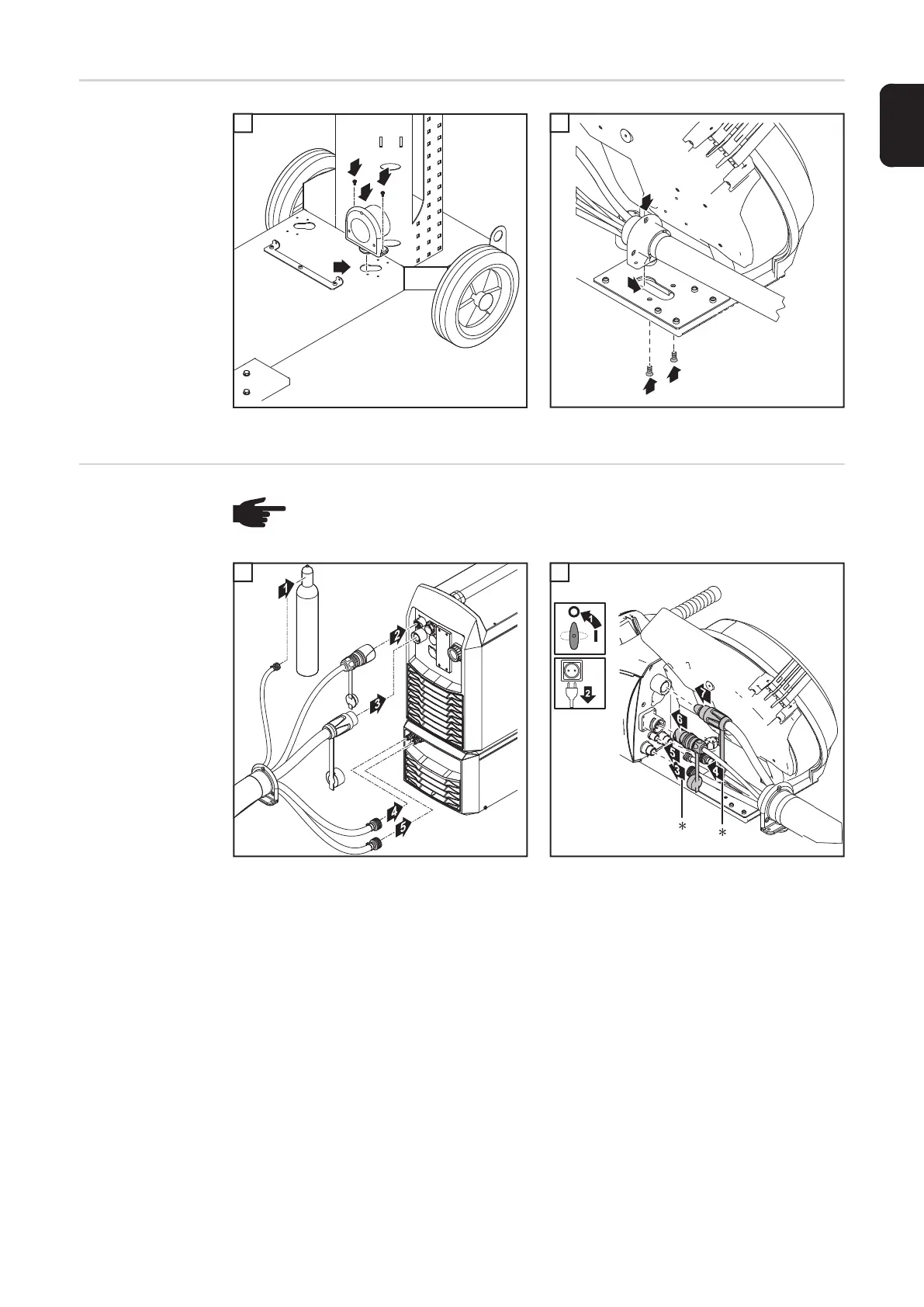

Fixing the strain-
relief device for
the interconnect-
ing hosepack
1
Fixing the strain-relief device to the trolley
2
Fixing the strain-relief device to the wire-feed unit
Connecting the
interconnecting
hosepack
1
Connecting the interconnecting hosepack to the power
source and cooling unit
2
Connecting the interconnecting hosepack to the wire-
feed unit
* (only if coolant connections are installed in the wire-
feed unit and a water-cooled interconnecting hose-
pack is being used)
1
2
3
4
1
2
1
3
4
2
NOTE! There is no cooling unit present in the case of gas-cooled systems. There
is no need to attach the water connections in the case of gas-cooled systems.
1
2
