System expan sio ns
Closing the casing
2
1

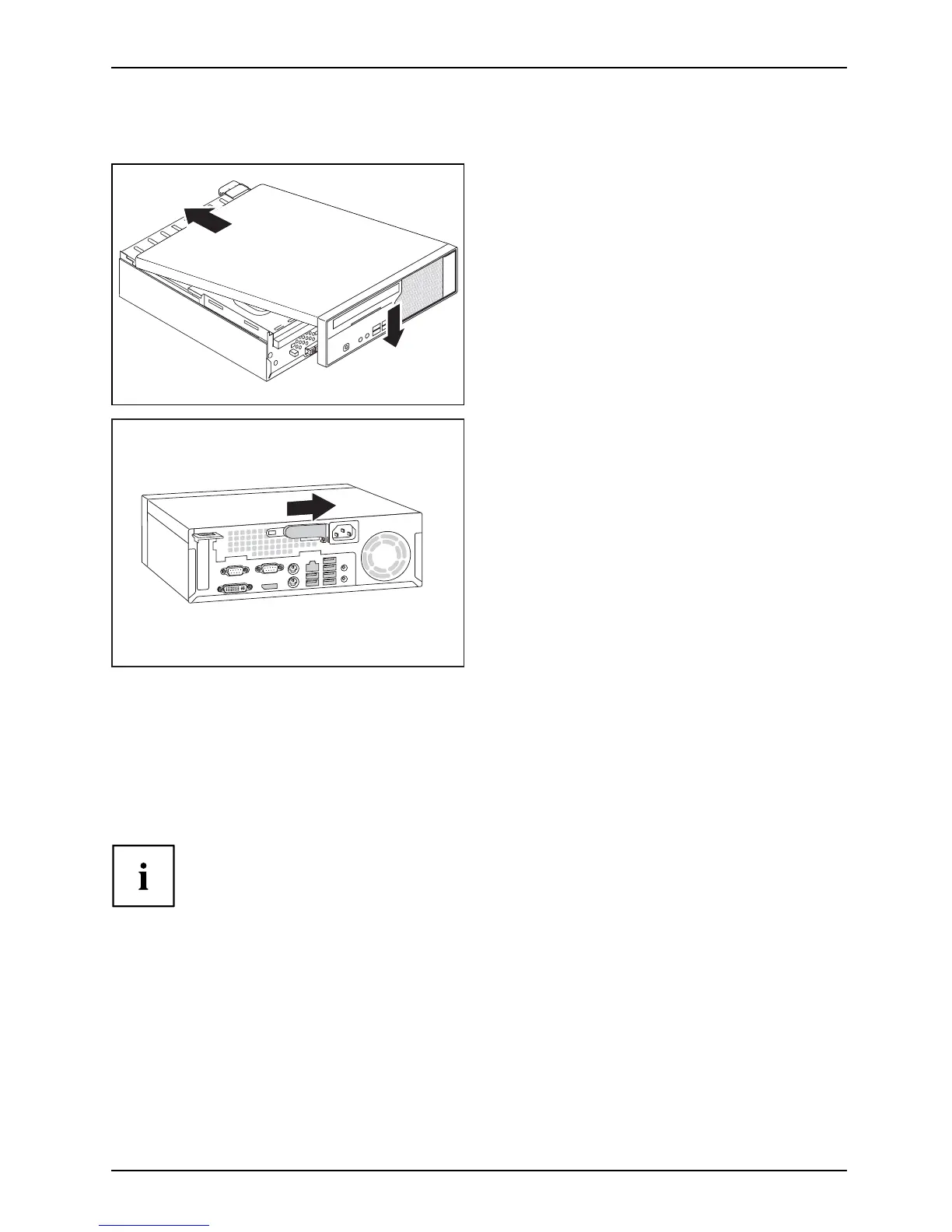

► Position the upper part of the casing from
above in the direction of the arrow (1) onto
the lower part of the casing so that the
distance to the rear edge of the casing
is approximately 20 mm/0.79".
► Push the upper part of the casing in the
direction of the arrow (2) until it engages.
► To lock the casing, push t he sliding
locking mechanism back in the direction
of the arrow until it engages.
► Lock the casing aga in if necessary.
► On devices with a casing lock: Lock
the casing.
► Reconnect the cables that you
disconnected previously.
Overview of the drive bays and drives in your device
The casing
has space for several accessible and non-a ccessible drives:
• one drive b
ay for an accessible 5
1
/
4
inch drive (Slim Line) as well as a SmartCard reader (optional)
• one drive bay for a non-accessible 3
1
/
2
inch drive as well as a compact flash module (optional)
"Accessible drives" are e.g. DVD or CD ROM drives, into w hich a data medium can be
inserted from outside. "Non -acce ssible drives" are for example hard disk drives.
Fujitsu 35
