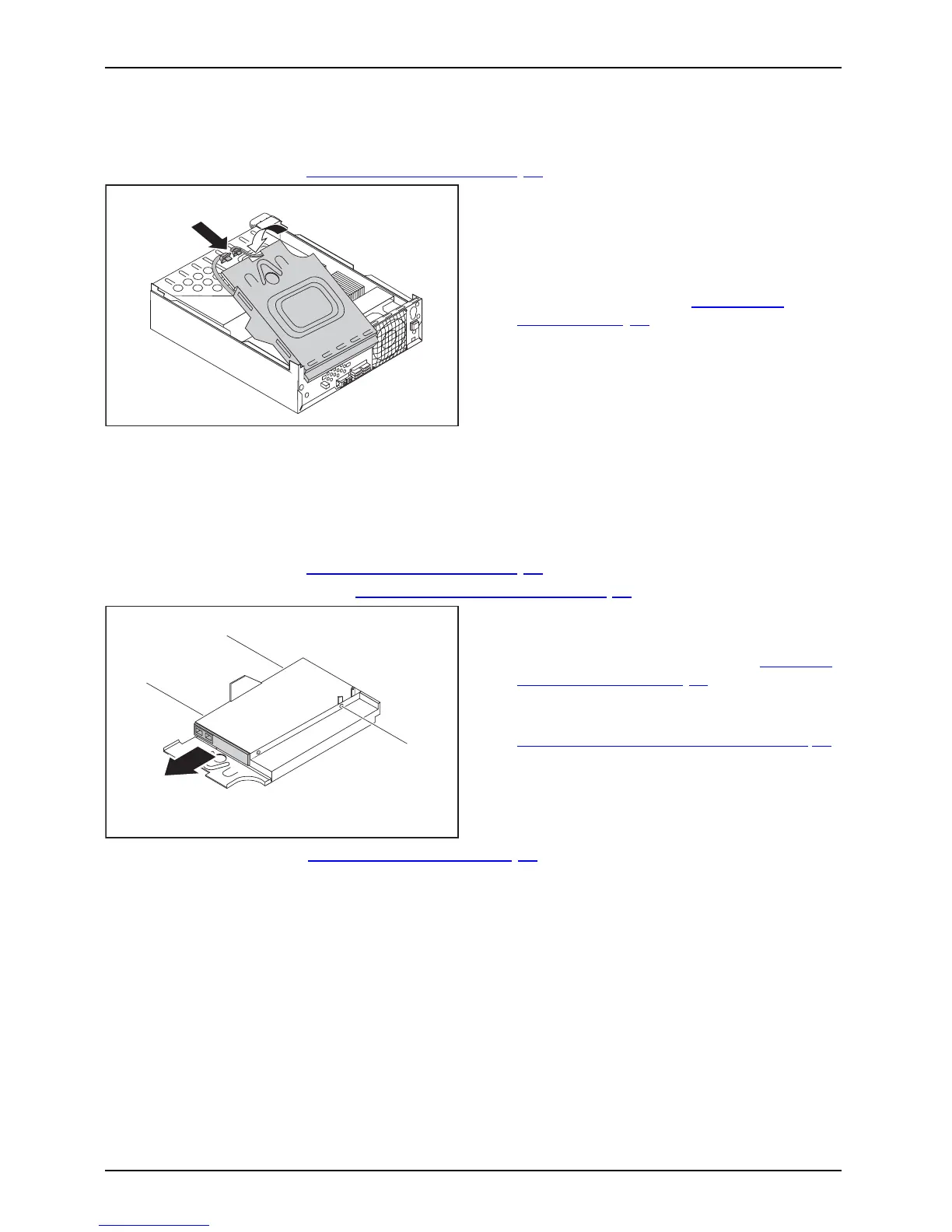

System expansions
Installing the drive cage
Drivecage
O pen the casing (see "Opening th e casing", Page 34).
2
1
Push the drive cage at an ang le into
the c asing mou nts (1).
If a drive is present, connect the connector
of the data and power supply cables (2 ).
Close the d ri ve cage.
Close the casing (see "
Closing the
casing", Page 3 5).
Installing and removing the accessible 5
1
/
4
inch drive
Removing an accessible drive
O pen the casing (s
ee "
Opening the casing", Page 34).
Remove the drive cage (see "
Removing the drive cage", Pa ge 37).
1
1
1
2
Remove the screw
s from the drive cage (1).
Takethedriveoutofthedrivecage(2).
Install the dri
ve cage again (see "
Installing
the drive c age
", Page 38).
If you do not wa nt to install a new drive, you
must ret the plastic drive cover again (see
"
Installing the plastic d rive cover", Page 37).
Close the c
asing (see "
Closing the casing", Page 35).
38 Fujitsu
