System expan sio ns
Removing the WLAN module
► Open the casing (s ee "Open ing the casing", Page 34).
► Remove the drive cage (see "
Removing the drive cage", Page 37).
► Disconnect the USB c able of the WL AN module from the connecto r on t he
mainboard. Refer to the manual for the mainboard .
1
1
2

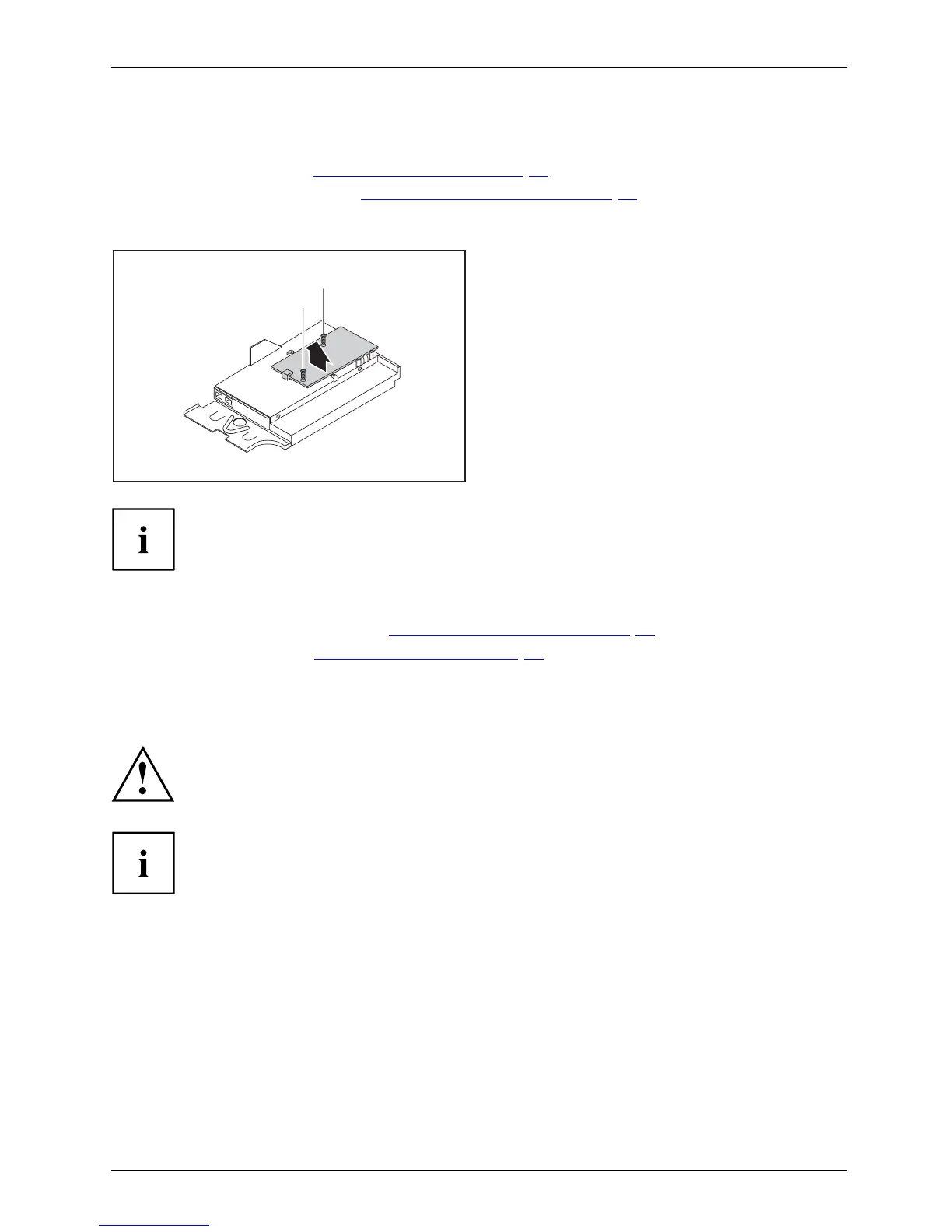

► R e move the screw s (1).
► Pull the WLAN modu le out of the bay (2)
together with the USB cable.
Make sure that you do not scratch the antenna on the front opening of the drive cage.
► Install the drive cage again (see "
Installing the d rive cag e", Page 38).
► Close the casing (see "
Closing the casing", Page 35).
Installing an
d rem oving a board
Please read the section "Notes on boards".
You can only install low-profile boards.
To install a board please follow the steps below.
• Opening the retaining clip for the bo ard
•Instal
ling a board
• Closing the retaining clip
You wi
ll learn more about the individual steps in the following sections.
Fujitsu 47
