System expansions
Removing a drive
► Remove the casing cover (see Chapter "Re moving the casi ng cover", Page 36).
► Fold out the drive cage (see chapter "
Opening the drive cage", Page 47).
► Disconnect any cables connected to th e drive.
3
1
1
2

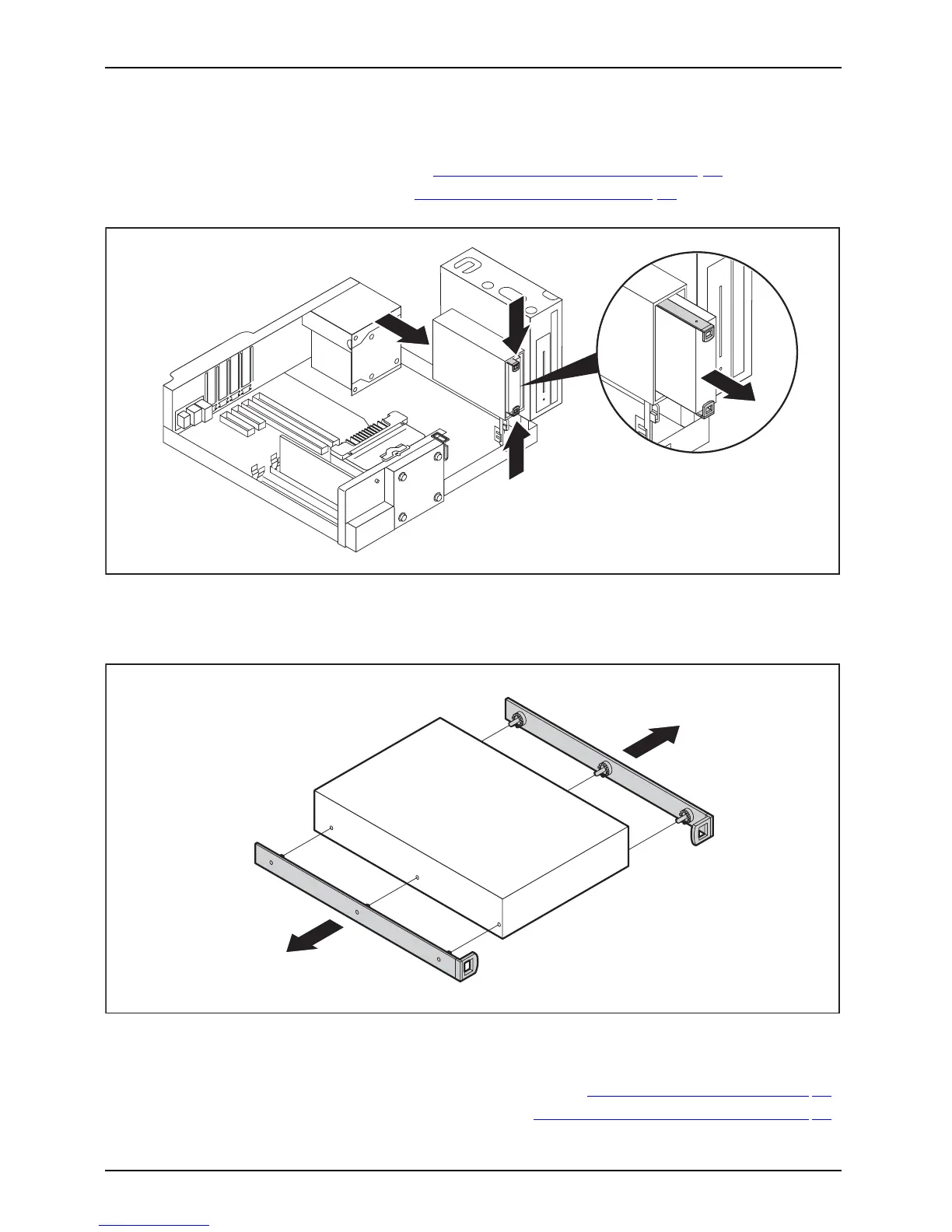

► Slightly press together the EasyChange rails on th e drive (1).
► Push the drive a few centimetres out of the bay in the direction of the arrow (2).
► Pull the drive completely out of the bay in the direction of the arrow (3).
► Pull the EasyChange rails off the drive.
► If y
ou no longer need the EasyChange rails, secure them again in the lower bay.
► Fold the drive cage into the closed position again ( see chap ter "
Closing the drive cage", Page 4 8).
► Fi
t the casing cover back onto the casing (see Chapter "
Reat taching the cas ing cover.", Pag e 37).
