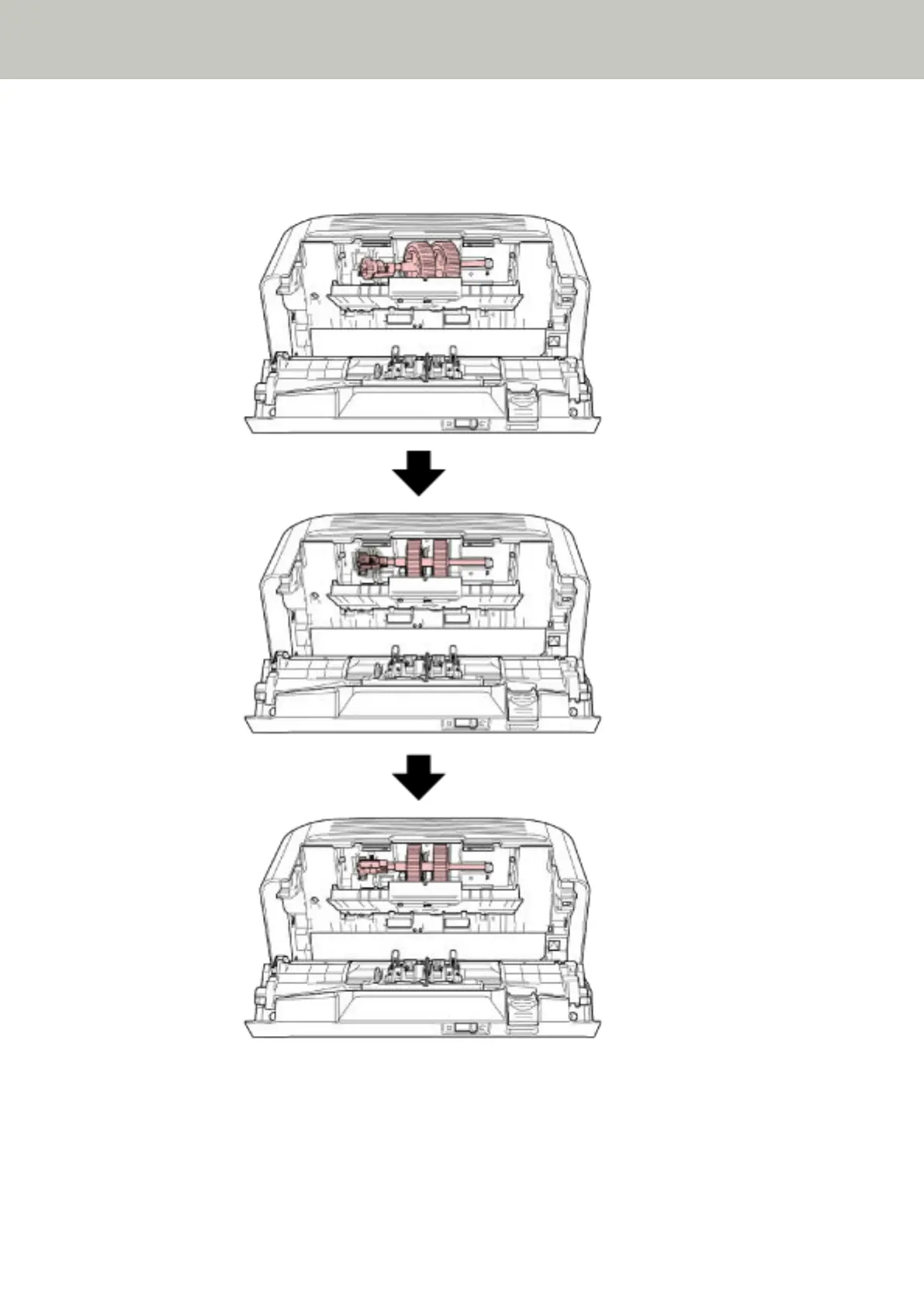

a Hold the bushing on the shaft and insert the other shaft end into the slot on the right
diagonally from the upper left. Lower the shaft end with the bushing to fit the entire shaft in
and rotate the bushing backward until the shaft locks in place.
b Close the sheet guide. Make sure that both ends of the sheet guide are locked firmly.
Replacing the Consumables
137
