BX900 S2 Upgrade and Maintenance Manual 121
Connection blades
I Because of the double width of these connection blades, you must
remove the separating clip between the two slots of a fabric before you
install the connection blade.
Ê Remove the separating clip by pressing the little black lever (see blow-up in
figure 26) to the left and pulling out the separating clip.

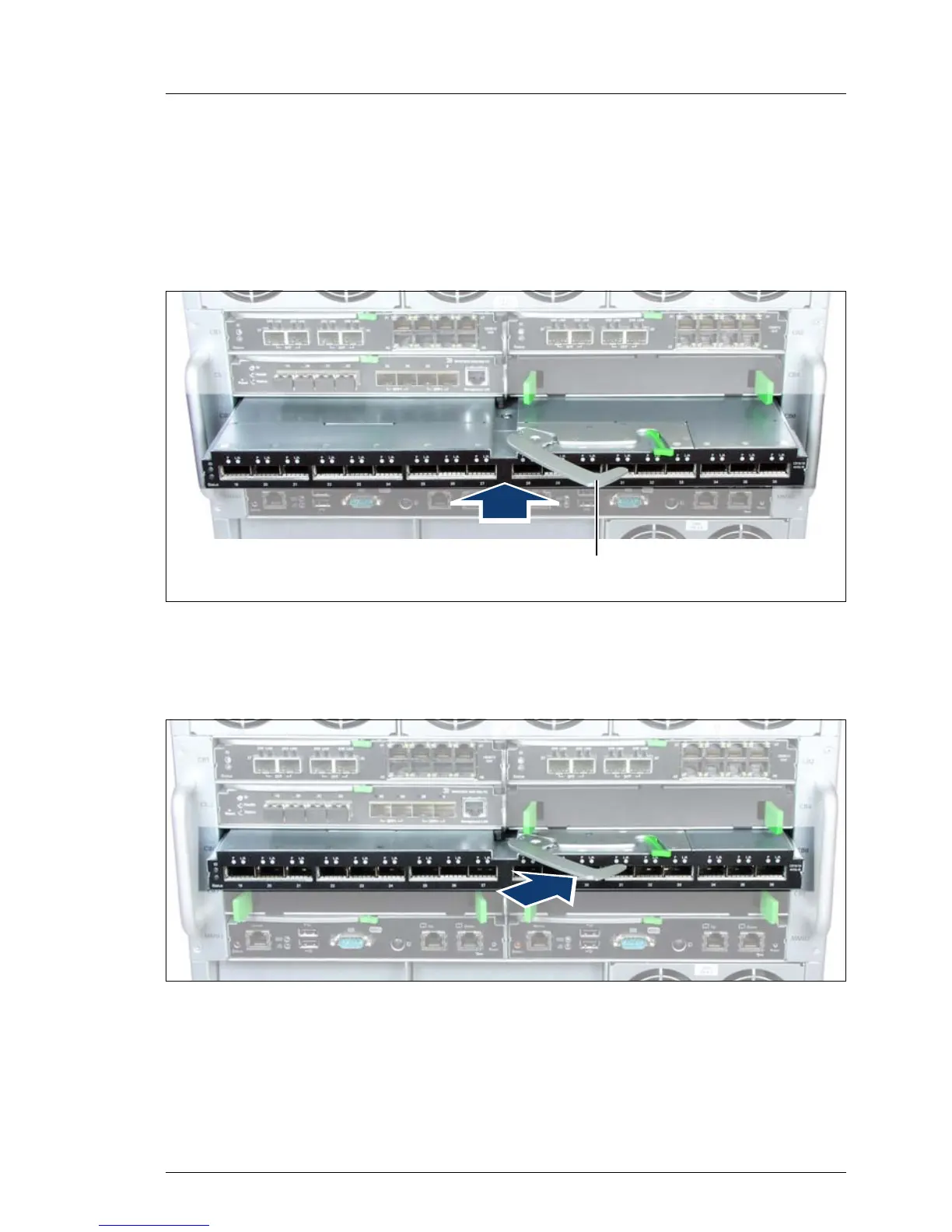

Figure 27: Installing a double-width connection blade
Ê Open the release lever (1) of the connection blade and push it carefully into
the empty fabric.
Figure 28: Locking a double-width connection blade
Ê Push the connection blade into the slot as far as it will go.
Ê Push the release lever in the direction of the arrow until it clicks into place.
1
