138 Upgrade and Maintenance Manual BX900 S2
Connection blades
© cognitas. Gesellschft für Technik-Dokumentation mbH 2011 Pfad: C:\Programme\FCT\tim_app\tim_local\work\WALTER\OBJ_DOKU-13659-001.fm

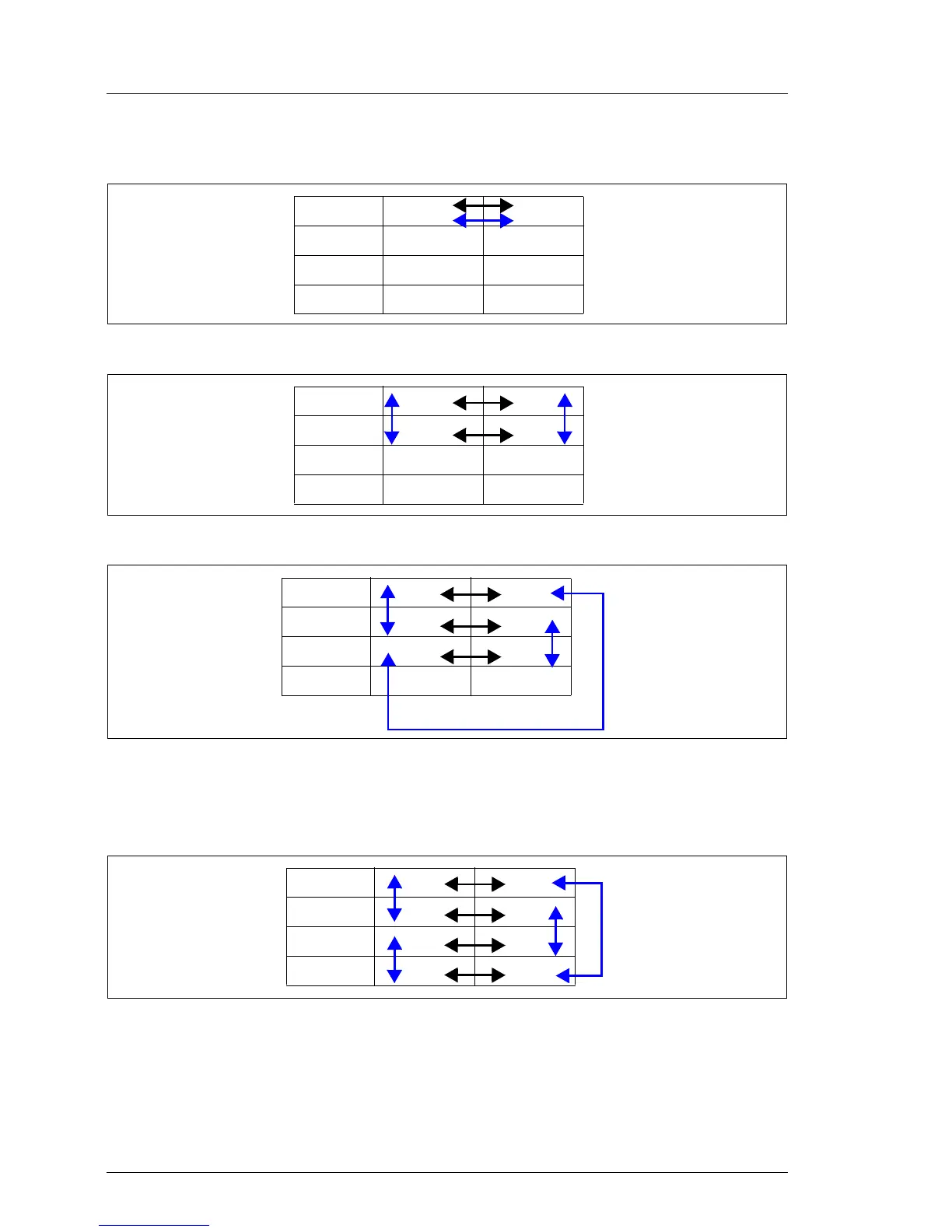

Cable connections within a system unit
Figure 40: Stack with 2 connection blades within a fabric
Figure 41: Stack with 4 connection blades
Figure 42: Stack with 6 connection blades
I Fabric 3 (CB 5/6) may only be fitted with Connection Blades Switch/IBP
36/8+2 if these belong to a stack with other connection blades.
Figure 43: Stack with 8 connection blades
Fabric 1 CB1 CB2
Fabric 2
Fabric 3
Fabric 4
Fabric 1 CB1 CB2
Fabric 2 CB3 CB3
Fabric 3
Fabric 4
Fabric 1 CB1 CB2
Fabric 2 CB3 CB3
Fabric 3 CB5 CB6
Fabric 4
Fabric 1 CB1 CB2
Fabric 2 CB3 CB3
Fabric 3 CB5 CB6
Fabric 4 CB7 CB8
