BX900 S2 Upgrade and Maintenance Manual 153
Local Service Display

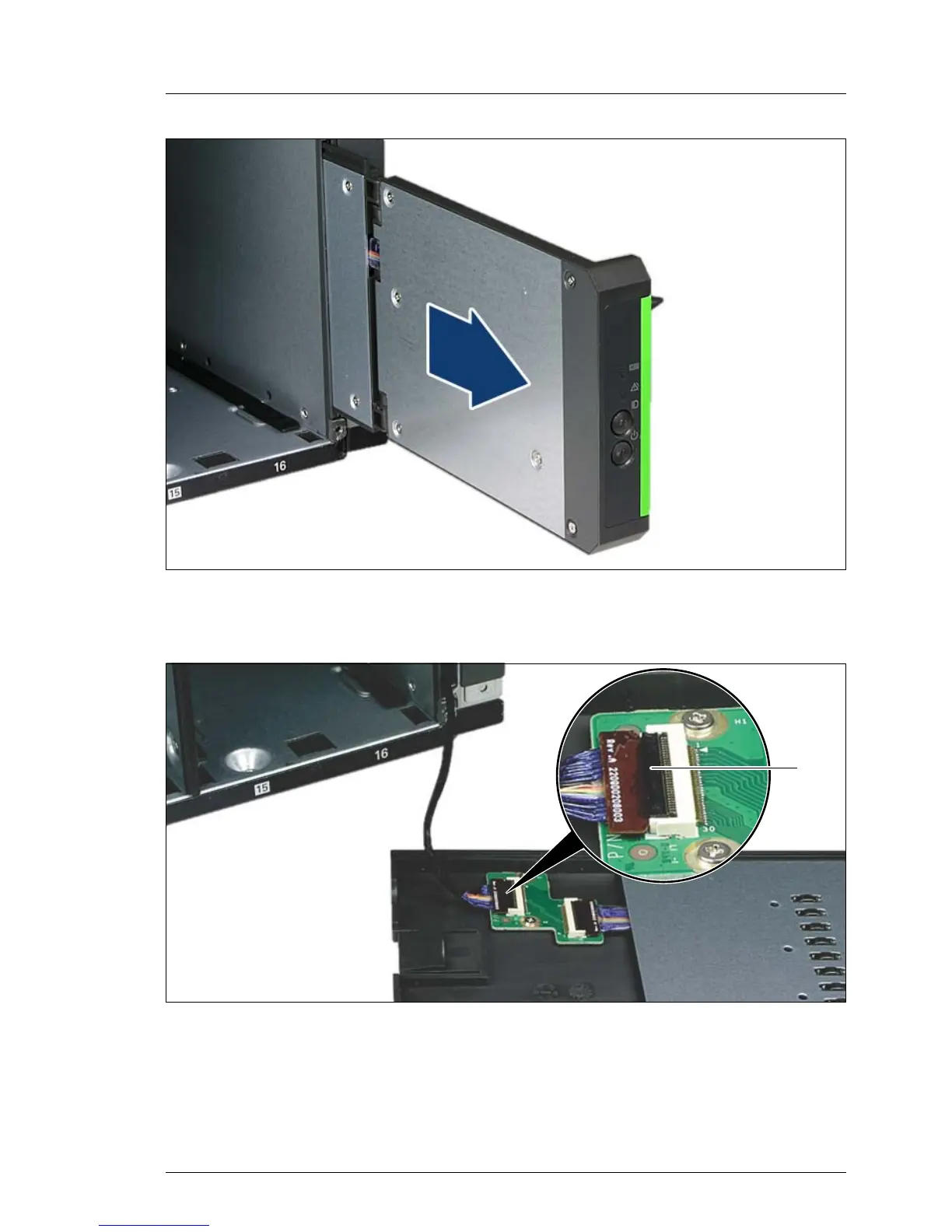

Figure 50: Removing the Local Service Display
Ê Carefully pull the Local Service Display out of the slot.
Figure 51: Disconnecting the connecting cable from the Local Service Display
Ê Slip your fingernail underneath the black clamping bracket (1) and open it
up.
Ê Disconnect the connecting cable for the front docking board from the socket.
/
