162 Upgrade and Maintenance Manual BX900 S2
Front docking board
© cognitas. Gesellschft für Technik-Dokumentation mbH 2011 Pfad: C:\Programme\FCT\tim_app\tim_local\work\WALTER\OBJ_DOKU-13670-001.fm

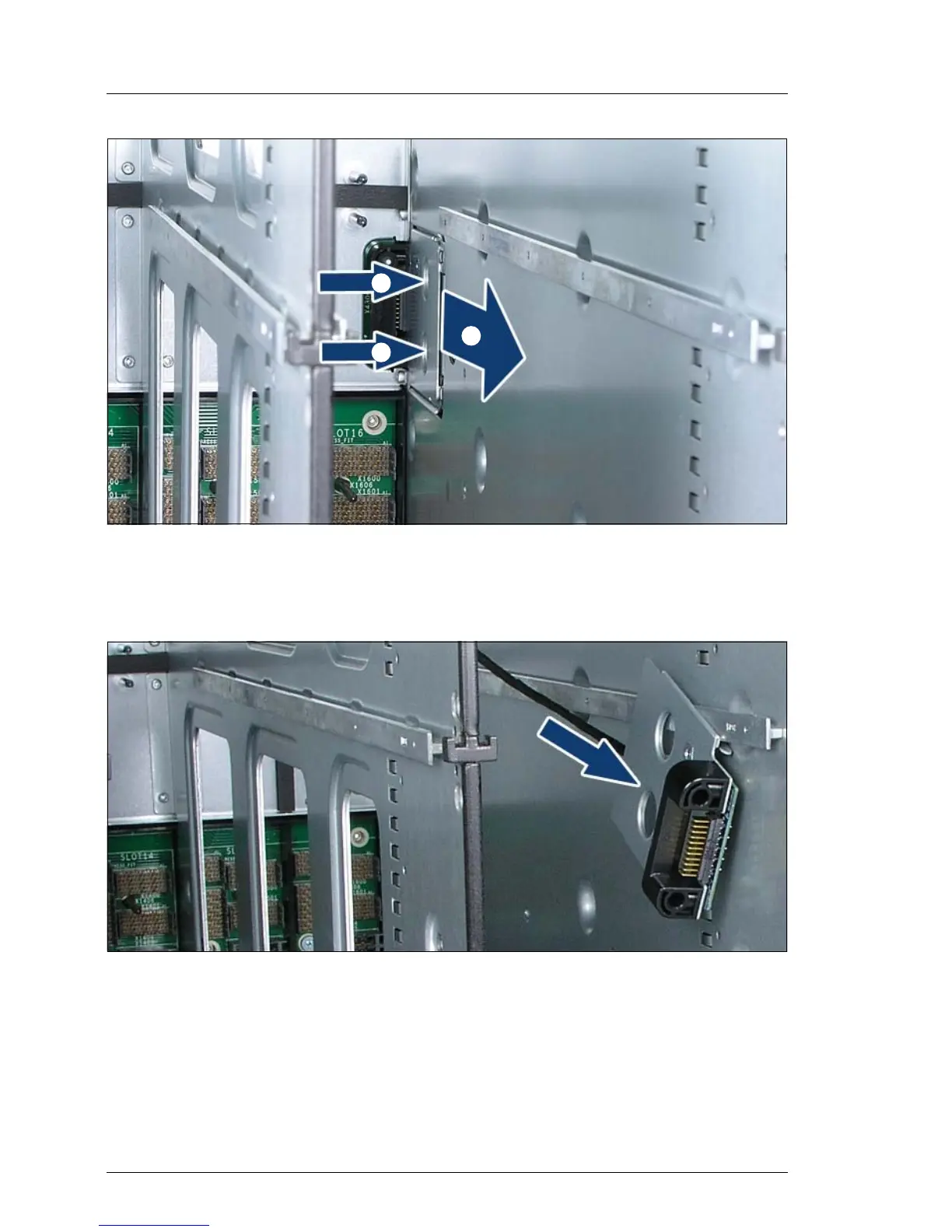

Figure 59: Removing the front docking board
Ê Place your fingers in the round recesses (1) of the front docking board and
carefully remove it from its anchorage (2).
Figure 60: Removing the front docking board from the system unit
Ê Carefully remove the front docking board from the system unit as far as the
LCD cable will allow.
/
/
