6 When installing a low profile card in PCI slot 1, fasten the expansion card and
extension slot cover with the screw.
Use the screw that comes with the extension slot cover.
(This step is unnecessary for installing a full height expansion card.)
7 Insert the expansion card securely into the PCI slot.
 When installing in both PCI slots 1 and 2, insert a card into slot 1 first.

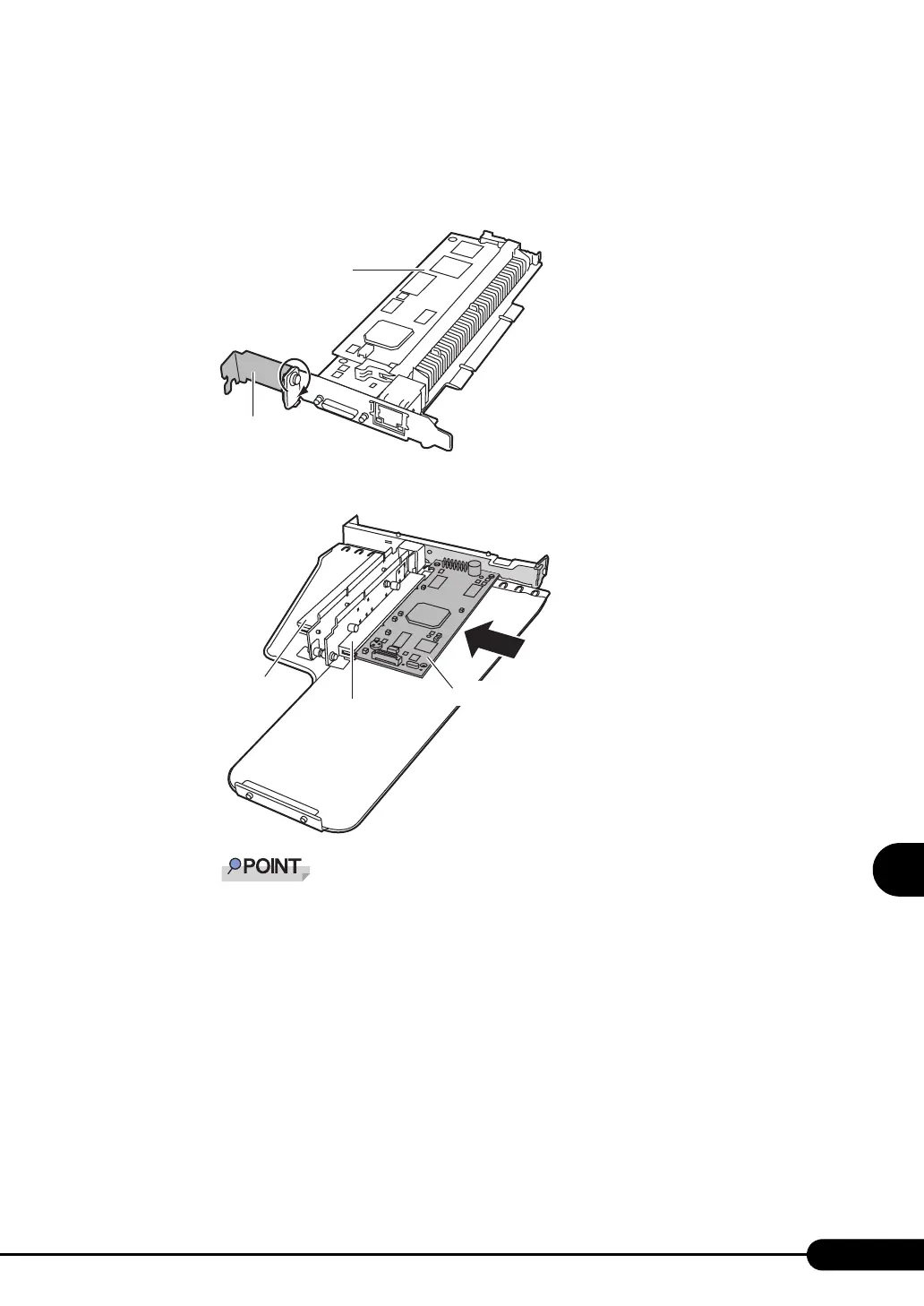

Extension
Slot cover
Expansion Card
(LowProfile)
Expansion Card
PCIslot1
PCIslot2
