Chapter 6 Installing Internal Options
10 Save the BIOS configuration data.
"4.3 Storing the System Configuration Information" (p.84)
6.4.5 How to Install Memory Board 2
This section explains how to add a memory module in optional memory board 2.
1 Turn off the power and all peripheral devices, and pull the server out from the
rack to remove the top cover.
"6.2.1 How to Remove the Top Cover" (p.136)
2 Touch a metal part of the server to discharge static electricity.
3 Remove the fan duct.
"6.2.2 How to Remove the Fan Duct" (p.138)
4 Install/Remove memory modules from memory board 2.
Refer to Step 4 in "6.4.4 How to Install or Remove Memory Modules" (p.150)
5 Install memory board 2 in memory board slot 2.
6 Attach the fan duct.
" How to attach the fan duct" (p.138)
7 Attach the top cover and push the server back into the rack.
" How to attach the top cover" (p.137)
8 Initialize the Extended System Configuration Data (ESCD).
Set [Reset Configuration Data] to [Yes] in the [Advanced] menu of the BIOS Setup Utility.
"7.2.5 Advanced Menu" (p.190)

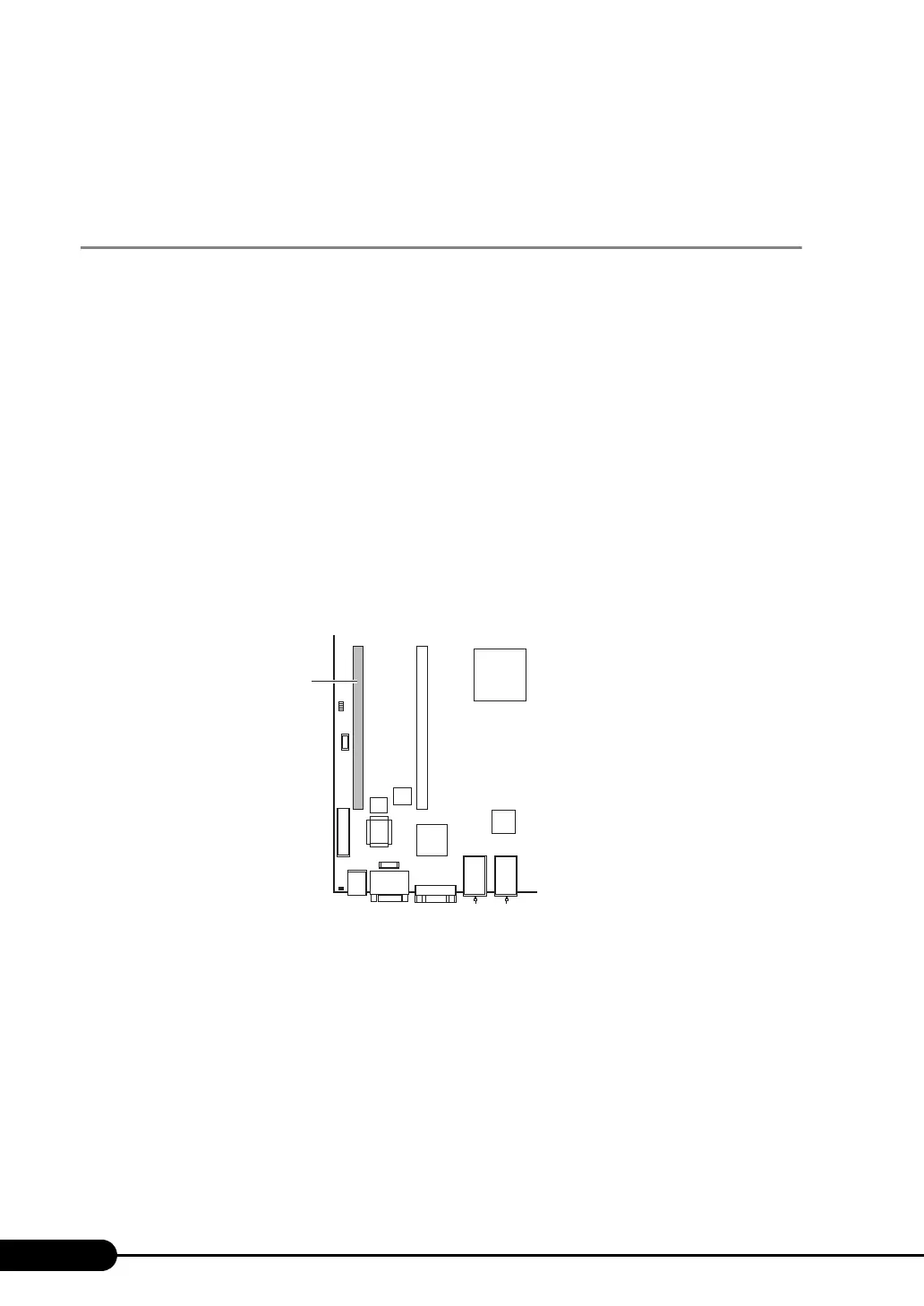

Memory board slot 2
[Rear]
